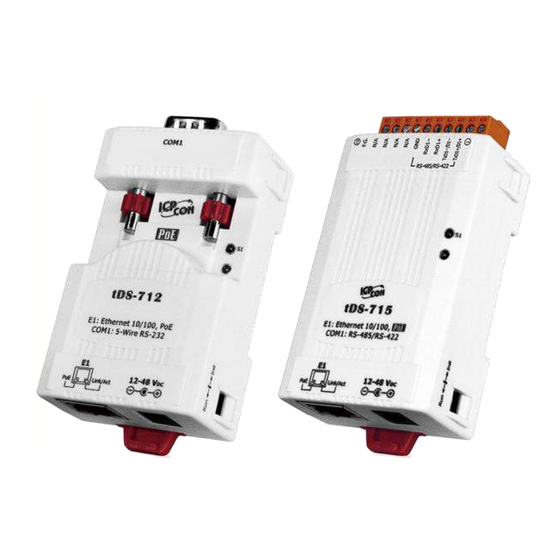

ICP DAS USA tDS-722 User Manual

Tiny serial-to-ethernet device server tds-700 series
Hide thumbs Also See for tDS-722:
Table of Contents

Advertisement

Quick Links

tDS-700 Series
User Manual
Tiny Serial-to-Ethernet Device Server
W
ARRANTY
All products manufactured by ICP DAS are warranted
against defective materials for a period of one year
from the date of delivery to the original purchaser.
W
ARNING
ICP DAS assumes no liability for damages consequent
to the use of this product. ICP DAS reserves the right
to change this manual at any time without notice. The
information furnished by ICP DAS is believed to be
accurate and reliable. However, no responsibility is
assumed by ICP DAS for its use, nor for any
infringements of patents or other rights of third
parties resulting from its use.
C
OPYRIGHT
Copyright © 2016 by ICP DAS. All rights are reserved.
T
RADEMARKS
Names are used for identification purposes only and
may be registered trademarks of their respective
companies.
C
U
ONTACT
S
If you have any questions, please feel free to contact
us via email at:
service@icpdas.com, service.icpdas@gmail.com
Ver.1.9.1
S
UPPORT
This manual relates to the following modules:
tDS-712, tDS-722, tDS-732
tDS-715, tDS-725, tDS735
tDS-718, tDS-724, tDS-734
tDS-712i, tDS-722i, tDS-732i
tDS-715i, tDS-725i, tDS735i
tDS-718i, tDS-724i, tDS-734i
tDSM-712

Advertisement

Table of Contents
loading

Related Manuals for ICP DAS USA tDS-722

Summary of Contents for ICP DAS USA tDS-722

  • Page 1 All products manufactured by ICP DAS are warranted This manual relates to the following modules: against defective materials for a period of one year tDS-712, tDS-722, tDS-732 from the date of delivery to the original purchaser. tDS-715, tDS-725, tDS735 tDS-718, tDS-724, tDS-734...

  • Page 2: Table Of Contents

    2.5.1 tDS-700 Series Module ............................. 16 2.5.2 CA-002 Cable ..............................17 SSIGNMENTS .............................. 18 2.6.1 tDS-712/tDS-712i/tDSM-712 .......................... 18 2.6.2 tDS-722/tDS-722i ............................18 2.6.3 tDS-732/tDS-732i ............................19 2.6.4 tDS-715/tDS-715i ............................19 2.6.5 tDS-725/tDS-725i ............................20 2.6.6 tDS-735/tDS-735i ............................20 2.6.7 tDS-718/tDS-718i ............................21 2.6.8 tDS-724/tDS-724i ............................
  • Page 3 Tiny Serial-to-Ethernet Device Server 4.3.3 Restore Factory Defaults ..........................41 4.3.4 Remote Firmware Update .......................... 43 ERIAL ............................. 44 4.4.1 Port1 Settings ............................. 44 ILTER ..............................47 4.5.1 Accessible IP (filter is disabled when all zero) ..................47 ONITOR ..............................49 HANGE ASSWORD ............................

  • Page 4: Packing List

    Tiny Serial-to-Ethernet Device Server Packing List The shipping package includes the following items: CA-002 Cable Quick Start Software CD tDS-700/tDS-700i/tDSM-700 Series If any of these items are missing or damaged, please contact the local distributor for more information. Save the shipping materials and cartons in case you need to ship the Note module in the future.

  • Page 5: Introduction

    Tiny Serial-to-Ethernet Device Server 1. Introduction The tDS-700 is a series of Serial-to-Ethernet device servers that are designed to add Ethernet and Internet connectivity to any RS-232 and RS-422/485 device, and to eliminate the cable length limitation of legacy serial communications. By using the VxComm Driver/Utility, the built-in COM Port of the tDS-700 series can be virtualized to a standard PC COM Port in Windows.
  • Page 6 Tiny Serial-to-Ethernet Device Server In harsh industrial environments, the tDS-700 series (for i version) also adds 2500 V and +/- 4 kV ESD protection component that diverts the potentially damaging charge away from sensitive circuit to protects the module and equipment from the sudden and momentary electric current. To achieve maximum space savings, the tDS-700 is offered in an amazingly small form-factor that enables it to be easily installed anywhere, even directly attached to a serial device or embedded into a machine.

  • Page 7: Ethernet Solutions

    Tiny Serial-to-Ethernet Device Server 1.1 Ethernet Solutions Nowadays, the Ethernet protocol has become the foremost standard for local area networks. Connectivity via the Internet is now common in many of the latest applications from home appliances, to vending machines, to testing equipment, to UPS, etc. An Ethernet network can link office automation and industrial control networks, access remote systems and share data and information between machines from multiple vendors, and also provides a cost-effective solution for industrial control networks.

  • Page 8: Vxcomm Technology

    Tiny Serial-to-Ethernet Device Server 1.2 VxComm Technology In general, writing a TCP/IP program is more difficult than writing a COM Port program. Another issue is that perhaps the existing the COM Port communication system was built many years ago and is now outdated. As a result, a new technology, VxComm was developed to virtualize the COM Ports of the tDS-700 to allow up to 256 COM Ports to be used on a central computer.
  • Page 9 Tiny Serial-to-Ethernet Device Server The VxComm driver controls all the details of the Ethernet TCP/IP programming technique, meaning that, with the assistance of tDS-700 and VxComm technology, your COM Port program will be able to access your serial devices through the Ethernet in the same way as through a COM Port. Copyright ©...

  • Page 10: Web Server Technology

    Tiny Serial-to-Ethernet Device Server 1.3 Web Server Technology Web server technology enables the tDS-700 to be configured via a standard web browser interface, e.g. Google Chrome, Internet Explorer, or Firefox, etc. This means that it is easy to check the configuration of the tDS-700 via an Ethernet network without needing to install any other software tools, thereby reducing the learning curve required for maintaining the device.

  • Page 11: Hardware Information

    2. Hardware Information This chapter provides a detailed description of the front panel, the hardware specifications, the pin assignments, the wiring notes and the dimensions for the tDS-700 series modules. 2.1 Specifications Model tDS-712 tDSM- tDS-722 tDS-732 tDS-715 tDS-725 tDS-735 tDS-718 tDS-724...

  • Page 12: Features

    Tiny Serial-to-Ethernet Device Server 2.2 Features  Incorporates any RS-232/422/485 serial device in Ethernet  Data transmission via Virtual COM or raw TCP connection  VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7/8/10  Max. connections: 1 socket per serial port is suggested ...

  • Page 13: Selection Guide

    Baud Non- Ethernet COM1 COM2 COM3 Rate Isolated Case Isolated tDS-712 tDS-712i Plastic 5-wire RS-232 tDSM-712 Metal tDS-722 tDS-722i Plastic 5-wire RS-232 5-wire RS-232 tDS-732 tDS-732i Plastic 3-wire RS-232 3-wire RS-232 3-wire RS-232 2-wire RS-485 tDS-715 tDS-715i Plastic 4-wire RS-422...

  • Page 14: Appearance

    Tiny Serial-to-Ethernet Device Server 2.4 Appearance Robust Insulated and Fire-retardant Case Front View Serial COM Ports  The number of serial COM Ports available depends on the type of tDS-700 series module. For more detailed information  regarding the pin assignments for the Serial COM ports, refer to Section 2.6 Pin ...
  • Page 15 Tiny Serial-to-Ethernet Device Server +12 to +48 V Jack: The tDS-700 is equipped with a +12 V to +48 V jack that can be used to connect a power supply. If no PoE switch is available on site, a DC adapter can be used to power the tDS-700 module.

  • Page 16: Dimensions

    Tiny Serial-to-Ethernet Device Server 2.5 Dimensions The following diagrams provide the dimensions of the tDS-700 series module and CA-002 cable that can be used as a reference when defining the specifications and the DC power supply plug for any custom enclosures. All dimensions are in millimeters. 2.5.1 tDS-700 Series Module ...

  • Page 17: Ca-002 Cable

    Tiny Serial-to-Ethernet Device Server  tDS-722/722i/732/732i/715/715i/725/725i/735/735i/718/718i/724/724i/734/734i: 2.5.2 CA-002 Cable Note: Cable color: BLACK Pin Assignment DESCRIPTION UNIT UL2464 18AWG 2C(RED/BLACK) 0D5.0 COLOR BLACK OPEN DC PLUG 5.5*2.1 BLACK OPEN PVC:45/P BLACK Copyright © 2016 ICP DAS CO., Ltd. All Rights Reserved.

  • Page 18: Pin Assignments

    2.6 Pin Assignments 2.6.1 tDS-712/tDS-712i/tDSM-712 tDS-712/tDSM-712 tDS-712i Terminal No. Pin Assignment COM1 CTS1 CTS1 RTS1 RTS1 ISO.GND TxD1 TxD1 RxD1 RxD1 2.6.2 tDS-722/tDS-722i tDS-722 tDS-722i Terminal No. Pin Assignment F.G. F.G. CTS2 CTS2 RTS2 RTS2 COM2 RxD2 RxD2 TxD2 TxD2 ISO.GND...

  • Page 19: Tds-732/Tds-732I

    Tiny Serial-to-Ethernet Device Server 2.6.3 tDS-732/tDS-732i tDS-732 tDS-732i Terminal No. Pin Assignment F.G. F.G. ISO.GND COM3 RxD3 RxD3 TxD3 TxD3 ISO.GND COM2 RxD2 RxD2 TxD2 TxD2 ISO.GND COM1 RxD1 RxD1 TxD1 TxD1 2.6.4 tDS-715/tDS-715i tDS-715 tDS-715i Terminal No. Pin Assignment F.G.

  • Page 20: Tds-725/Tds-725I

    Tiny Serial-to-Ethernet Device Server 2.6.5 tDS-725/tDS-725i tDS-725 tDS-725i Terminal No. Pin Assignment F.G. F.G. ISO.GND COM2 ISO.GND COM1 2.6.6 tDS-735/tDS-735i tDS-735 tDS-735i Terminal No. Pin Assignment F.G. F.G. ISO.GND COM3 ISO.GND COM2 ISO.GND COM1 Copyright © 2016 ICP DAS CO., Ltd. All Rights Reserved. - 20 -...

  • Page 21: Tds-718/Tds-718I

    Tiny Serial-to-Ethernet Device Server 2.6.7 tDS-718/tDS-718i tDS-718 tDS-718i Terminal No. Pin Assignment F.G. F.G. ISO.GND RS-232 RxD1 RxD1 TxD1 TxD1 ISO.GND RxD1- RxD1- RS-485/RS-422 RxD1+ RxD1+ TxD1-/D1- TxD1-/D1- TxD1/D1+ TxD1/D1+ 2.6.8 tDS-724/tDS-724i tDS-724 tDS-724i Terminal No. Pin Assignment F.G. F.G. ISO.GND CTS2 CTS2...

  • Page 22: Tds-734/Tds-734I

    Tiny Serial-to-Ethernet Device Server 2.6.9 tDS-734/tDS-734i tDS-734 tDS-734i Terminal No. Pin Assignment F.G. F.G. ISO.GND COM3 RxD3 RxD3 TxD3 TxD3 ISO.GND COM2 RxD2 RxD2 TxD2 TxD2 ISO.GND COM1 Copyright © 2016 ICP DAS CO., Ltd. All Rights Reserved. - 22 -...

  • Page 23: Wiring Notes For Rs-232/485/422 Interfaces

    Tiny Serial-to-Ethernet Device Server 2.7 Wiring Notes for RS-232/485/422 Interfaces 2.7.1 RS-232 Wiring FGND is the frame ground that is soldered to the metal shield on the DB-9 cable. Note Copyright © 2016 ICP DAS CO., Ltd. All Rights Reserved. - 23 -...

  • Page 24: Rs-422 Wiring

    Tiny Serial-to-Ethernet Device Server 2.7.2 RS-422 Wiring 2.7.3 RS-485 Wiring 1. Usually, you have to connect all signal grounds of RS-422/485 devices together to reduce common-mode voltage between devices. Note 2. Twisted-pair cable must be used for the DATA+/- wires. 3.

  • Page 25: Setting Up The Tds-700 Module

    Tiny Serial-to-Ethernet Device Server 3. Setting up the tDS-700 Module This chapter provides detailed information about the “Self-Test” process, which is used to confirm that the tDS-700 series module is operating correctly. Before beginning the “Self-Test” process, the wiring test, Ethernet configuration and VxComm utility driver installation procedures must first be fully completed.
  • Page 26 Tiny Serial-to-Ethernet Device Server +12 to +48 V jack Power Supply (Non-PoE) Host PC Power Supply 12-48 V Jack Figure 3-2 Hub/Swith PoE Power Supply Host PC PoE Switch Figure 3-3 Power Supply Verify that the System LED indicator is flashing. Figure 3-4 Copyright ©...
  • Page 27 Tiny Serial-to-Ethernet Device Server 6. Perform a Self-test wiring check as follows:  RS-232 Wiring: Connect the RxD to the TxD pins  RS-422 Wiring: Connect the RxD1- to the TxD1- pins and connect the RxD1+ to the TxD1+ pins While using RS-485 modules (e.g., tDS-715), you should wire the Data1+ with Data2+ signals, and wire the Data1- with Data2- signals for self-test.
  • Page 28 Tiny Serial-to-Ethernet Device Server Step 2: Install the VxComm Utility The VxComm Utility can be obtained from either the companion CD-ROM, the ICP DAS FTP site, or the ICP DAS web site. The location of the install files on the CD and the download addresses are shown below: CD:\\ NAPDOS\Software\VxComm_Driver\ http://ftp.icpdas.com/pub/cd/tinymodules/napdos/software/vxcomm_dr iver/...
  • Page 29 Tiny Serial-to-Ethernet Device Server Enter the network settings information, including the IP, Mask and Gateway addresses, and then click “OK” button. The new settings for the tDS-700 will take effect within 2 seconds. If you don’t know the correct network configuration information, contact your Network Administrator to obtain the details.
  • Page 30 Tiny Serial-to-Ethernet Device Server 2. Click the “Add Server[s]” button. Assign a COM Port number and click “OK” to save your settings.    3. Click on tDS-700 name and check the virtual COM port mappings on the PC. ...
  • Page 31 Tiny Serial-to-Ethernet Device Server 4. Click “Tools”  “Restart Driver”, and then click the “Restart Driver” button.   Step 5: Testing your tDS-700 1. Right click Port 1 and then choose the “Open COM Port” item. 2. Check that the configuration of the COM Port is correct and then click the “Open COM” button. ...
  • Page 32 Tiny Serial-to-Ethernet Device Server 3. Type a string in the send field then click the “Send” button. If a response is received, it will be displayed in the received field.    Response Message 4. If the test is successful, then your COM port program should now be able to work with this Virtual COM Port.

  • Page 33: Web Configuration

    Tiny Serial-to-Ethernet Device Server 4. Web Configuration Once the tDS-700 module has been correctly configured and is functioning on the network normally, the configuration details can be retrieved or modified using either the VxComm Utility or a standard web browser. 4.1 Logging in to the tDS-700 Web Server The embedded tDS-700 series web server can be accessed from any computer that has an Internet connection.
  • Page 34 Tiny Serial-to-Ethernet Device Server Step 3: Enter the Password After the main login page is displayed, enter a password (the factory default password is “admin”), and then click the “Submit” button to continue. Factory Default Password: admin Step 4: Log in to the tDS-700 Web Server After logging into the tDS-700 web server, the main page will be...

  • Page 35: Home Page

    Tiny Serial-to-Ethernet Device Server 4.2 Home Page The Home link connects to the main page, which contains two parts. The first part of this page provides basic information about the tDS-700 hardware and software. The software and hardware information section includes information related to the Model Name, the current Firmware version, the IP Address, the current position of the Initial Switch, the Alias, the MAC Address, and the TCP Port, and the System Timeout values.

  • Page 36: Network Setting

    Tiny Serial-to-Ethernet Device Server 4.3 Network Setting 4.3.1 IP Address Settings Address Type, Static IP Address, Subnet Mask Default Gateway values are the most important network settings and should always correspond to the LAN configuration. If they do not match, the tDS-700 module will not operate correctly. If the settings are changed while the module is operating, any connection currently in use will be lost and an error will occur.
  • Page 37 Tiny Serial-to-Ethernet Device Server The following is an overview of the parameters contained in the IP Address Settings section: Item Description IP Address Static IP: If no DHCP server is installed on the network, the network settings can be configured manually. Refer to Section 4.3.1.1 Manual Configuration for more details.

  • Page 38: Manual Configuration

    Tiny Serial-to-Ethernet Device Server 4.3.1.1 Manual Configuration When using manual configuration, the network settings should be assigned in the following manner: Step 1: Select the “Static IP” option from the “Address Type” drop-down menu. Step 2: Enter the relevant details in the respective network settings fields. Step 3: Click the “Update Settings”...

  • Page 39: General Settings

    Tiny Serial-to-Ethernet Device Server 4.3.2 General Settings The General Settings provides functions allowing items such as the Alias Name, System Timeout value, UART Watchdog value, Auto-logout value, Debug Message and CGI Configuration to be configured. The following is an overview of the parameters contained in the General Settings section: Item Description Default...
  • Page 40 Tiny Serial-to-Ethernet Device Server Item Description Default This parameter is used to configure the automatic logout value. If there is no activity on the web server for a certain period of time, the current user account will be Web Auto-logout automatically logged out.

  • Page 41: Restore Factory Defaults

    Tiny Serial-to-Ethernet Device Server 4.3.3 Restore Factory Defaults Use the following procedure to reset all parameters to their original factory default settings: Step 1: Click the “Restore Defaults” button to reset the configuration. Step 2: Click the “OK” button in the message dialog box. Step 3: Check whether the module has been reset to the original factory default settings for use with the VxComm Utility.
  • Page 42 Tiny Serial-to-Ethernet Device Server The Forced Reboot function: can be used to force the tDS-700 to reboot or to remotely reboot the device. After the tDS-700 module has rebooted, the original login screen will be displayed requesting that you enter your Login Password before continuing. ...

  • Page 43: Remote Firmware Update

    Tiny Serial-to-Ethernet Device Server 4.3.4 Remote Firmware Update Firmware update requires initialization and local network operations. Traditional firmware update requires adjusting the Init/Run Switch and reboots the module manually for the initialization of firmware update, while new firmware allows user to initialize the module via web interface without adjusting the hardware switch.

  • Page 44: Serial Port Page

    Tiny Serial-to-Ethernet Device Server 4.4 Serial Port Page The Port 1 Settings section provides functions allowing items such as port settings, serial data packing and pair-connection settings to be configured. 4.4.1 Port1 Settings Copyright © 2016 ICP DAS CO., Ltd. All Rights Reserved. - 44 -...
  • Page 45 Tiny Serial-to-Ethernet Device Server The following is an overview of the parameters contained in the Port1 Settings section: Item Description Default Port Settings This parameter is used to set the Baud Rate for the Baud Rate (bps) 115200 COM ports. This parameter is used to set the Data Size for the Data Size (bits) COM ports.
  • Page 46 Tiny Serial-to-Ethernet Device Server Item Description Default When the input serial data length reaches to the value, it will be sent out. Packing Length (bytes) Settings range: 0 ~ 1024; Disabled: 0. The tDS-700 outputs an Ethernet packet immediately after the ending-chars pattern is identified from the incoming serial data.

  • Page 47: Filter Page

    Tiny Serial-to-Ethernet Device Server 4.5 Filter Page 4.5.1 Accessible IP (filter is disabled when all zero) The Accessible IP Settings section is used to query or edit the IP Filter List. The IP Filter List restricts the access of packets based on the IP header. If one or more IP address are saved to the IP Filter table, only clients whose IP is specified in the IP Filter List can access the tDS-700.
  • Page 48 Tiny Serial-to-Ethernet Device Server The following is an overview of the parameters contained in the Filter Settings (white list) section: Item Description Add “IP” To The List Add an IP address to the IP Filter List. Add Range “IP”& Mask “IP” Add an IP address range to the IP Filter List.

  • Page 49: Monitor Page

    Tiny Serial-to-Ethernet Device Server 4.6 Monitor Page After clicking the Monitor tab, the Current Connection Status page will be displayed showing detailed information regarding the current status of the serial port connection settings for the tDS- 700 module. Copyright © 2016 ICP DAS CO., Ltd. All Rights Reserved. - 49 -...

  • Page 50: Change Password

    Tiny Serial-to-Ethernet Device Server 4.7 Change Password After clicking the Password tab, the Change Password page will be displayed. To change a password, first enter the old password in the “Current password” field (use the default password “admin”) and then enter a new password in the “New password”...

  • Page 51: Logout Page

    Tiny Serial-to-Ethernet Device Server 4.8 Logout Page After clicking the Logout tab, you will be immediately logged out from the system and be returned to the login page. Copyright © 2016 ICP DAS CO., Ltd. All Rights Reserved. - 51 -...

  • Page 52: Typical Applications

    Tiny Serial-to-Ethernet Device Server 5. Typical Applications This chapter provides some examples of typical scenarios for the tDS-700 module, including applications focused on the Virtual COM, Direct Socket Connection, Ethernet I/O, Pair-connection and TCP Client Mode, etc.. Copyright © 2016 ICP DAS CO., Ltd. All Rights Reserved. - 52 -...

  • Page 53: Virtual Com Application

    Tiny Serial-to-Ethernet Device Server 5.1 Virtual COM Application The tDS-700 series is designed to link RS-232/422/485 devices to an Ethernet network. The VxComm utility allows the built-in tDS-700 COM Port to be virtualized to a standard COM Port of a host PC, as shown below: In the configuration above, Meter-1 is virtualized to link to COM3 of the host PC.

  • Page 54: Direct Socket Connection Applications

    Tiny Serial-to-Ethernet Device Server 5.2 Direct Socket Connection Applications tDS-700 series module can accept the TCP connection (include raw data) directly, it also can communicate with TCP client and Serial Device in this way. For examples of socket connection test as follows: Copyright ©...
  • Page 55 Tiny Serial-to-Ethernet Device Server 1. Confirm that the tDS-700 modules are functioning correctly. Refer to Chapter 3 Setting up the tDS-700 module for more details. 2. Wire the slave device (Ex: M-7015, optional) with your tDS-700. For detailed RS-422/485 wiring information, refer to section 2.7 “Wiring Notes for RS-232/485/422 Interfaces”.
  • Page 56 Tiny Serial-to-Ethernet Device Server 7. Type the IP address of tDS-700 in the IP Address field and assign a TCP/IP port of tDS-700, and then click the “Open TCP” button. 8. Type a string in the send field then click the “Send” button. If a response is received, it will be displayed in the received field.

  • Page 57: Ethernet I/O Applications

    Tiny Serial-to-Ethernet Device Server 5.3 Ethernet I/O Applications Linking to I-7000 series modules The I-7000 series provides a variety of I/O operations, such as D/I, D/O, A/D, D/A, Counter and Frequency Measurement, etc. The I-7000 series was originally designed to be used with RS-485 networks, so the RS-485 of COM on the tDS-700 can be used to link to I-7000 series modules.
  • Page 58 Tiny Serial-to-Ethernet Device Server 2: Configure the system connection as shown below and click the “Start” button to begin logging data. 3: Open the log file in MS Excel to view the log data as shown in the example below: By using the I-7000 DCON utility and MS Excel in conjunction with VxComm technology, the signal data originating from I-7000 modules via the Ethernet network can be analyzed without the need to write custom programs.

  • Page 59: Pair-Connection Applications

    Tiny Serial-to-Ethernet Device Server 5.4 Pair-connection Applications tDS-700 device servers can be used to create a pair-connection application (as well as serial-bridge or serial-tunnel), and then route data between two serial devices via TCP/IP, which is useful when connecting mainframe computers, servers or other serial devices that do not themselves have Ethernet capability.
  • Page 60 Tiny Serial-to-Ethernet Device Server The following are examples of pair-connection tests: Pair-connection Settings: Port Settings Pair-connection Settings (default) Model Remote Baud Data Remote Application TCP Port Rate Format Server IP Mode (default) IP Address of tDS-700 #2 tDS-700 #1 115200 Client 10001 tDS-700 #2...
  • Page 61 Tiny Serial-to-Ethernet Device Server The image below shows an example of the setup for a pair-connection test: Figure 5-1 Step 2: Configuring the Ethernet Settings Contact your Network Administrator to obtain the correct and functioning network configuration for the tDS-700 modules (including the IP Address, Mask and Gateway details).
  • Page 62 Tiny Serial-to-Ethernet Device Server Step 3: Configuring the Pair-connection (Client Mode) on the Web Server for tDS-700 #1 1. Enter the password (default: admin) in the Login password field, and then click the “Submit” button to enter the configuration page. ...
  • Page 63 Tiny Serial-to-Ethernet Device Server 3. Select the appropriate Baud Rate and Data Format settings from the relevant drop down options, for example “115200” , “8”, “None” and 1” . 4. The pair-connection settings area as follows: 4-1: Select “Client” from the “Application Mode (Server Mode)” drop down options 4-2: Type the IP address of the tDS-700 #2 in the “Remote Server IP”...
  • Page 64 Tiny Serial-to-Ethernet Device Server Step 4: Configuring the Pair-connection (Server Mode) on the Web Server for tDS-700 #2 1. Enter the configuration page for the tDS-700 #2 web server. 2. Click the “Port1” link to enter the settings page of the tDS-700 #2. 3.
  • Page 65 Tiny Serial-to-Ethernet Device Server 2. Execute the Test2COM.exe program. 1. Double Click Test2COM.exe 7. Check Baud Rates: 115200 2. Type COM1\COM2 3. Check Data Bits: 8 4. Check Parity: None 8. Loop: 10 5. Check Stop Bits: 1 9. Click “Start Test” 6.

  • Page 66: Tcp Client Mode Applications

    Tiny Serial-to-Ethernet Device Server 5.5 TCP Client Mode Applications In TCP Client Mode, the tDS-700 can establish a TCP connection to a specific TCP slave device actively by TCP server program. The whole system should operate like this: The following are examples of TCP Client Mode tests: TCP Client Mode Settings: Port Settings Pair-connection Settings...
  • Page 67 Tiny Serial-to-Ethernet Device Server Follow the procedure described below: Step 1: Connecting to a network, a PC and a Power Supply 1. Confirm that the tDS-700 module is functioning correctly. Refer to Chapter 3 Setting up the tDS- 700 Module for more details.
  • Page 68 Tiny Serial-to-Ethernet Device Server Step 2: Configuring the Ethernet Settings Contact your Network Administrator to obtain a correct and functioning network configuration (including the IP Address, Mask and Gateway details) for the tDS-700 module. Also refer to Chapter 3 Setting up the tDS- 700 Module for more details.
  • Page 69 Tiny Serial-to-Ethernet Device Server 2. Click the “Port1” link to enter the settings page.  Figure 5-12 3. Select the appropriate Baud Rate and Data Format settings from the relevant drop down options, for example “115200” , “8”, “None” and 1” . 4.
  • Page 70 Tiny Serial-to-Ethernet Device Server    Figure 5-13 Step 4: Testing the Pair-connection (TCP Client Mode) Functions 1. Install TcpIpEcho.exe (TCP/IP Test Server program) on your PC. The software is located at: http://www.brothersoft.com/tcp-ip-test-server-27898.html 2. Run the TCPIPEcho.exe program. Figure 5-14 Copyright ©...
  • Page 71 Tiny Serial-to-Ethernet Device Server 3. Click on “Socket”  “Listen”. 4. Type the IP address and port number of the TCP Server (PC#2) in the “Server IP” and “Port Number” field (for example “10.0.8.21” and “500”). 5. Click the “Echo Messages Back To Client” check box. 6.
  • Page 72 Tiny Serial-to-Ethernet Device Server 7. Right click in the “Configure Port” area and then choose the “Open COM Port” item under the VxComm utility. Figure 5-17 8. Select the appropriate COM Port, Baud Rate and Data Format settings from the relevant drop down options (for example “COM1”, “115200”...
  • Page 73 Tiny Serial-to-Ethernet Device Server 9. Type a string in the send field and then click the “Send” button on the COM1 terminal (PC #1). 10. Confirm that TCP server (PC #2) will receive this string under the TCP/IP Test Server. 11.

  • Page 74: Cgi Configuration

    Tiny Serial-to-Ethernet Device Server 6. CGI Configuration The tDS-700 series can be configured via convenient URL commands. This section lists the commands in URL format corresponding to the basic functions of tDS-700. Please make sure you have correctly configured the network settings for the tDS-700 before using CGI configuration. (Please refer to Chapter 3 “Setting up the tDS-700 module”...

  • Page 75: Cgi Command List

    Tiny Serial-to-Ethernet Device Server 6.2 CGI Command List Network Settings Function Name Parameter Name Value Constraint 0: Disable; Set Address Type dhcp 1: Enable; Set IP Address xxx.xxx.xxx.xxx Set Gateway gway xxx.xxx.xxx.xxx mask xxx.xxx.xxx.xxx Set Net Mask 1~65535 Set TCP Command Port cmdport assign.cgi Default: 10000...
  • Page 76 Tiny Serial-to-Ethernet Device Server Serial Port Settings Function Name Parameter Name Value Constraint (bits/S) Set Baud Rate baud0 & baud1 Data bits: 5 ~ 8; Set Data Format format0 & format1 Parity: n, e, o, m, s; Stop bits: 1, 2; 0: None;...

  • Page 77: Appendix A: Glossary

    Tiny Serial-to-Ethernet Device Server Appendix A: Glossary 1. ARP (Address Resolution Protocol) The Address Resolution Protocol (ARP) is a telecommunication protocol that is used to convert an IP address to a physical address, such as an Ethernet address. Consider two machines A and B that share the same physical network. Each has an assigned IP address IP and IP , and a MAC address, MAC...

  • Page 78: Ethernet

    Tiny Serial-to-Ethernet Device Server 3. Ethernet The term Ethernet generally refers to a standard published in 1982 by Digital Equipment Corp., Intel Corp. and Xerox Corp. Ethernet is the most popular physical layer Local Area Network (LAN) technology in use today. 4.

  • Page 79: Ip (Internet Protocol) Address

    Tiny Serial-to-Ethernet Device Server 8. IP (Internet Protocol) Address Each interface on the Internet must have a unique IP address (also called an Internet address). These addresses are 32-bit numbers, and are normally written as four decimal numbers, one for each byte of the address for example “192.168.41.1”.

  • Page 80: Rarp (Reverse Address Resolution Protocol)

    Tiny Serial-to-Ethernet Device Server 12. RARP (Reverse Address Resolution Protocol) RARP provides a method of dynamically mapping 48-bit MAC address to the corresponding 32-bit IP address. RARP has now been replaced by the Bootstrap Protocol (BOOTP) and the modern Dynamic Host Configuration Protocol (DHCP).

  • Page 81: Tcp/Ip

    Tiny Serial-to-Ethernet Device Server 16. TCP/IP The Transmission Control Protocol (TCP) and the Internet Protocol (IP) are standard network protocols that are almost always implemented and used together in a formation is known as TCP/IP. TCP/IP can be used to communicate across any set of interconnected networks. 17.

  • Page 82: Appendix B: Actual Baud Rate Measurement

    Tiny Serial-to-Ethernet Device Server Appendix B: Actual Baud Rate Measurement Ideal Baud Rate (bps) Actual Baud Rate (bps) Error 0.00% 109.92 0.07% 298.48 0.51% 597.04 0.49% 1200 1197.6 0.20% 2400 2395.2 0.20% 4800 4790.4 0.20% 9600 9568.0 0.33% 14400 14392 0.05% 19200 19136...
