1

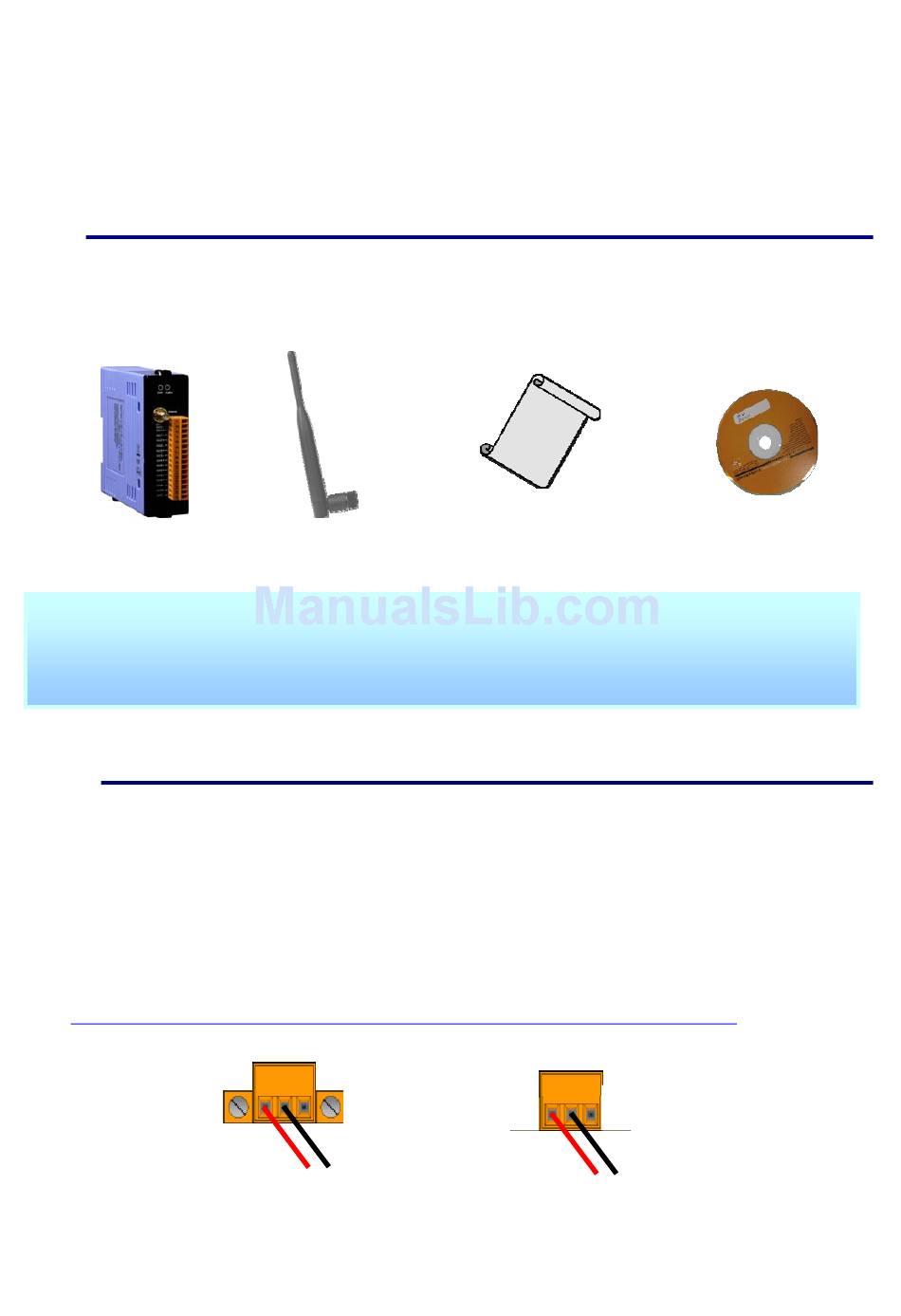

What's in the Shipping Package?
The shipping package showed contain the following items:
ZT‐2026 Device
If any of these items are missing or damaged, please contact your local distributor
for more information. Save the shipping materials and cartons in case you need to
ship the module in the future.
2
Preparing the Device
Refer to Section 4. for details of how to configure the DIP switches of the
1.
ZT-2000 I/O device.
Install the ZT Configuration Utility on your Host PC to configure the ZT-2000
2.
coordinator. The utility can be founded on the CD in the
\Napdos\ZigBee\ZT_Series\Utility folder, or downloaded from:
http://ftp.icpdas.com/pub/cd/usbcd/napdos/zigbee/zt_series/utility
Power Supply: Connect a power supply using a voltage range of +10 ~ +30 V
3.
ICP DAS, ZT‐2026 Quick Start Guide, Version 1.0.0
Copyright
ZT‐2026
ANT‐124‐05
+Vs
GND
©
2013 by ICP DAS Co., Ltd. All Rights Reserved.
Quick Start
Quick Start
+Vs
GND
Page 1
CD
DC
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA ZT-2026
Summary of Contents for ICP DAS USA ZT-2026
- Page 1 ZT‐2026 Quick Start What’s in the Shipping Package? The shipping package showed contain the following items: ANT‐124‐05 Quick Start CD ZT‐2026 Device If any of these items are missing or damaged, please contact your local distributor for more information. Save the shipping materials and cartons in case you need to ship the module in the future.
- Page 2 Setting up the ZT‐2000 I/O Device 3.1 Introduction to the Configuration Parameters A. The “ZB PID” parameter is the group identity for a ZigBee network, and must be same for all devices in the same ZigBee network. B. The “Node ID” parameter is the individual identity of the specific ZigBee module, and must be unique for each device connected to the same ZigBee network.
-
Page 3: Rotary Switch
The Rotary Switch and DIP Switches The configuration of the ZT-2026 can be adjusted using a combination of the external rotary switch and the DIP switches. The ZT-2000 device should only be rebooted once the configuration is completed. ZT-2026 Protocol ZB PID Type Code... - Page 4 ZB PID ZigBee Pan ID = 0x0001 ------ 0x08 ------ 0x04 ZB Channel ------ 0x02 ------ 0x01 Engineering Units Format Data Format Hexadecimed Format ZT-2026 Switch Switch Type Switch Type Code Type Code Position Position Code Position 0x08 0x09 0x0A...
- Page 5 Starting the ZT‐2000 I/O Device As the ZigBee network is controlled by the ZigBee Coordinator, the ZT-2550/ZT-2570 (ZigBee Coordinator) must be configured first. Refers to the documents shown below for full details of how to configure these devices. Once configuration of the ZigBee Coordinator has been completed, set the “Pan ID”...
- Page 6 Examples Configuring the ZT‐2550/ZT‐2570 Configuring the ZT-2000 I/O Device 10 11 12 Number Item Status Description Address MSB Address/Node ID is 01 (Rorary Switch=1) Protocol Use Modbus RTU Protocol Checksum Disabled ZB PID Pan ID=0x0000 0x08 0x04 ZB Channel ZigBee RF Channel = 0x0E 0x02 ------...
-
Page 7: Communications Testing
Communications Testing Once the ZT-2000 I/O device has joined the ZigBee network, the signal quality can be confirmed by monitoring the status of the ZigBee Net LED indicators. If the LED indicator shows a steady light, communication with the ZT-2000 I/O device has been successfully established for data acquisition and control. -
Page 8: Troubleshooting
Troubleshooting (1) Technical Support. If you have any difficulties using your ZT-2000 series I/O device, please send a description of the problem to service@icpdas.com Include the following items in your email: A description or diagram of the current DIP switch positions. ...
