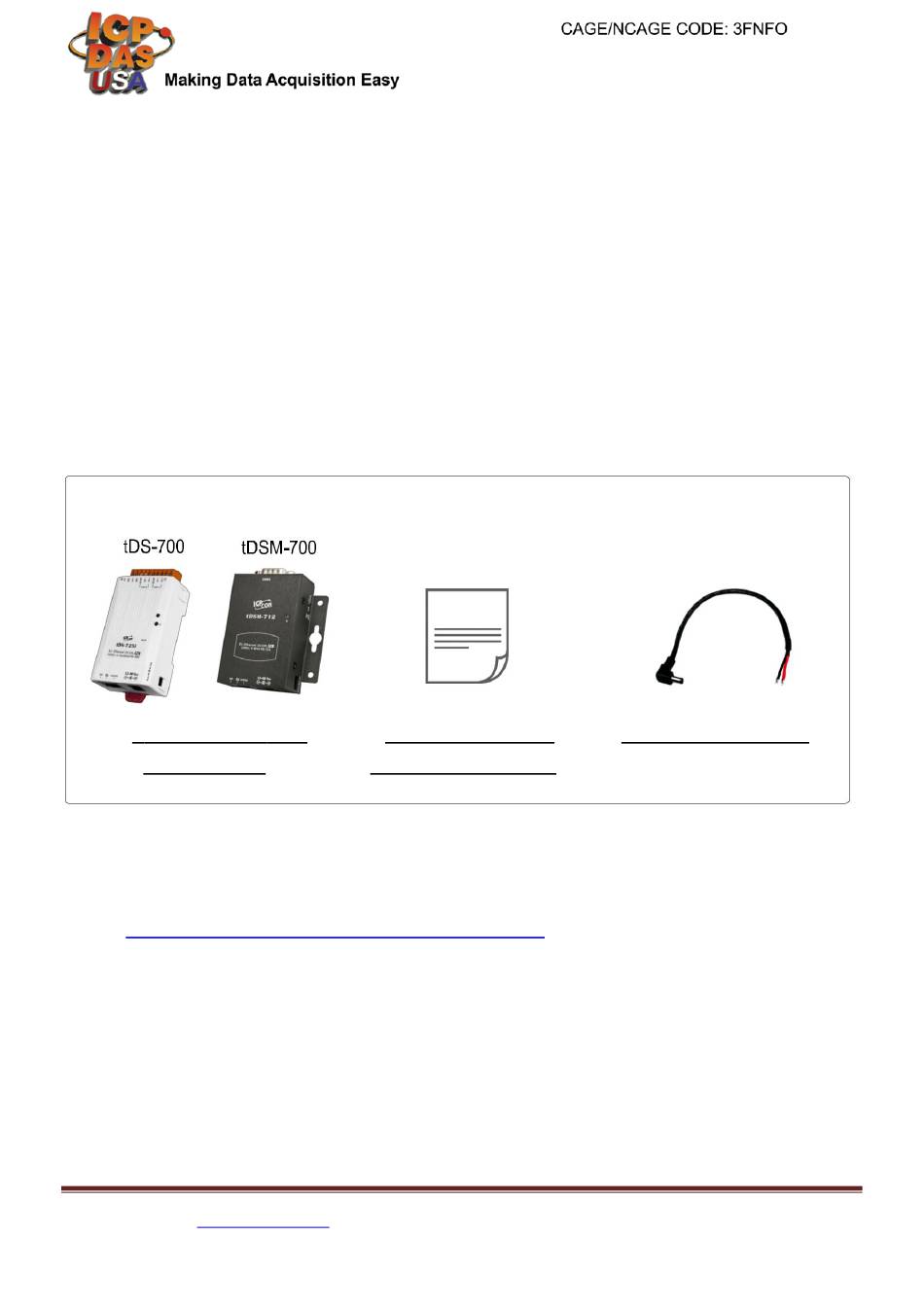

CA-002 Cable x1 Module x 1 (This Document) Related Information tDS Series Product Page: https://www.icpdas-usa.com/tinydeviceserver.php tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
Page 2
Ethernet switch. Supply power (PoE or +12~+48 V ) to the tDS-700. tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
Page 3
Self-Test tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
Factory Default Settings of tDS-700: IP Address 192.168.255.1 Subnet Mask 255.255.0.0 Gateway 192.168.0.1 tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
2) Click the name of tDS-700 to select it. tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
Page 6
5) Click on tDS-700 name and check the virtual COM Port mappings on the tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
Page 7
2) Check that the configuration of the COM Port is correct and then click the “Open COM” button. tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
Page 8
If a response is received, it will be displayed in the received field. tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
