3 Components and Power Supply
To avoid electric shocks, residual current circulation and other unwanted effects, also affecting communications, the
following is recommended:
Warning
All interconnected communication devices should be plugged to THE SAME GROUNDED POWER
OUTLET, which should at the same time be of good quality (lower than 10 ohms).
Whether the workplace is provided with an uninterrupted power supply system (UPS), regulated supply
or it is independent from the rest (such as lighting, etc.); it is highly recommended that all data devices
should be connected to the same power source. This will avoid operating and premature aging prob-
lems of drivers and other components.

3.3.2 PoE

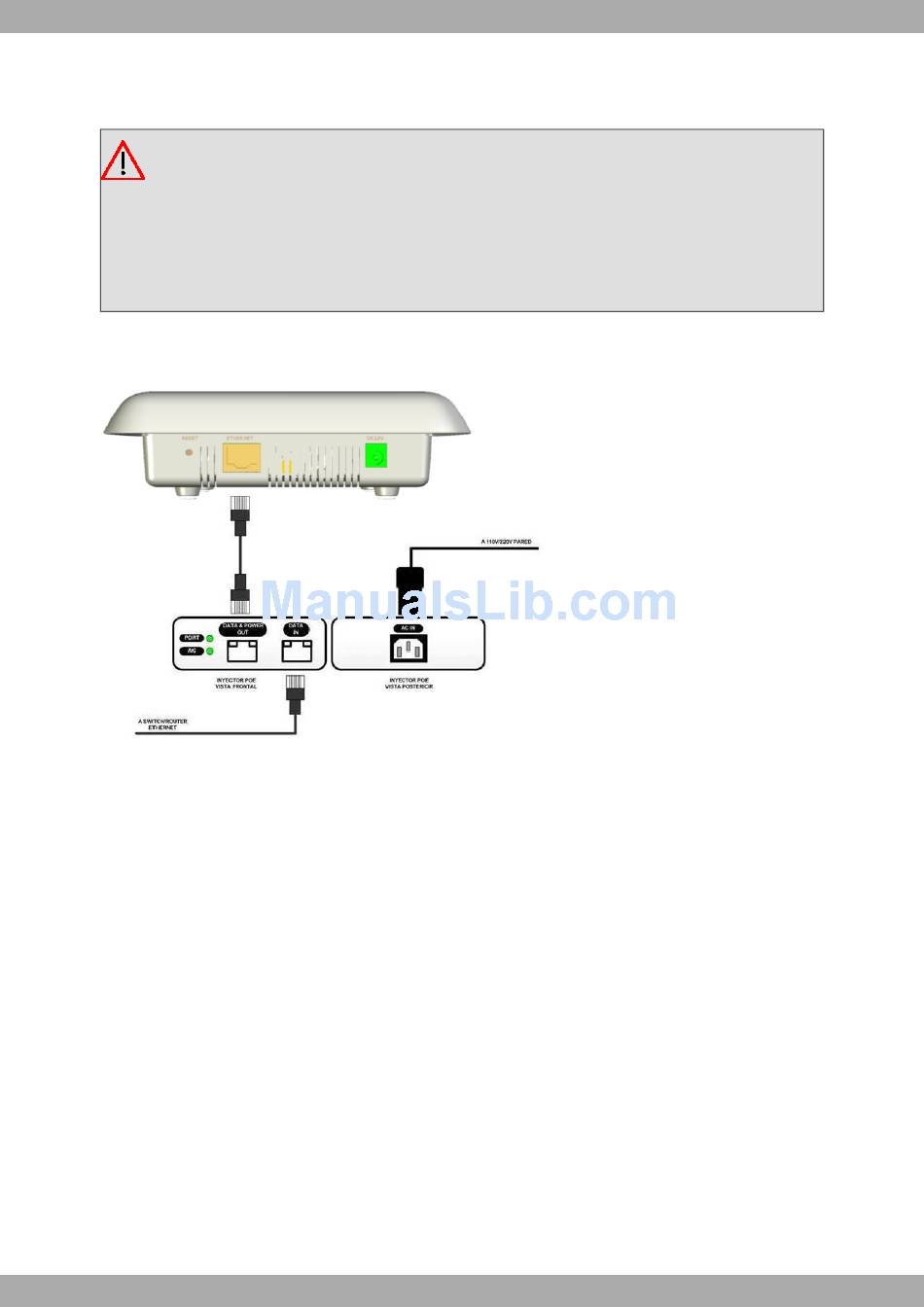

Diagram to connect the PoE adapter to the router
Fig. 12:
The Teldat 4Ge router can be powered through an Ethernet cable if the latter complies with the POE 802.3aF stand-
ard. The ETHERNET port is enabled for this.
To connect the Ethernet cable with PoE power to the router, please carry out the steps outlined in section
ernet cable is PoE
Figure 11 provides detail on how to connect the PoE injector to the device.

3.3.3 Connecting to the power source

3.3.4 Connect

3.3.4.1 If the Ethernet cable isn't PoE
• Make sure that the router's power supply switch is in the OFF position (0).
• Ensure that the power supply is NOT connected to either the electricity or the router.
• Connect all data cables.
• Connect the power supply cable to the device.
• Connect the power supply cable to the electricity supply.
• Set the router's power supply switch to the ON position (1).
12
on page 13.
Teldat S.A.
If the Eth-
Teldat 4Ge Router
