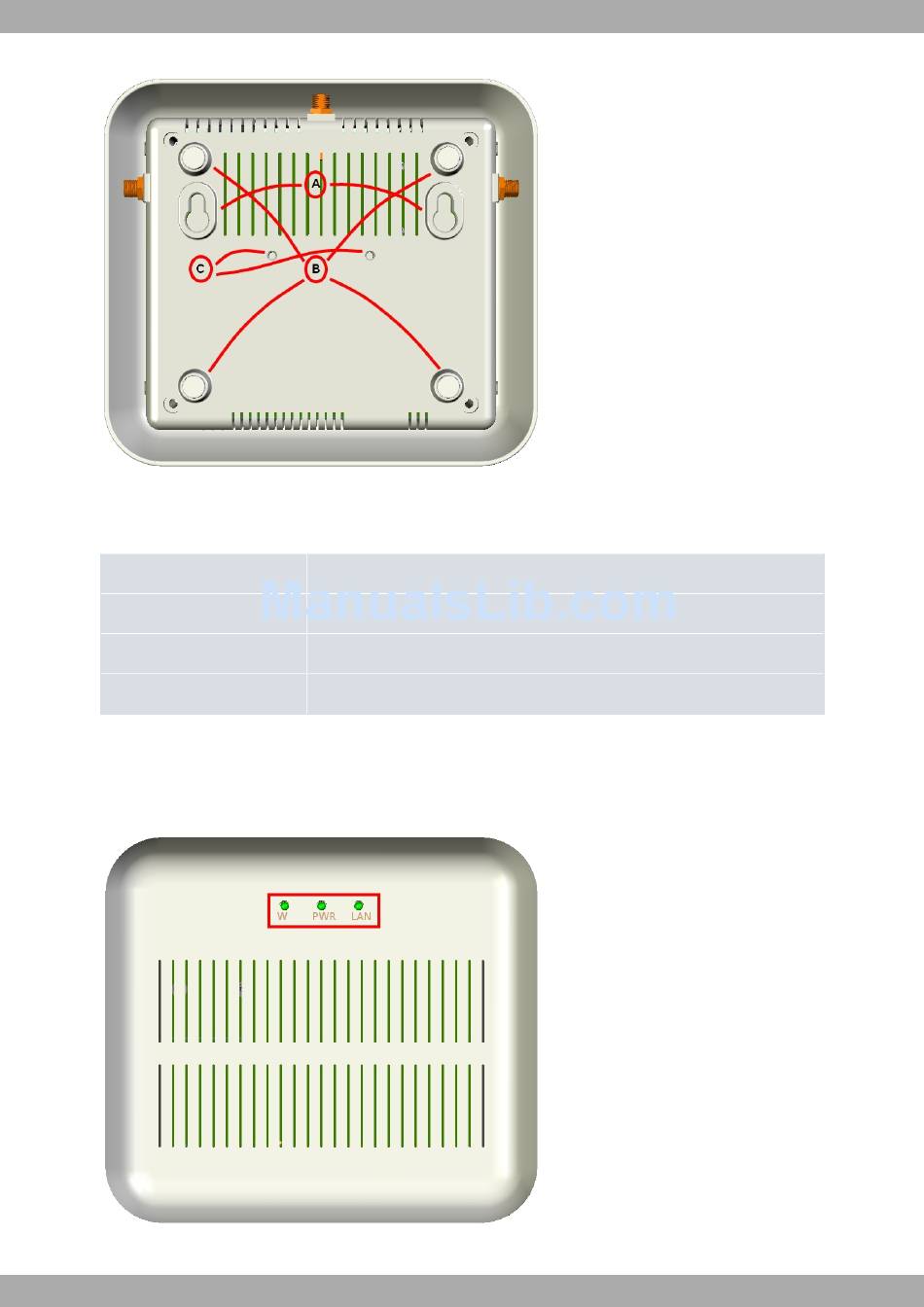

Underside panel
Fig. 5:
The following table contains details on the significant elements on the underside panel.
Underside panel elements table
Item
A
B
C

3.1.5 Top Panel (LEDs)

The LEDs panel provides information on the state of the components (whether they are active or not) and on the net-
work activity.
Leds Panel
Fig. 6:
Teldat 4Ge Router
Description
Slots for wall mount.
Rubber feet.
Perforations to install a DIN rail mount. (Optional)
3 Components and Power Supply
7
