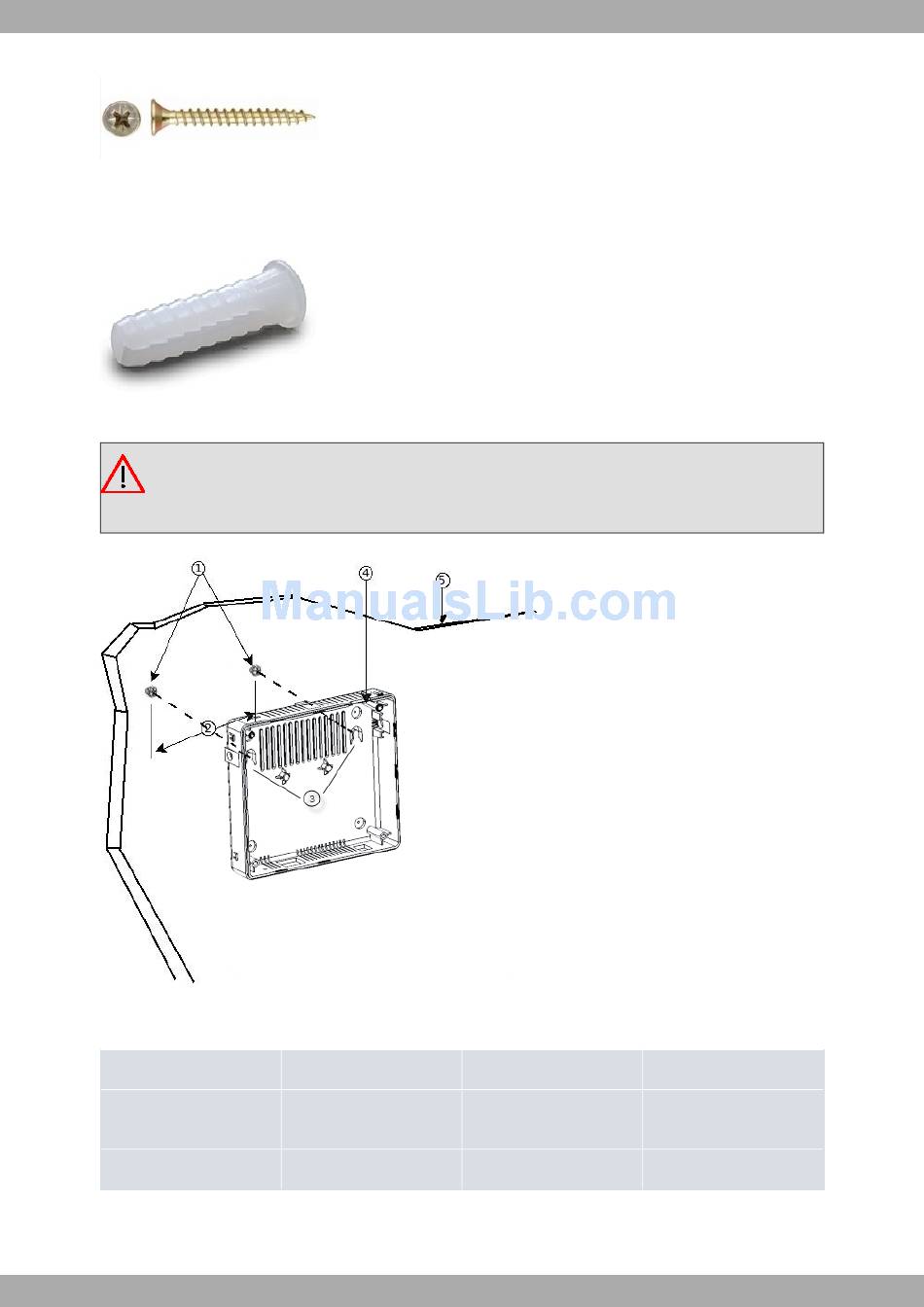

Teldat 4Ge Installation Manual page 15

Teldat S.A.
Screw
Fig. 7:
• 2 wall anchors: [White Striated Wall Anchor. 8mm Diameter]
Wall anchor
Fig. 8:
Warning
The screws must go into a wall stud (wood) or a wall anchor of the appropriate type for the wall. Screws
into drywall are not strong enough to mount the router.
Wall-Mounting Features on the router
Fig. 9:
The above figure shows the wall-mounting features on the Teldat 4Ge router.
1
3
5
To mount the router on a wall or other surface, follow these steps:
Teldat 4Ge Router
Wall screws
Chassis mounting holes (on
the underside)
Mounting surface
2
4
3 Components and Power Supply
8,8 cm (3.46 inches)
Router chassis
9
