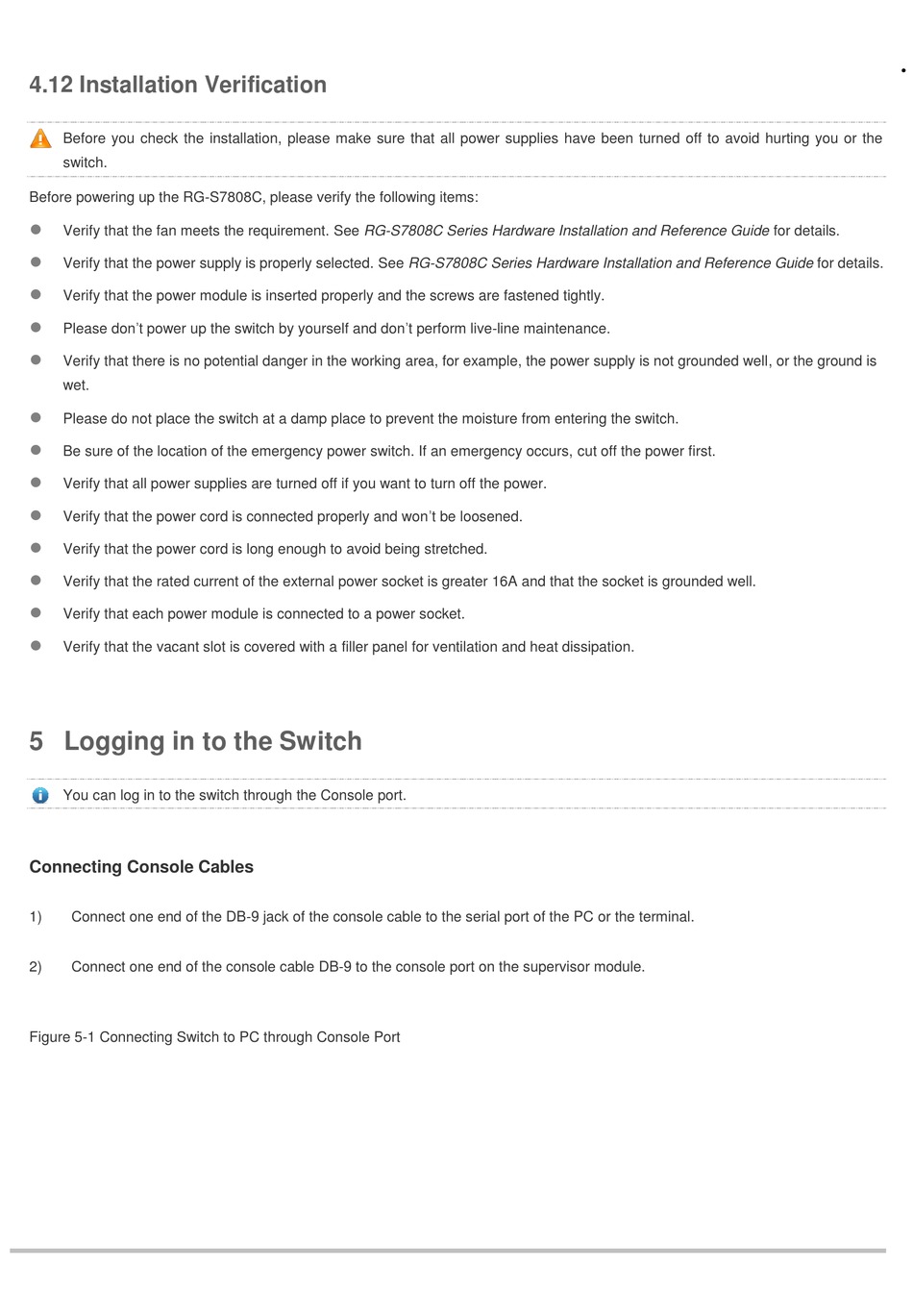

4.12 Installation Verification

Before you check the installation, please make sure that all power supplies have been turned off to avoid hurting you or the
switch.
Before powering up the RG-S7808C, please verify the following items:

Verify that the fan meets the requirement. See RG-S7808C Series Hardware Installation and Reference Guide for details.

Verify that the power supply is properly selected. See RG-S7808C Series Hardware Installation and Reference Guide for details.

Verify that the power module is inserted properly and the screws are fastened tightly.

Please don't power up the switch by yourself and don't perform live-line maintenance.

Verify that there is no potential danger in the working area, for example, the power supply is not grounded well, or the ground is
wet.

Please do not place the switch at a damp place to prevent the moisture from entering the switch.

Be sure of the location of the emergency power switch. If an emergency occurs, cut off the power first.

Verify that all power supplies are turned off if you want to turn off the power.

Verify that the power cord is connected properly and won't be loosened.

Verify that the power cord is long enough to avoid being stretched.

Verify that the rated current of the external power socket is greater 16A and that the socket is grounded well.

Verify that each power module is connected to a power socket.

Verify that the vacant slot is covered with a filler panel for ventilation and heat dissipation.

5 Logging in to the Switch

You can log in to the switch through the Console port.
Connecting Console Cables
1) Connect one end of the DB-9 jack of the console cable to the serial port of the PC or the terminal.
2) Connect one end of the console cable DB-9 to the console port on the supervisor module.
Figure 5-1 Connecting Switch to PC through Console Port
·
