Note:
Captive screw
To install the air filter, follow these steps:
1)
Insert the air filter along the slide rail. Make sure the air filter is installed properly.
2)
Tighten the captive screws.

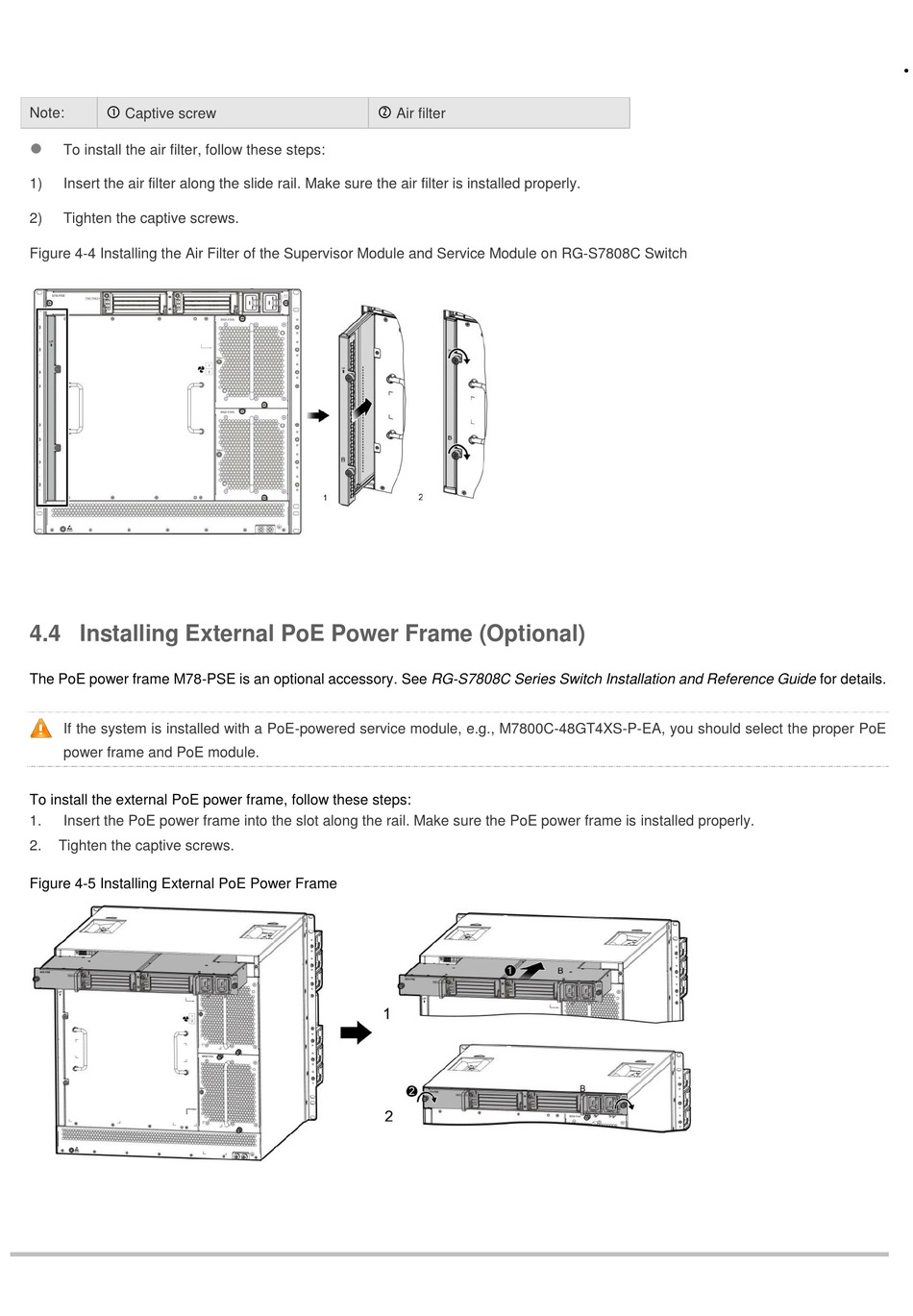

Figure 4-4 Installing the Air Filter of the Supervisor Module and Service Module on RG-S7808C Switch
4.4 Installing External PoE Power Frame (Optional)
The PoE power frame M78-PSE is an optional accessory. See RG-S7808C Series Switch Installation and Reference Guide for details.
If the system is installed with a PoE-powered service module, e.g., M7800C-48GT4XS-P-EA, you should select the proper PoE
power frame and PoE module.
To install the external PoE power frame, follow these steps:
1.
Insert the PoE power frame into the slot along the rail. Make sure the PoE power frame is installed properly.
2.
Tighten the captive screws.
Figure 4-5 Installing External PoE Power Frame
Air filter
·
