Installing The Air Filter (Optional) - Ruijie Networks RG-S7808C Series Quick Installation Manual

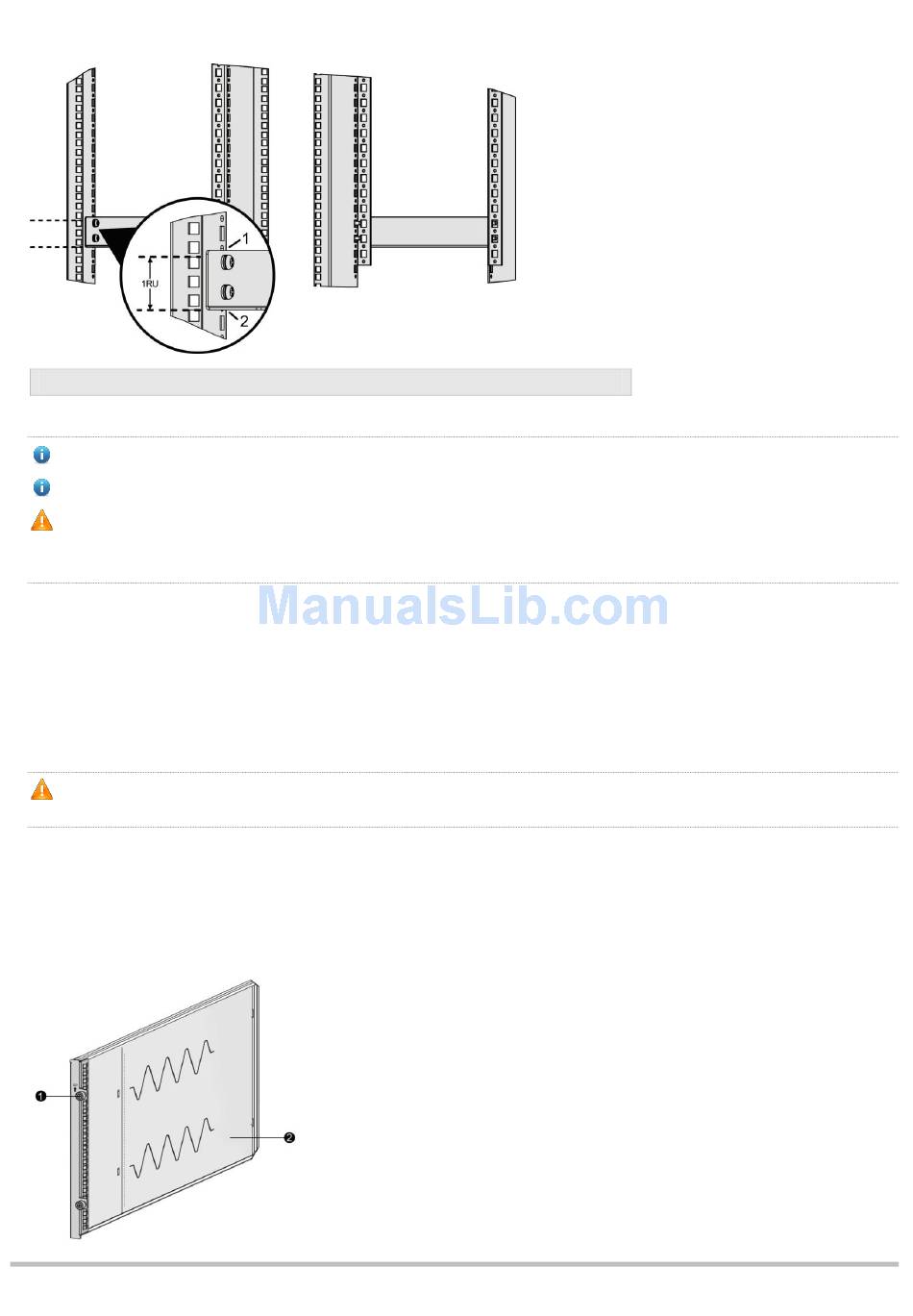

Note: ① and ② represents 1 RU delimiters.
Before installing a slide rail, please verify that it is firm enough to bear the device weight and its installation accessories.
There are variable kinds of slide rails. The rail appearance and installation is subject to actual conditions.
In order to keep the cabinet balanced, please install the slide rail to as low a position as possible in the cabinet if only one
RG-S7808C switch is installed. If you are mounting multiple devices to the cabinet, mount the heaviest device in the lowest
position of the cabinet first and proceed to mount the rest of the devices from bottom to top.

4.3 Installing the Air Filter (Optional)

Install air filters of the supervisor module and service module on the RG-S7808C.
If an air filter is used for a long time, dust may block its air vent, weakening system ventilation. It is recommended you wash the
air filter every three months.
Installing the Air Filters of the Supervisor Module and Service Module
Figure 4-3 Air Filter of Supervisor Module and Service Module on RG-S7808C
·
