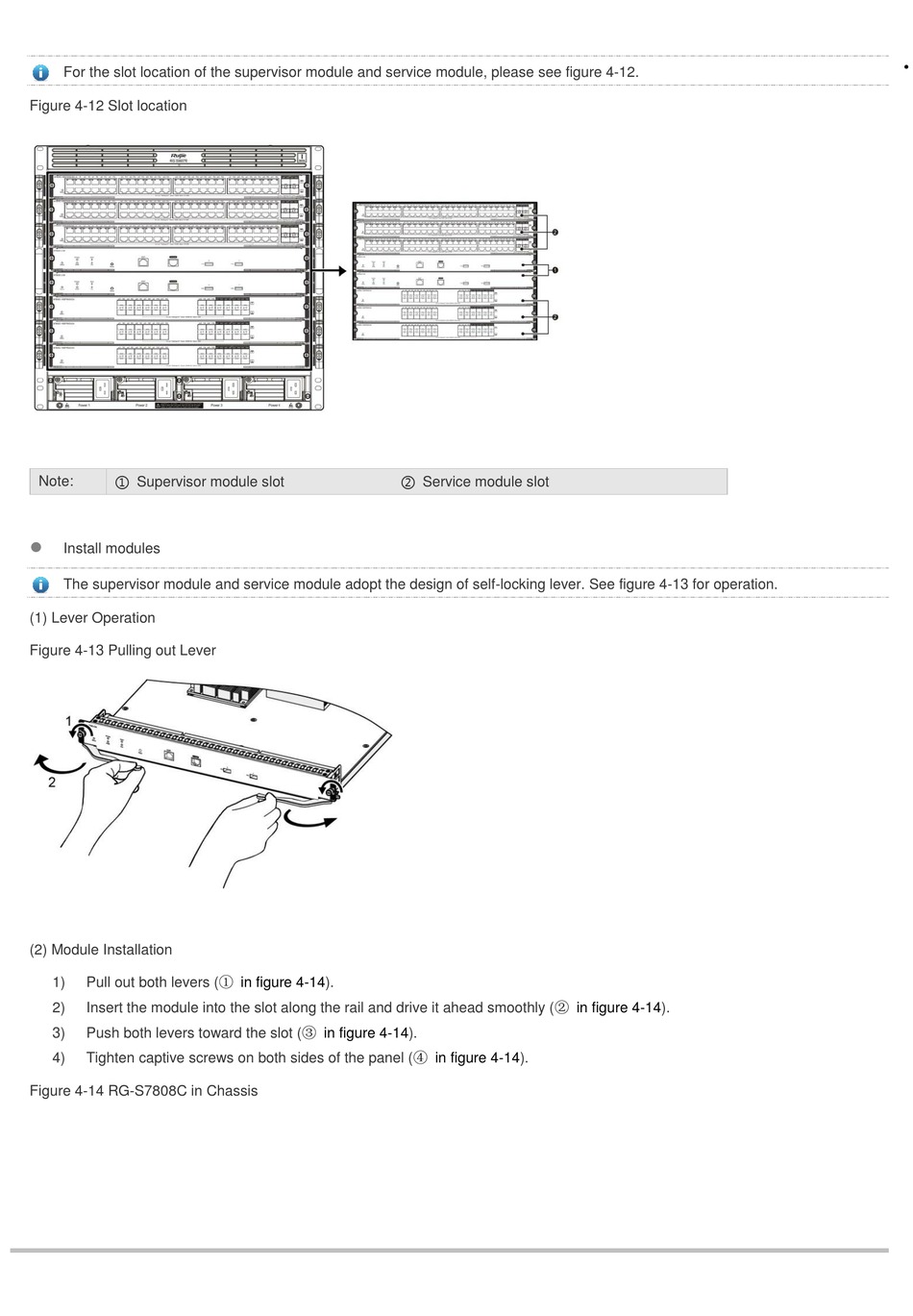

For the slot location of the supervisor module and service module, please see figure 4-12.
Figure 4-12 Slot location
① Supervisor module slot
Note:

Install modules
The supervisor module and service module adopt the design of self-locking lever. See figure 4-13 for operation.
(1) Lever Operation
Figure 4-13 Pulling out Lever
(2) Module Installation
1) Pull out both levers
2) Insert the module into the slot along the rail and drive it ahead smoothly
3) Push both levers toward the slot
4) Tighten captive screws on both sides of the panel
Figure 4-14 RG-S7808C in Chassis
(① in figure 4-14).
(③ in figure 4-14).
② Service module slot
(② in figure
(④ in figure 4-14).
4-14).
·
