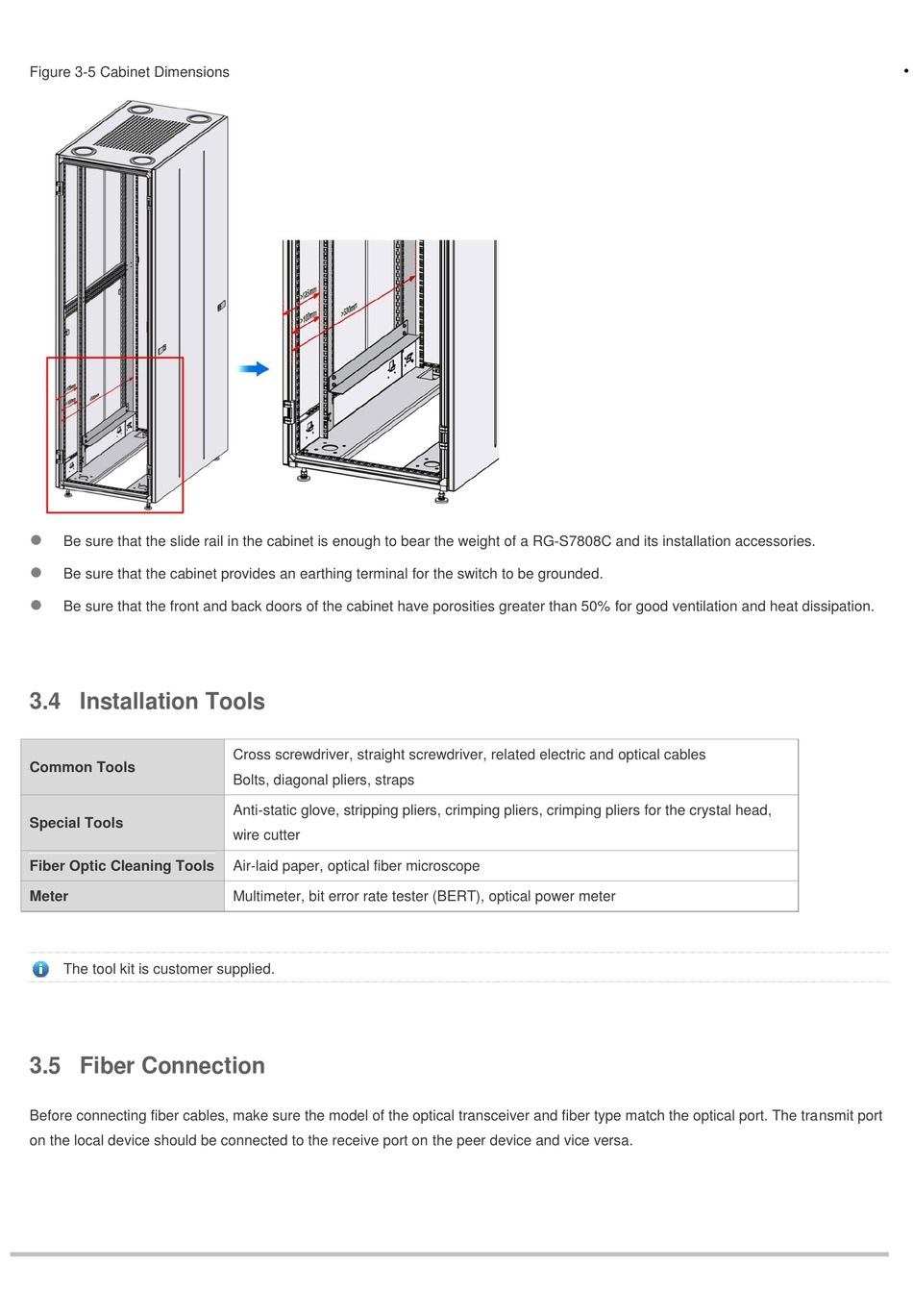

Figure 3-5 Cabinet Dimensions
Be sure that the slide rail in the cabinet is enough to bear the weight of a RG-S7808C and its installation accessories.
Be sure that the cabinet provides an earthing terminal for the switch to be grounded.
Be sure that the front and back doors of the cabinet have porosities greater than 50% for good ventilation and heat dissipation.
3.4 Installation Tools
Common Tools
Special Tools
Fiber Optic Cleaning Tools
Meter
The tool kit is customer supplied.
3.5 Fiber Connection
Before connecting fiber cables, make sure the model of the optical transceiver and fiber type match the optical port. The transmit port
on the local device should be connected to the receive port on the peer device and vice versa.
Cross screwdriver, straight screwdriver, related electric and optical cables
Bolts, diagonal pliers, straps
Anti-static glove, stripping pliers, crimping pliers, crimping pliers for the crystal head,
wire cutter
Air-laid paper, optical fiber microscope
Multimeter, bit error rate tester (BERT), optical power meter
·
