Observa Telecom LTE CPE SQI4N4 Quick Start Manual page 58

9. Set Random time.
10. Click Submit. As shown in Figure 8‐7.
The CPE will automatically upgrade according to the setting. During an upgrade,
do not disconnect the power supply or operate the CPE.
8.4 TR069
TR‐069 is a standard for communication between CPEs and the auto‐configuration server (ACS). If
your service provider uses the TR069 automatic service provision function, the ACS automatically
provides the CPE parameters. If you set the ACS parameters on both the CPE and ACS, the network
parameters on the CPE are automatically set using the TR‐069 function, and you do not need to set
other parameters on the CPE.
To configure the CPE to implement the TR‐069 function, perform the following steps:
1. Choose System>TR‐069 Settings.
2. Set acs URL source. There are two methods, such as URL and DHCP.
3. In the ACS URL box, enter the ACS URL address.
4. Enter ACS user name and password for the CPE authentication.
To use the CPE to access the ACS, you must provide a user name and
password for authentication. The user name and the password must be the
same as those defined on the ACS.
5. If you set Periodic inform to Enable, set Periodic inform interval.
6. Set connection request user name and password.
7. Click Submit. As shown in Figure 8‐8.

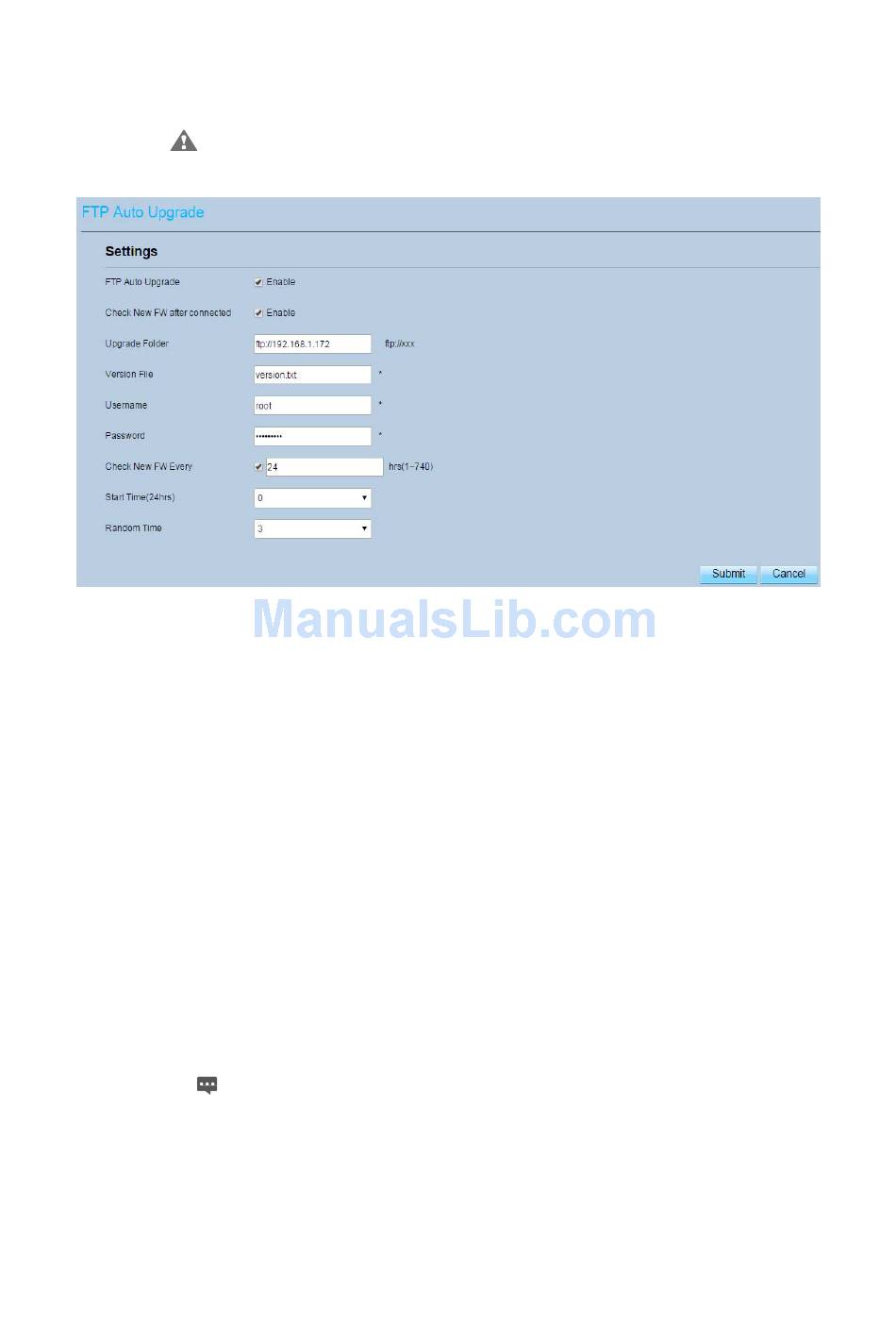

Figure 8‐7
