3.1.3 Setting Connect ODU
To set the WAN connect ODU, perform the following steps:
1.
Choose Network Setting>WAN Settings;
2.
In the Settings area, enable Connect ODU;
3.
Click Submit. As shown in Figure 3‐3.
3.1.4 WAN Network Parameters Setting
Set WAN connect mode as DHCP, perform the following steps:
1.
Choose Network Setting>WAN Settings;
2.
In the Settings area, Set connect mode as DHCP IP;
3.
Click Submit. As shown in Figure 3‐4.
Set WAN connect mode as Static IP, perform the following steps:
1.
Choose Network Setting>WAN Settings;
2.
In the Settings area, Set connect mode as Static IP;
3.
Setting IP address, Subnet mask, Gateway and DNS;
4.
Click Submit. As shown in Figure 3‐5.

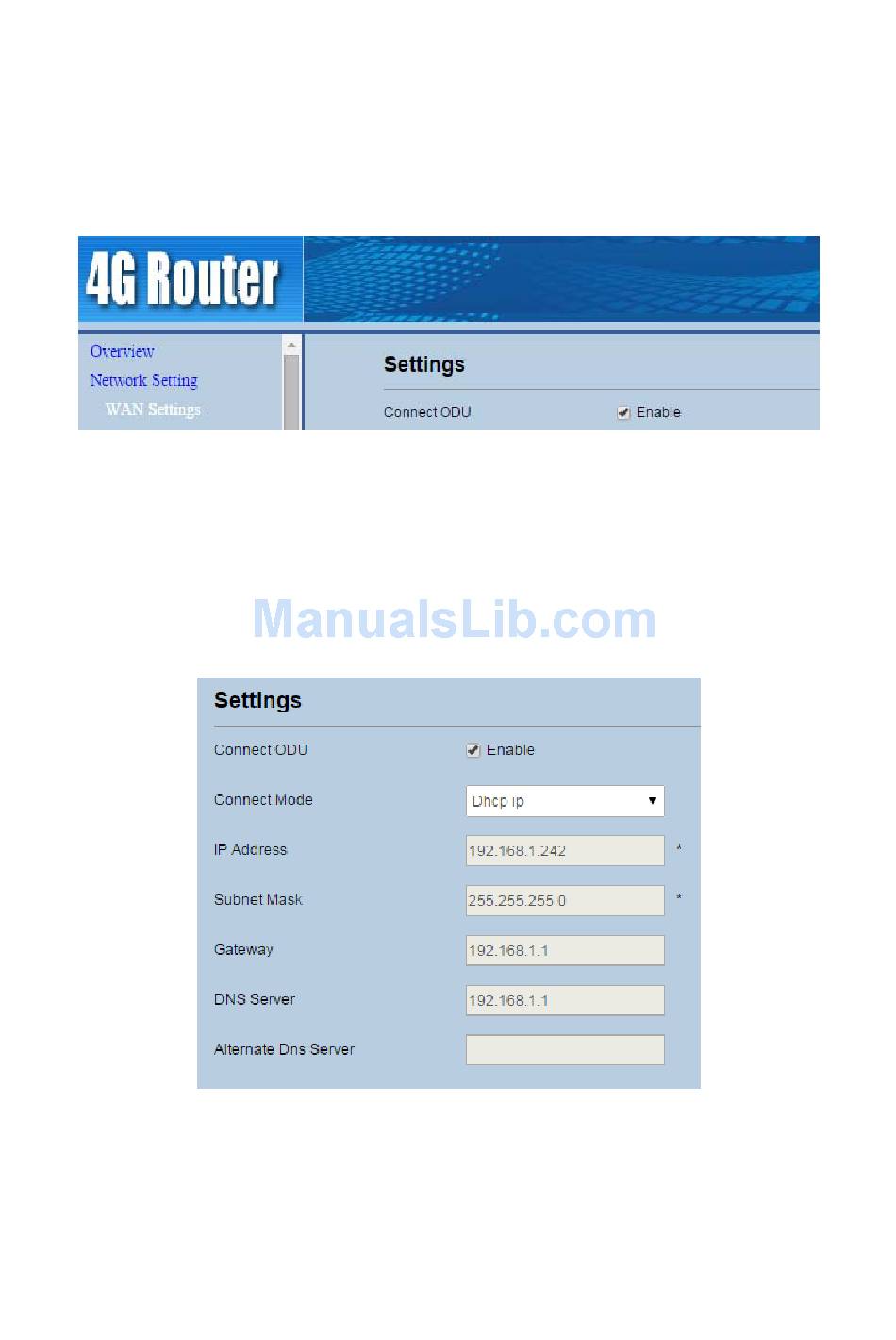

Figure 3‐3
Figure 3‐4
