8.5 ETHERNET 1­4 LEDs

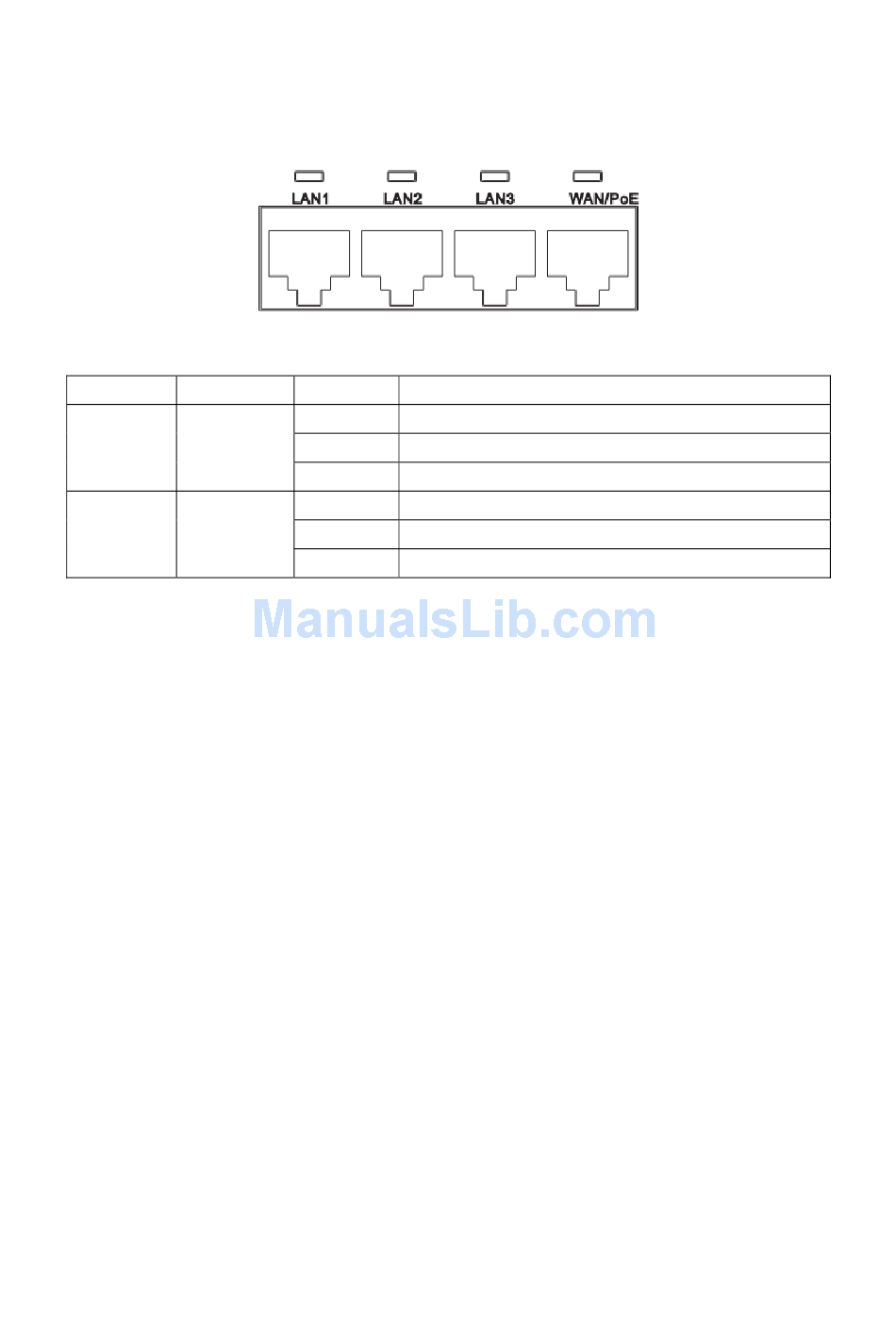

Figure 9‐6 ETHERNET 1~3 LEDs Symbol
Table 9‐5 ETHERNET 1‐3 LEDs Definition
LED COLOR
LAN1~LAN3 Green
WAN/POE Green
If the LED is off , please check:
Step 1 The LAN cable MUST be connected between device and PC.
Step 2 NIC function on the PC MUST be enabled.
Step 3 If the problem still persists, device hardware component may be defective, please contact
your local vendor.
Figure 8‐5
STATUS DESCRIPTION
Steady On
Ethernet connection is normal
Blinking
Ethernet interface data being transmitted
OFF
Ethernet connection is not established
Steady On
WAN connection is normal
Blinking
WAN interface data being transmitted
OFF
WAN connection is not established
