1. Choose VOIP > VOIP Information;
2. View the VOIP information, such as the SIP account and status of the SIP registration server.
As shown in Figure 7‐1.
7.2 Configuring SIP Server
To set the SIP server parameters, perform the following steps:
1. Choose VOIP > SIP Server;
2. In the User Agent port box, enter the port of the SIP account provided by your service
provider.
3. In the SIP server domain name box, enter the domain name of the SIP server.
4. In the Proxy server address box, enter the address of the proxy server provided by your
service provider, for example, 192.168.1.10.
5. In the Proxy server port box, enter the port of the proxy server provided by your service
provider, for example, 5060. The value ranges from 1 to 65535.
6. In the Registration server address box, enter the address of the registration server
provided by your service provider, for example, 192.168.1.11.
7. In the Registration server port box, enter the port of the registration server provided by
your service provider, for example, 5060. The value ranges from 1 to 65535.
8. Click Submit. As shown in Figure 7‐2.

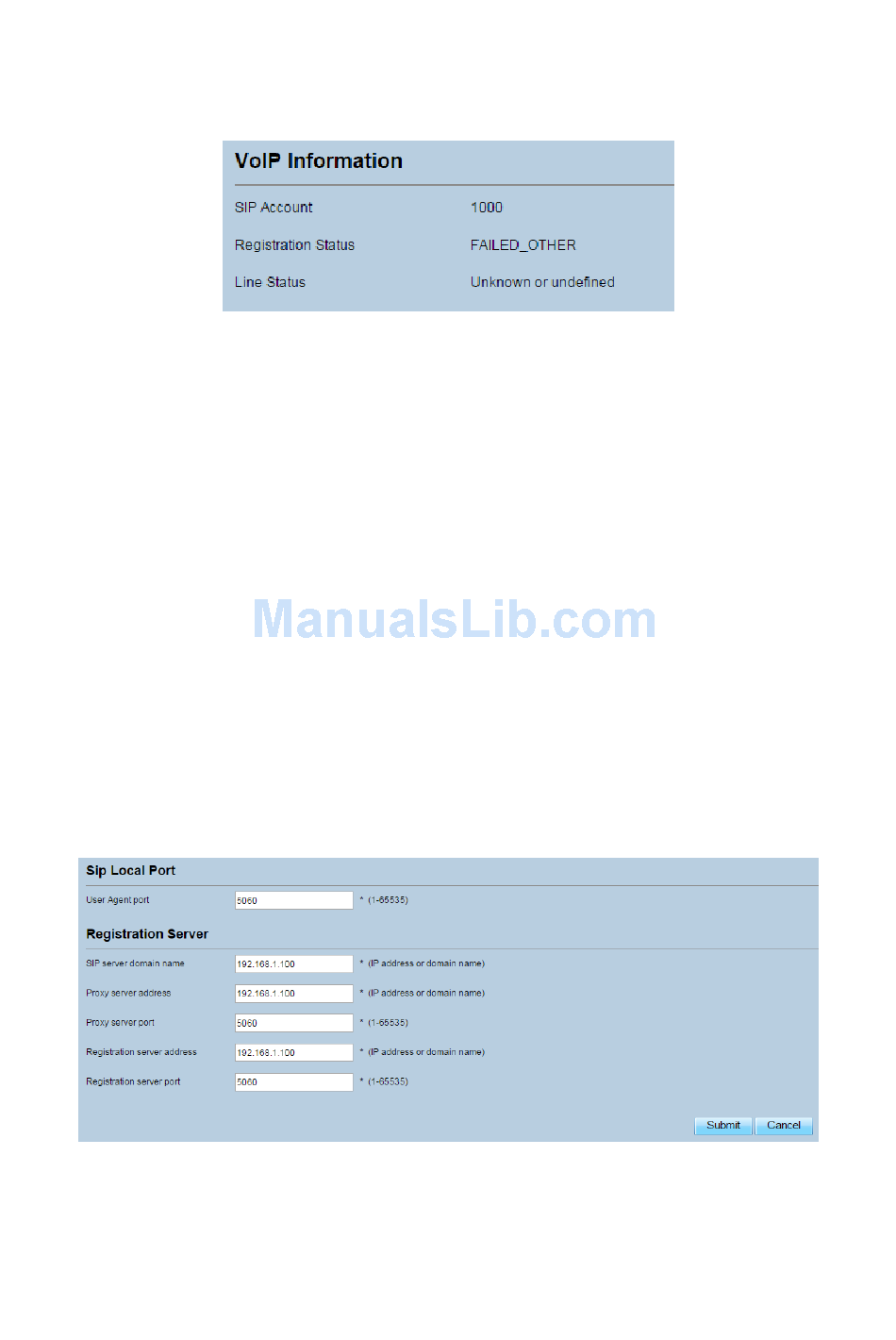

Figure 7‐1
Figure 7‐2
