To delete an item in the setup list, perform the following steps:
1. Choose Network Setting > LAN Settings.
2. Choose the item to be deleted, and click Delete.
3.4 DMZ Settings
If the demilitarized zone (DMZ) is enabled, the packets sent from the WAN are directly sent  to a
specified IP address on the LAN before being discarded by the firewall.
To set DMZ, perform the following steps:
1.
Choose Network Setting > DMZ Settings.
2.
Set DMZ to Enable.
3.
(Optional) Set ICMP Redirect to Enable.
4.
Set Host address.
This  IP  address  must  be  different  from  the  IP  address  set  on  the  LAN  Host
Settings page, but they must be on the same network segment.
5.
Click Submit. As shown in Figure 3‐11.

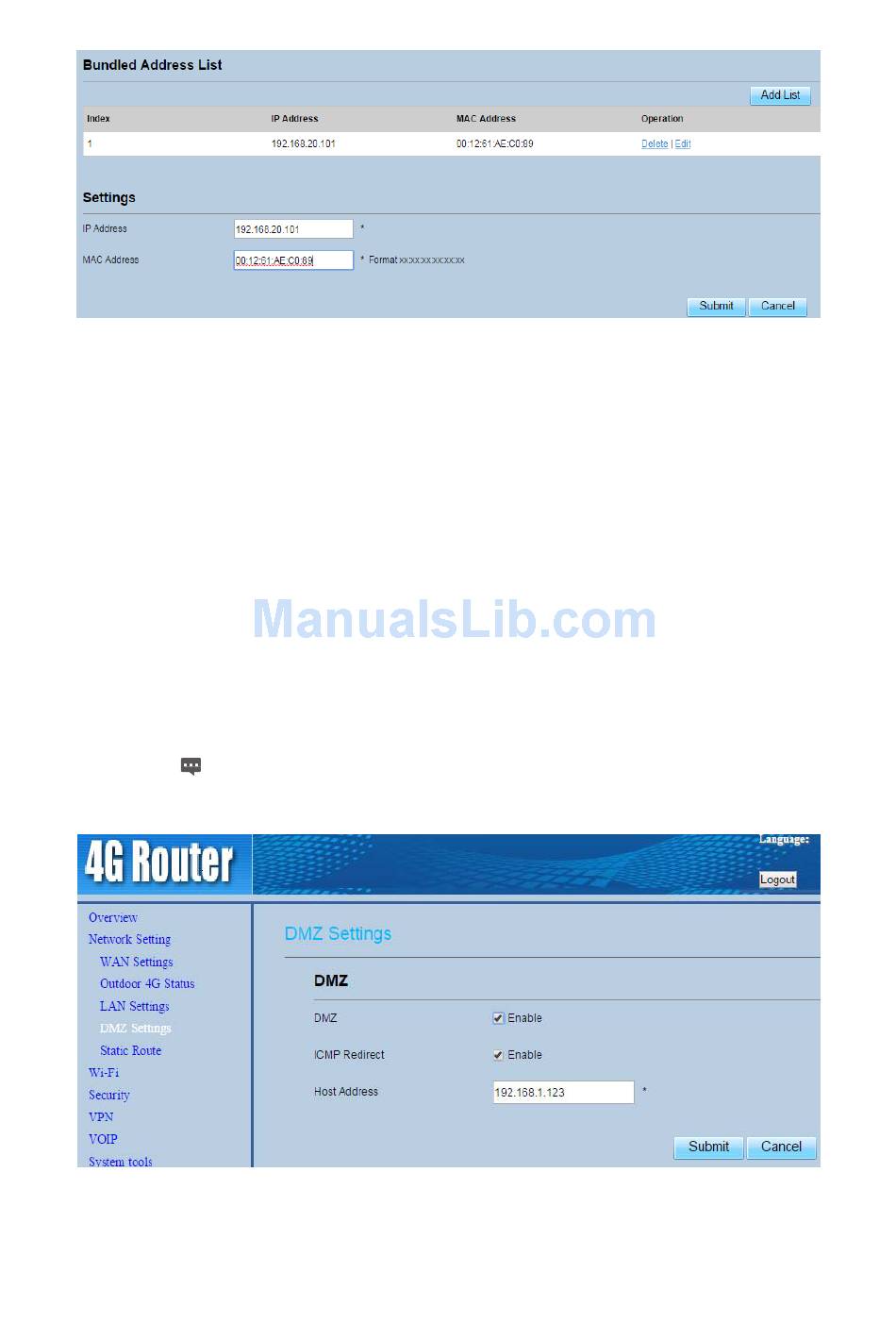

Figure 3‐10
Figure 3‐11
