Connect To The Internet - Observa Telecom LTE CPE SQI4N4 Quick Start Manual

3. If the diameter of pole between 25mm and 30mm, it's needed to use the rubber C-type ring to add the diameter
of the pole.
6 Connect to the Internet
Step 1 Open a web browser and enter the URL http://192.168.100.1 of indoor unit
Step 2 Enter the default Username and Password. Click Login. (Fields are case‐sensitive.)

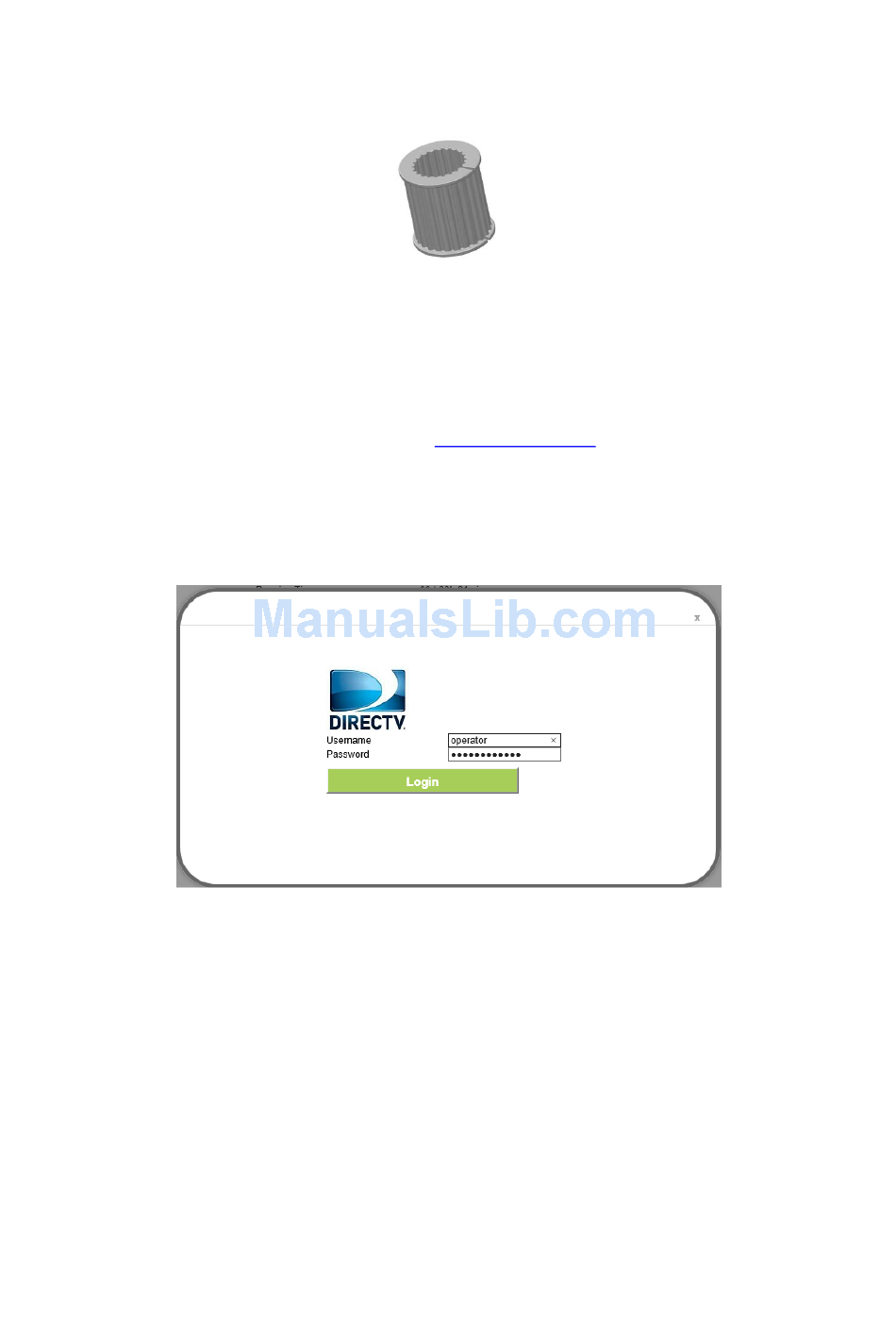

Figure 6‐1 Login Screen.
NOTE
If the login screen does not open, make sure internet browser's proxy settings disabled. Your
computer should also be set to get an IP address automatically from the LTE Router DHCP Server,
192.168.100.100 to 254.
Figure 5‐5
C-type ring
Figure 6‐1
