Observa Telecom LTE CPE SQI4N4 Quick Start Manual page 34

3.5 Static Route
3.5.1 Add Static Route
To add a static route, perform the following steps:
1. Choose Network Setting>Static Route.
2. Click Add list.
3. Set the Dest IP address and Subnet mask.
4. Select an Interface from the drop‐down list.
5. If you select LAN as the interface, you need set a Gateway.
6. Click Submit. As shown in Figure 3‐12.
3.5.2 Modify Static Route
To modify an access restriction rule, perform the following steps:
1. Choose Security>Static Route.
2. Choose the item to be modified, and click Edit.
3. Repeat steps 3 through 5 in the previous procedure.
4. Click Submit. As shown in Figure 3‐13.

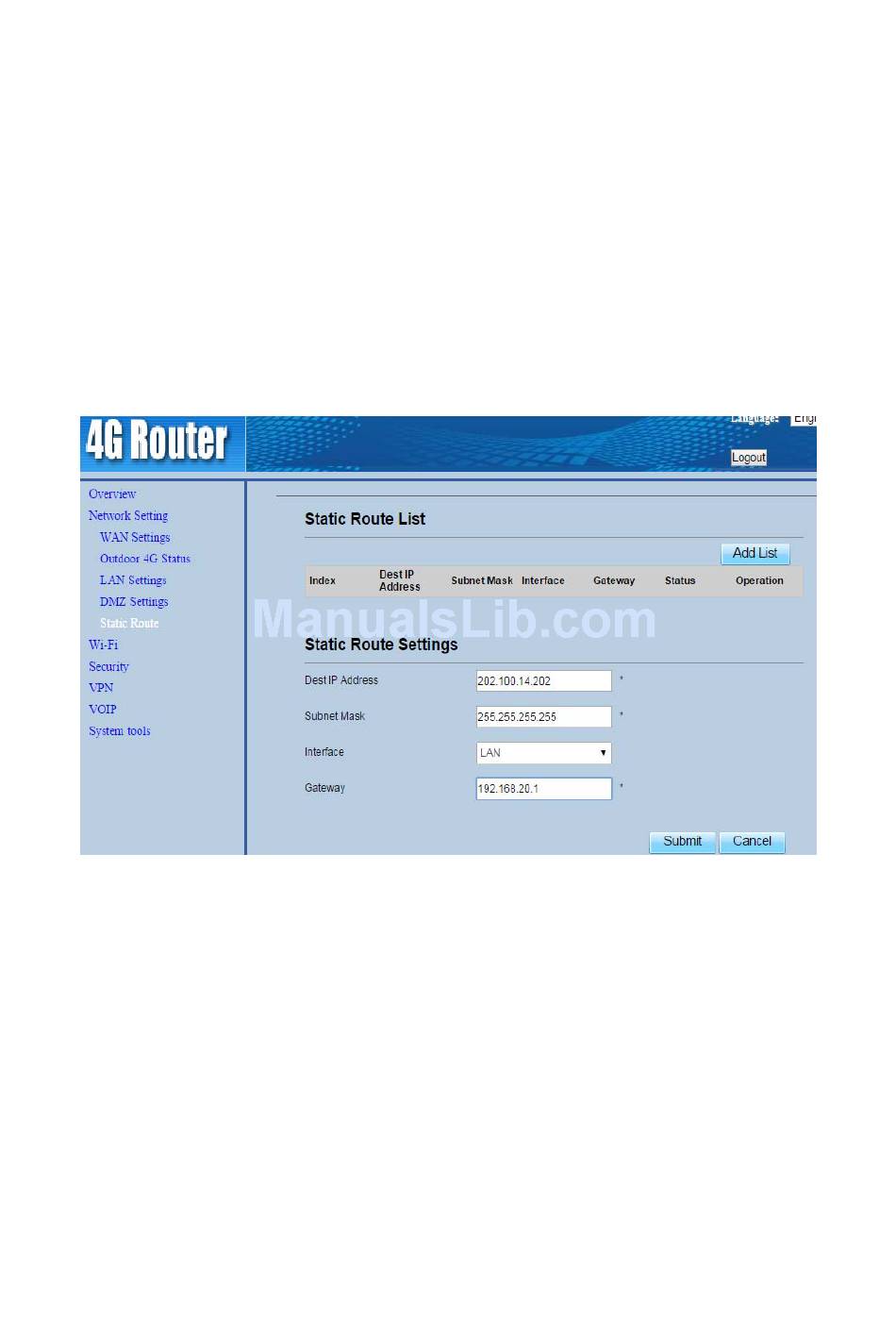

Figure 3‐12
