Observa Telecom LTE CPE SQI4N4 Quick Start Manual page 55

2. Click Restart. As shown in Figure 8‐1.
The CPE then restarts.
8.1.2 Reset
This function enables you to restore the CPE to its default settings.
To restore the CPE, perform the following steps:
1. Choose System>Maintenance.
2. Click Reset. As shown in Figure 8‐2.
The CPE is then restored to its default settings.
8.1.3 Backup Configuration File
You can download the existing configuration file to back it up. To do so:
1. Choose System>Maintenance.
2. Click Download on the Maintenance page.
3. In the displayed dialog box, select the save path and name of the configuration file to be
backed up.
4. Click Save. As shown in Figure 8‐3.
The procedure for file downloading may vary with the browser you are using.

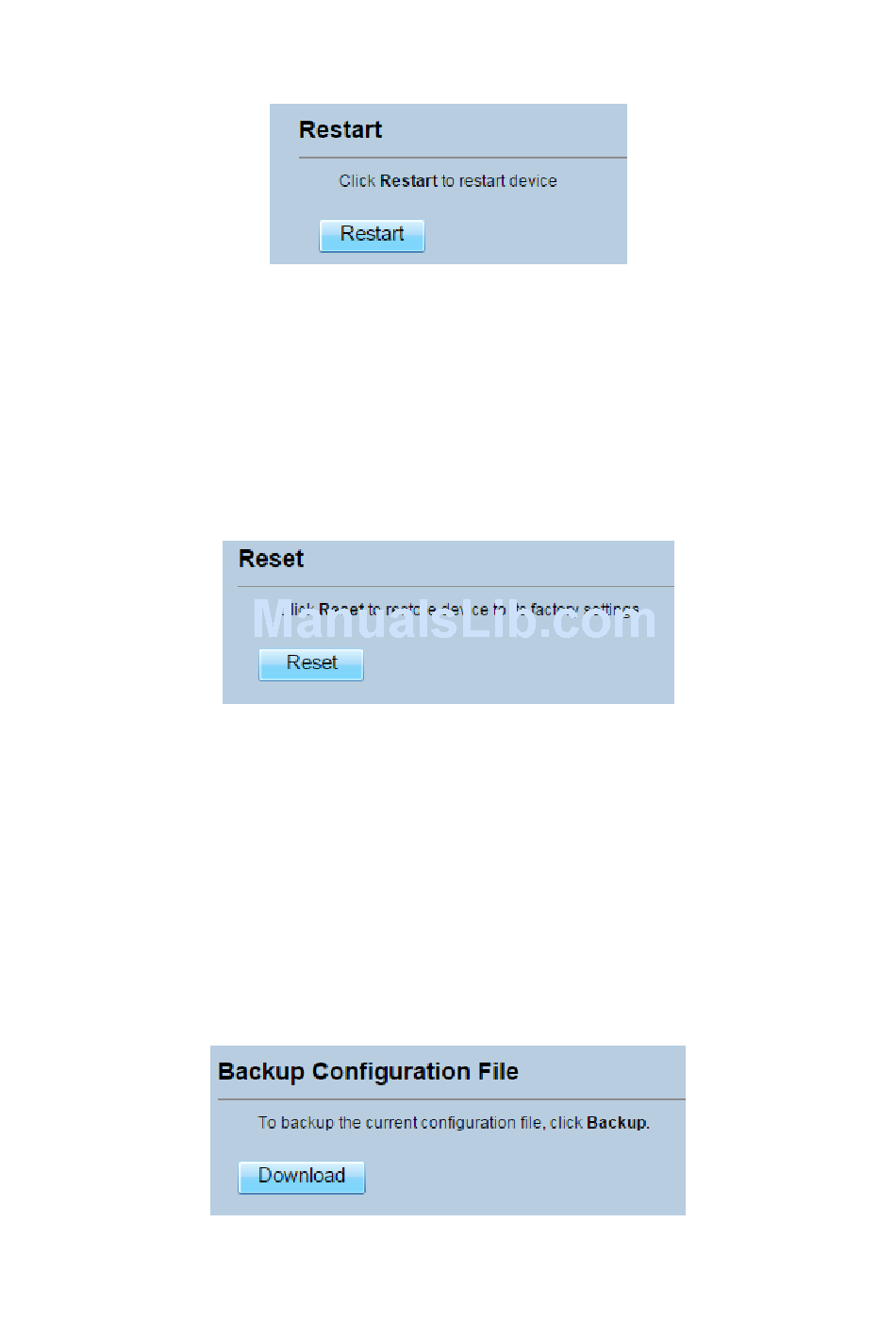

Figure 8‐1
Figure 8‐2
Figure 8‐3
