Observa Telecom LTE CPE SQI4N4 Quick Start Manual page 44

5.1.7 Deleting MAC Filtering rule
To delete a MAC address filter rule, perform the following steps:
1. Choose Security>MAC Filtering.
2. Choose the rule to be deleted, and click Delete. As shown in Figure 5‐7.
5.2 IP Filtering
Data is filtered by IP address. This page enables you to configure the IP address filtering rules.
5.2.1 Enabling IP Filtering
To enable IP Filtering, perform the following steps:
1. Choose Security>IP Filtering.
2. Set IP Filtering Enable.
3.
Click Submit. As shown in Figure 5‐8.
5.2.2 Disabling IP Filtering
To disable IP Filtering, perform the following steps:
1. Choose Security>IP Filtering.
2. Set IP Filtering Disable.
3. Click Submit. As shown in Figure 5‐9.

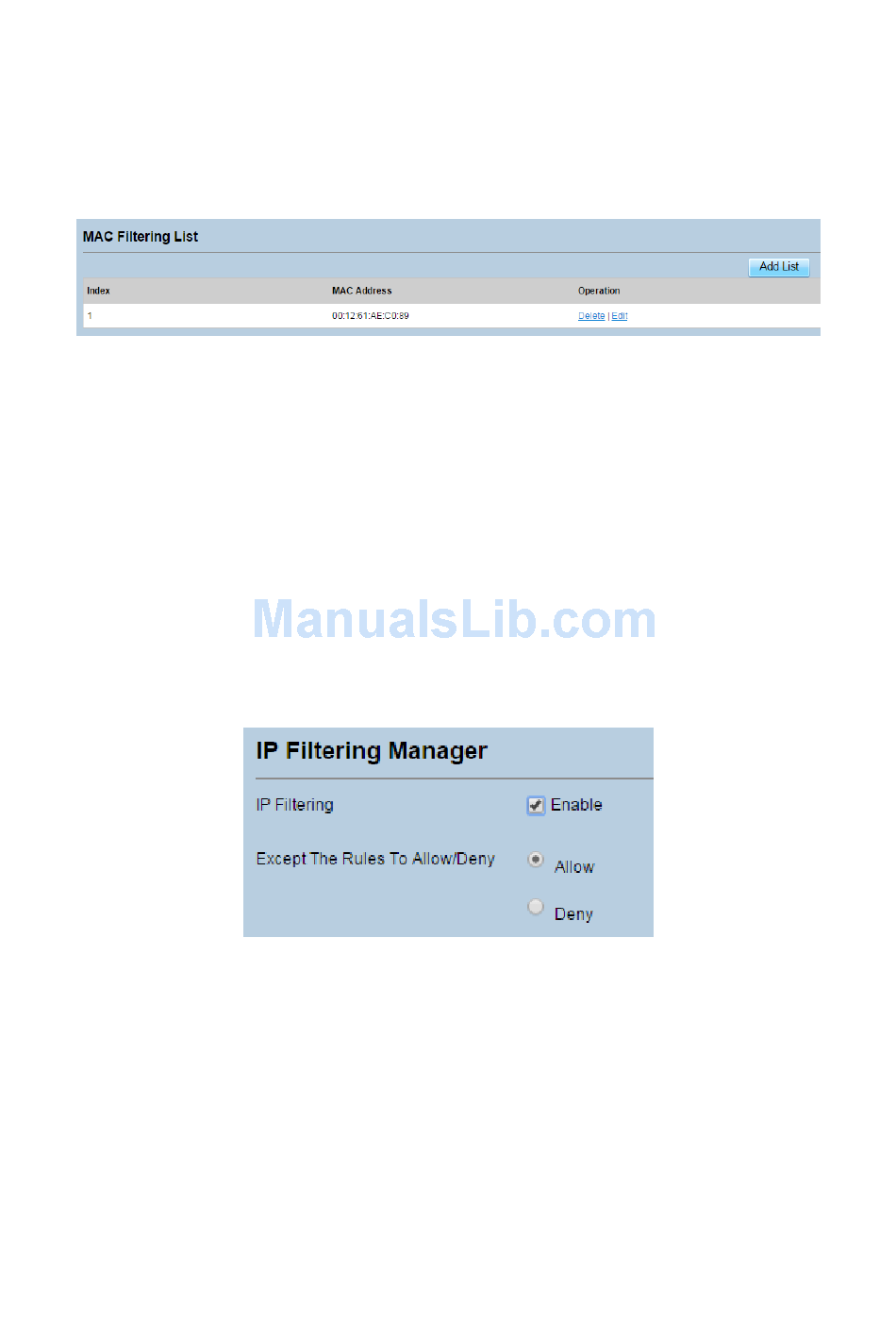

Figure 5‐7
Figure 5‐8
