Observa Telecom LTE CPE SQI4N4 Quick Start Manual page 43

5.1.5 Adding MAC Filtering rule
To add a MAC filtering rule, perform the following steps:
1. Choose Security>MAC Filtering.
2. Click Add list.
3. Set MAC address.
4. Click Submit. As shown in Figure 5‐5.
5.1.6 Modifying MAC Filtering rule
To modify a MAC address rule, perform the following steps:
1. Choose Security>MAC Filtering.
2. Choose the rule to be modified, and click Edit.
3. Set MAC address.
4.
Click Submit. As shown in Figure 5‐6.

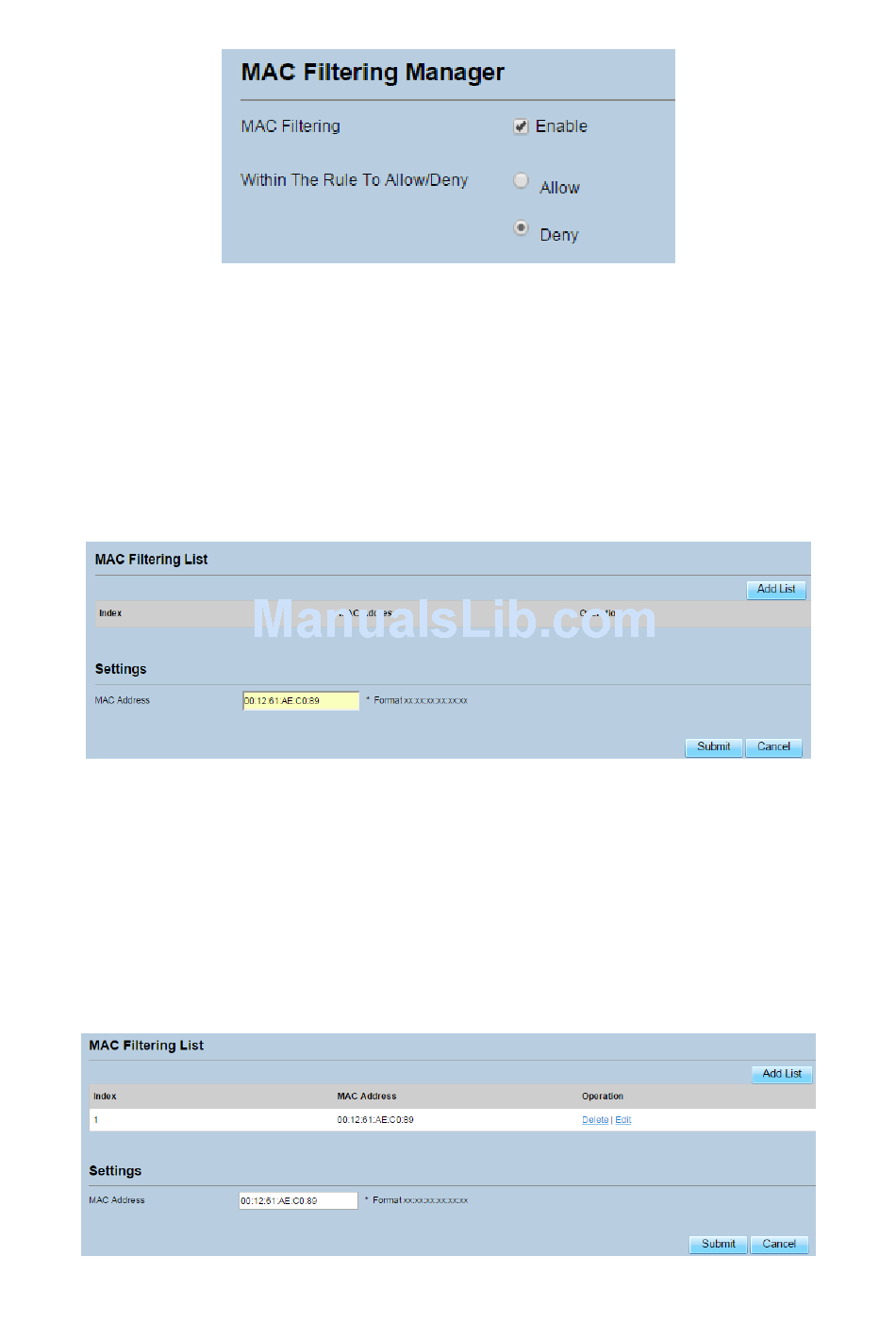

Figure 5‐4
Figure 5‐5
Figure 5‐6
