2. Launch Internet Explorer, enter http://192.168.1.1 in the address bar, and press Enter. As
shown in Figure 1‐1.
3. Enter the user name and password, and click Log In.
You can log in to the web management page after the password is verified. As shown in Figure 1‐2.
The default user name and password are both admin.
To protect your CPE from unauthorized access, change the password after your first
login.
The CPE supports diagnostic function. If you encounter problems, please contact
customer service for the specific using method.
To ensure your data safety, it is recommended that you turn on the firewall, and
conserve your login and FTP password carefully.
2 Overview
2.1 Viewing the System Information
To view the System Information, perform the following steps:
1. Choose Overview;
2. In the System Information area, view the system status, such as Running time. As shown in
Figure 2‐1.

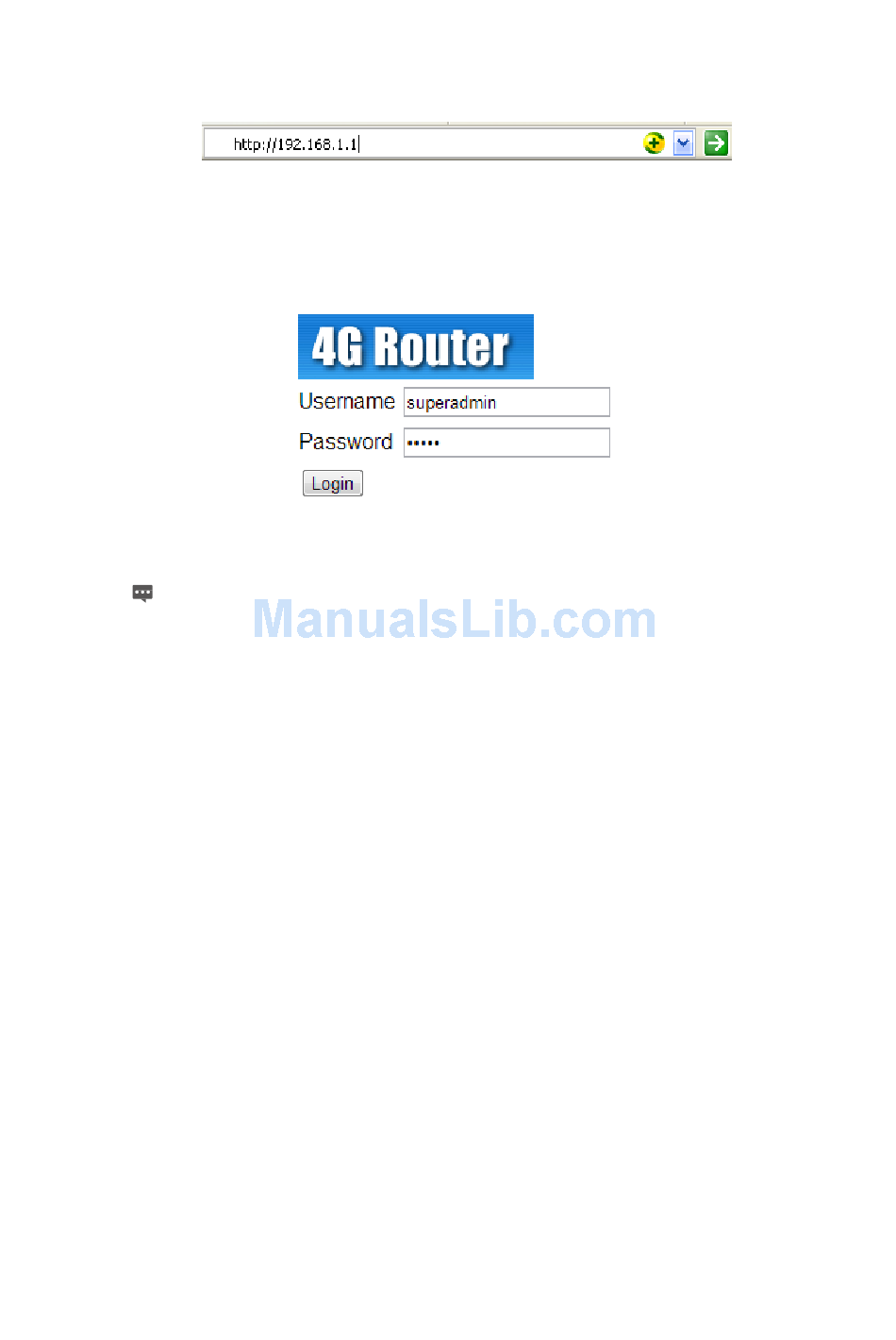

Figure 1‐1
Figure 1‐2
