Installation

This section describes installation of the DMS matrix switchers, including
connections and features. Topics that are covered include:
•

Rear Panel

•
Front Panel
Rear Panel

I/O Board Configuration Overview

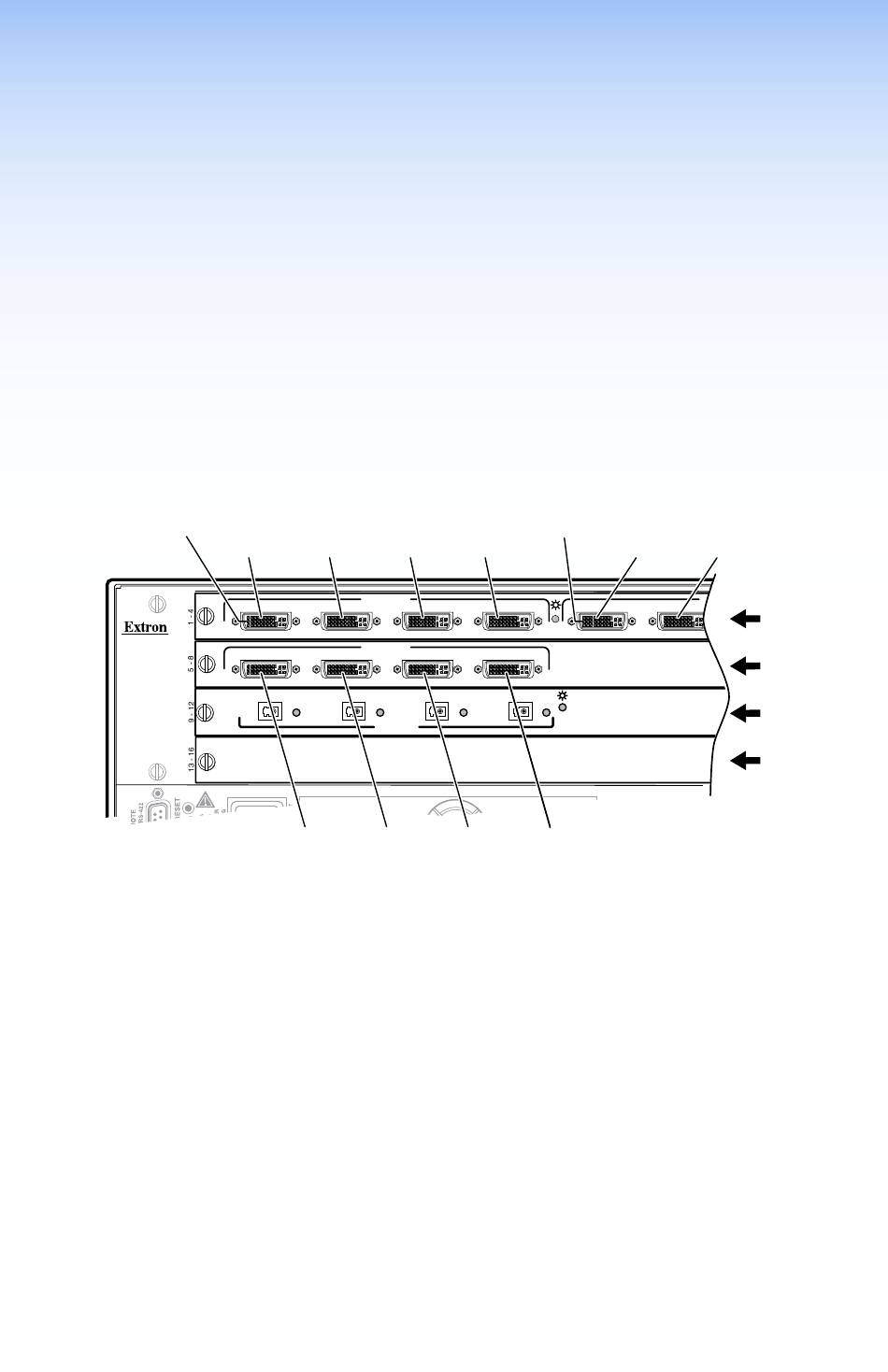

See figure 2. Each I/O board is identified by the input and output
connector numbers supported by the board position. The input and
output numbers on the boards are identified as locations A through D.
Location A
Input
Input 1
ANAHEIM, CA
100-240V 50/60Hz 1.2A MAX.
Figure 2.
The board position designators correspond to the input and output
numbers served by that position (1 through 4, 5 through 8, and so on).
The location designators, A through D, correspond to the DVI input or
output, grouped with inputs on the left and outputs on the right and
numbered from left to right.
The input numbers supported by the I/O board in slot 2 (locations
5 through 8) are as follows: A = 5, B = 6, C = 7, D = 8.
Input 2 Input 3
DVI-D INPUTS
A B C
DVI-D INPUTS
A B C
A B
TMDS
FIBER
INPUTS
PRIMARY POWER SUPPLY
Input 5 Input 6
Arrangement of Inputs and Outputs on the I/O Boards
