5.2.1 Data Memory Access Times
5.3

EEPROM Data Memory

ATtiny13A
16
When using register indirect addressing modes with automatic pre-decrement and post-incre-
ment, the address registers X, Y, and Z are decremented or incremented.
The 32 general purpose working registers, 64 I/O Registers, and the 64 bytes of internal data
SRAM in the ATtiny13A are all accessible through all these addressing modes. The Register
File is described in "General Purpose Register File" on page

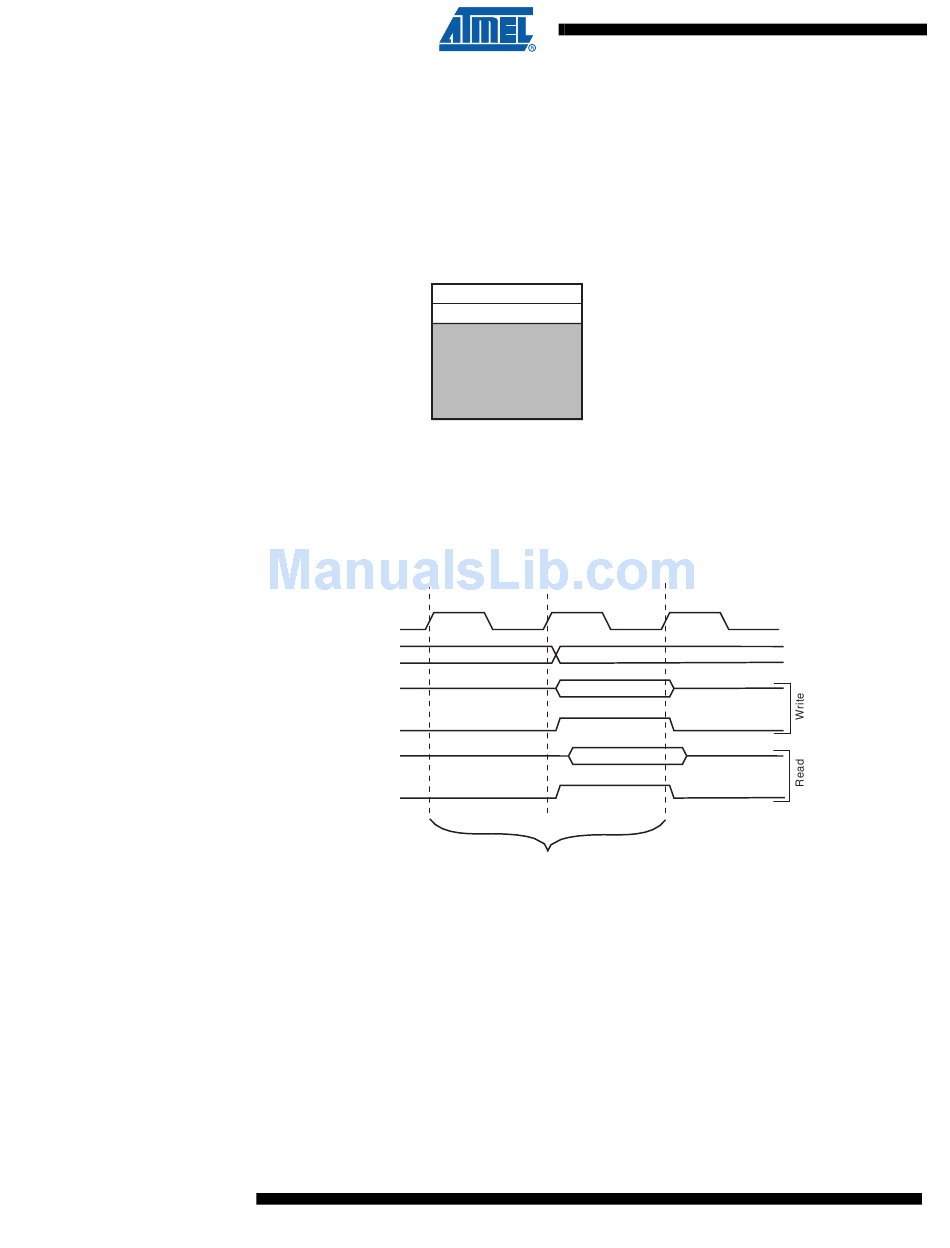

Figure 5-2. Data Memory Map
This section describes the general access timing concepts for internal memory access. The
internal data SRAM access is performed in two clk
Figure 5-3. On-chip Data SRAM Access Cycles
clk
CPU
Address
Data
WR
Data
RD
The ATtiny13A contains 64 bytes of data EEPROM memory. It is organized as a separate data
space, in which single bytes can be read and written. The EEPROM has an endurance of at
least 100,000 write/erase cycles. The access between the EEPROM and the CPU is described
in the following, specifying the EEPROM Address Registers, the EEPROM Data Register, and
the EEPROM Control Register. For a detailed description of Serial data downloading to the
EEPROM, see page 106.
Data Memory
0x0000 - 0x001F
32 Registers
0x0020 - 0x005F
64 I/O Registers
0x0060
Internal SRAM
(64 x 8)
0x009F
CPU
T1 T2
Address valid
Compute Address
Memory Access Instruction
10.
cycles as described in Figure
T3
Next Instruction
5-3.
