5 SETTINGS
c) PHASE OVERVOLTAGE (ANSI 59P, IEC PTOV)

PATH: SETTINGS GROUPED ELEMENTS
 PHASE
 OVERVOLTAGE1
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
The phase overvoltage element may be used as an instantaneous element with no intentional time delay or as a definite
time element. The input voltage is the phase-to-phase voltage, either measured directly from delta-connected VTs or as cal-
culated from phase-to-ground (wye) connected VTs. The specific voltages to be used for each phase are shown below.
SETTING
PHASE OV1
FUNCTION:
Disabled = 0
Enabled = 1
SETTING
AND
PHASE OV1
BLOCK:
Off = 0
SETTING
PHASE OV1
SOURCE:
Source VT = Delta
VAB
VBC
VCA
Source VT = Wye
If the source VT is wye-connected, then the phase overvoltage pickup condition is
and V .
CA
NOTE
GE Multilin

SETTING GROUP 1(6)
PHASE OV1
FUNCTION: Disabled
PHASE OV1 SIGNAL
SOURCE: SRC 1
PHASE OV1
PICKUP: 1.000 pu
PHASE OV1 PICKUP
DELAY: 1.00 s
PHASE OV1 RESET
DELAY: 1.00 s
PHASE OV1 BLOCK:
Off
PHASE OV1
TARGET: Self-reset
PHASE OV1
EVENTS: Disabled
SETTINGS
PHASE OV1 PICKUP
SETTING
DELAY:
PHASE OV1 PHASE OV1 RESET
PICKUP: DELAY:
RUN t PKP
≥
VAB PICKUP
RUN
t PKP
≥
VBC PICKUP
RUN
≥
VCA PICKUP
t PKP

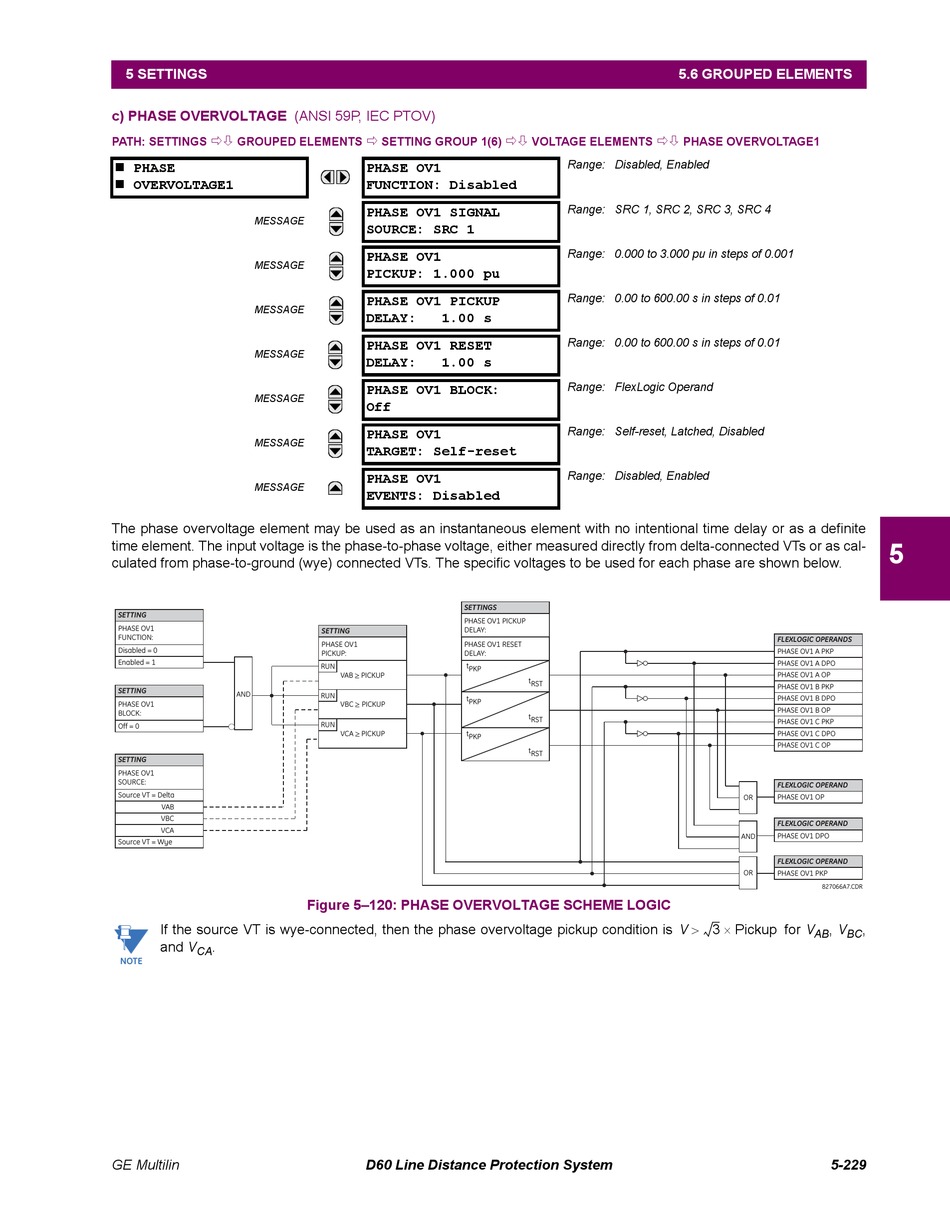

Figure 5–120: PHASE OVERVOLTAGE SCHEME LOGIC
D60 Line Distance Protection System
5.6 GROUPED ELEMENTS
 
VOLTAGE ELEMENTS PHASE OVERVOLTAGE1
Range: Disabled, Enabled
Range: SRC 1, SRC 2, SRC 3, SRC 4
Range: 0.000 to 3.000 pu in steps of 0.001
Range: 0.00 to 600.00 s in steps of 0.01
Range: 0.00 to 600.00 s in steps of 0.01
Range: FlexLogic Operand
Range: Self-reset, Latched, Disabled
Range: Disabled, Enabled
t RST
t RST
t RST
V
FLEXLOGIC OPERANDS
PHASE OV1 A PKP
PHASE OV1 A DPO
PHASE OV1 A OP
PHASE OV1 B PKP
PHASE OV1 B DPO
PHASE OV1 B OP
PHASE OV1 C PKP
PHASE OV1 C DPO
PHASE OV1 C OP
FLEXLOGIC OPERAND
OR PHASE OV1 OP
FLEXLOGIC OPERAND
AND PHASE OV1 DPO
FLEXLOGIC OPERAND
OR PHASE OV1 PKP
827066A7.CDR
 
3 Pickup for V , V ,
AB BC
