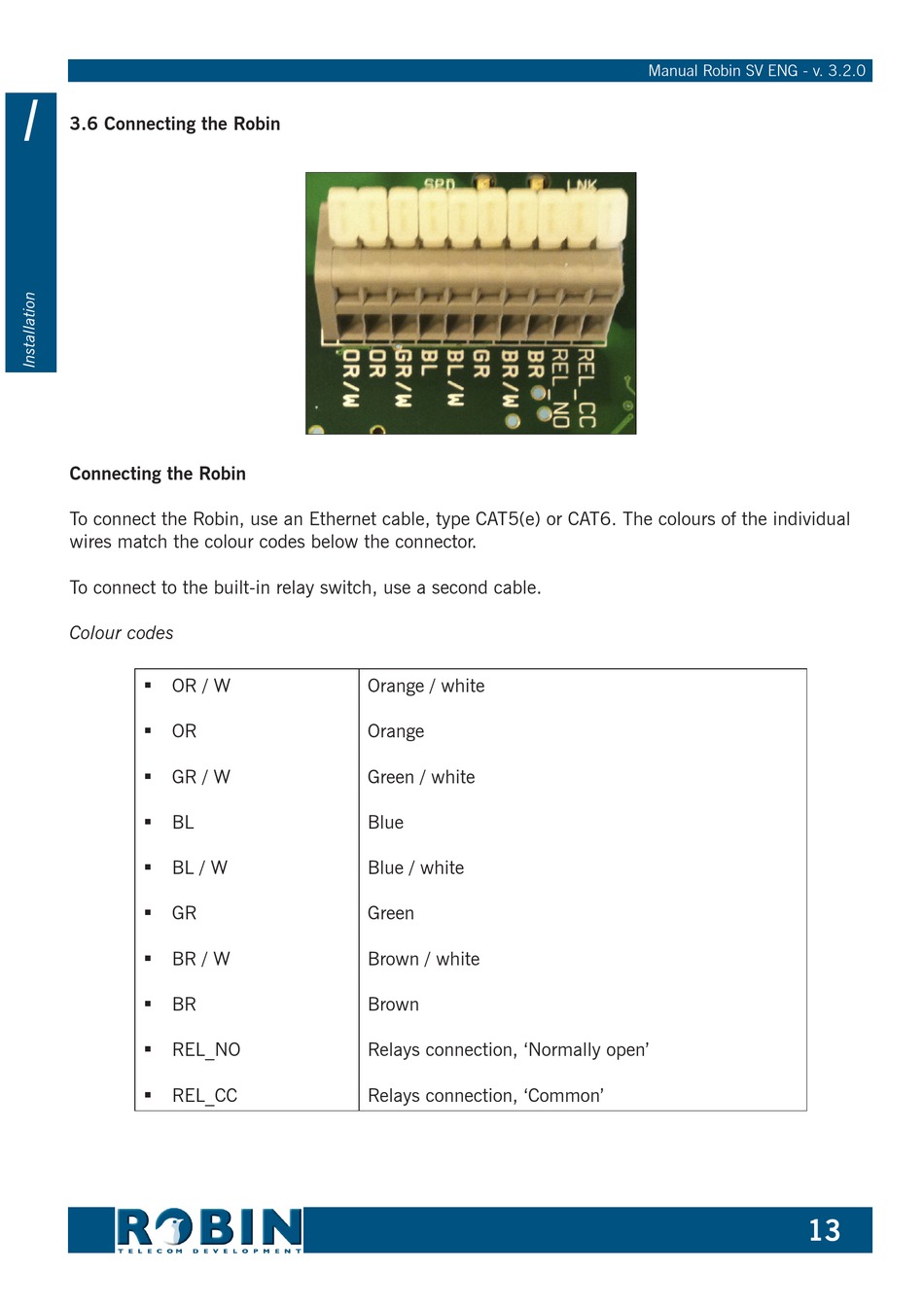

3.6 Connecting the Robin

Connecting the Robin
To connect the Robin, use an Ethernet cable, type CAT5(e) or CAT6. The colours of the individual
wires match the colour codes below the connector.
To connect to the built-in relay switch, use a second cable.
Colour codes
 OR / W
 OR
 GR / W
 BL
 BL / W
 GR
 BR / W
 BR
 REL_NO
 REL_CC
gf13
Orange / white
Orange
Green / white
Blue
Blue / white
Green
Brown / white
Brown
Relays connection, 'Normally open'
Relays connection, 'Common'
