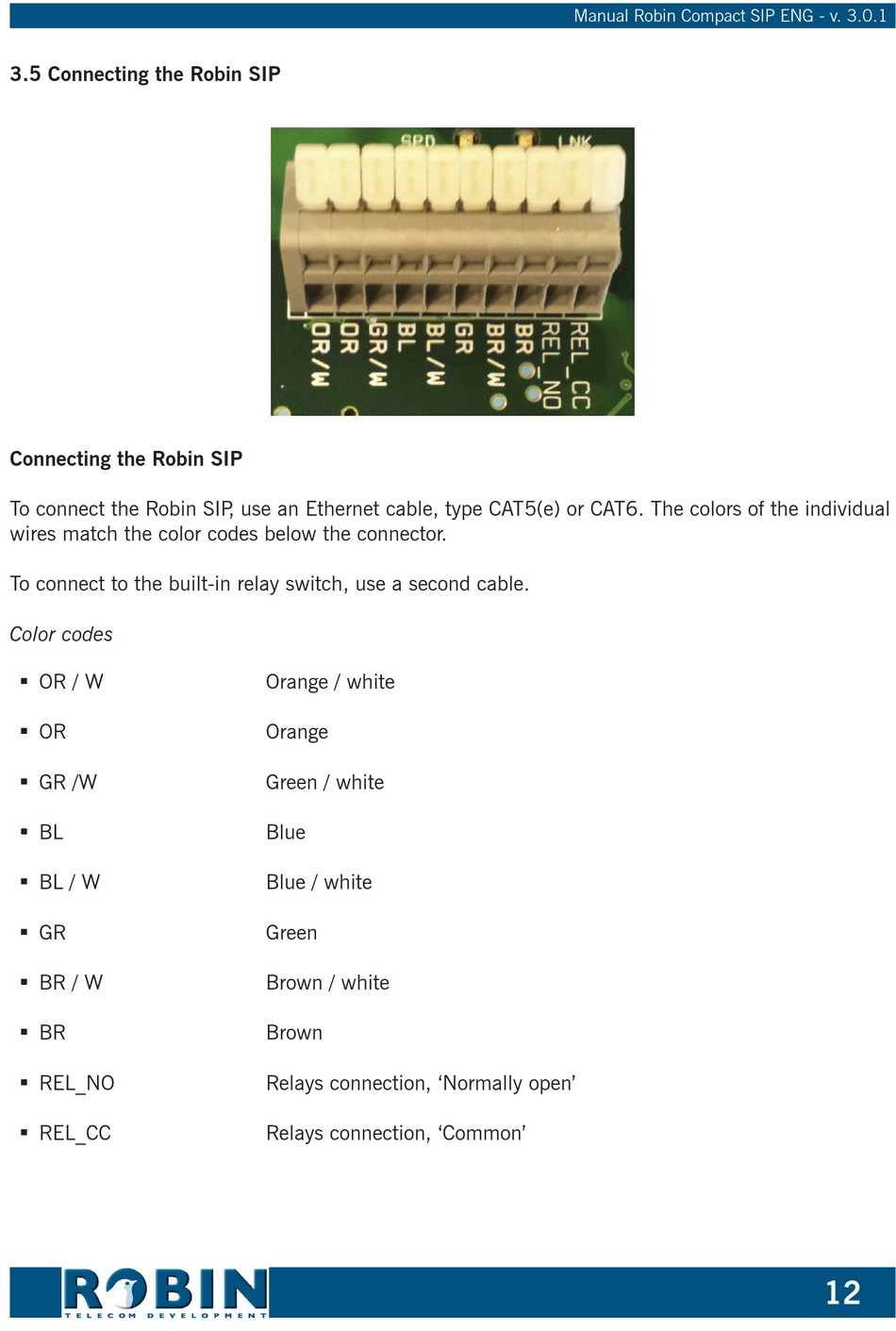

3.5 Connecting the Robin SIP

Connecting the Robin SIP
To connect the Robin SIP , use an Ethernet cable, type CAT5(e) or CAT6. The colors of the individual
wires match the color codes below the connector.
To connect to the built-in relay switch, use a second cable.
Color codes
 OR / W
 OR
 GR /W
 BL
 BL / W
 GR
 BR / W
 BR
 REL_NO
 REL_CC
gf12
Orange / white
Orange
Green / white
Blue
Blue / white
Green
Brown / white
Brown
Relays connection, 'Normally open'
Relays connection, 'Common'
Manual Robin Compact SIP ENG - v. 3.0.1
12
