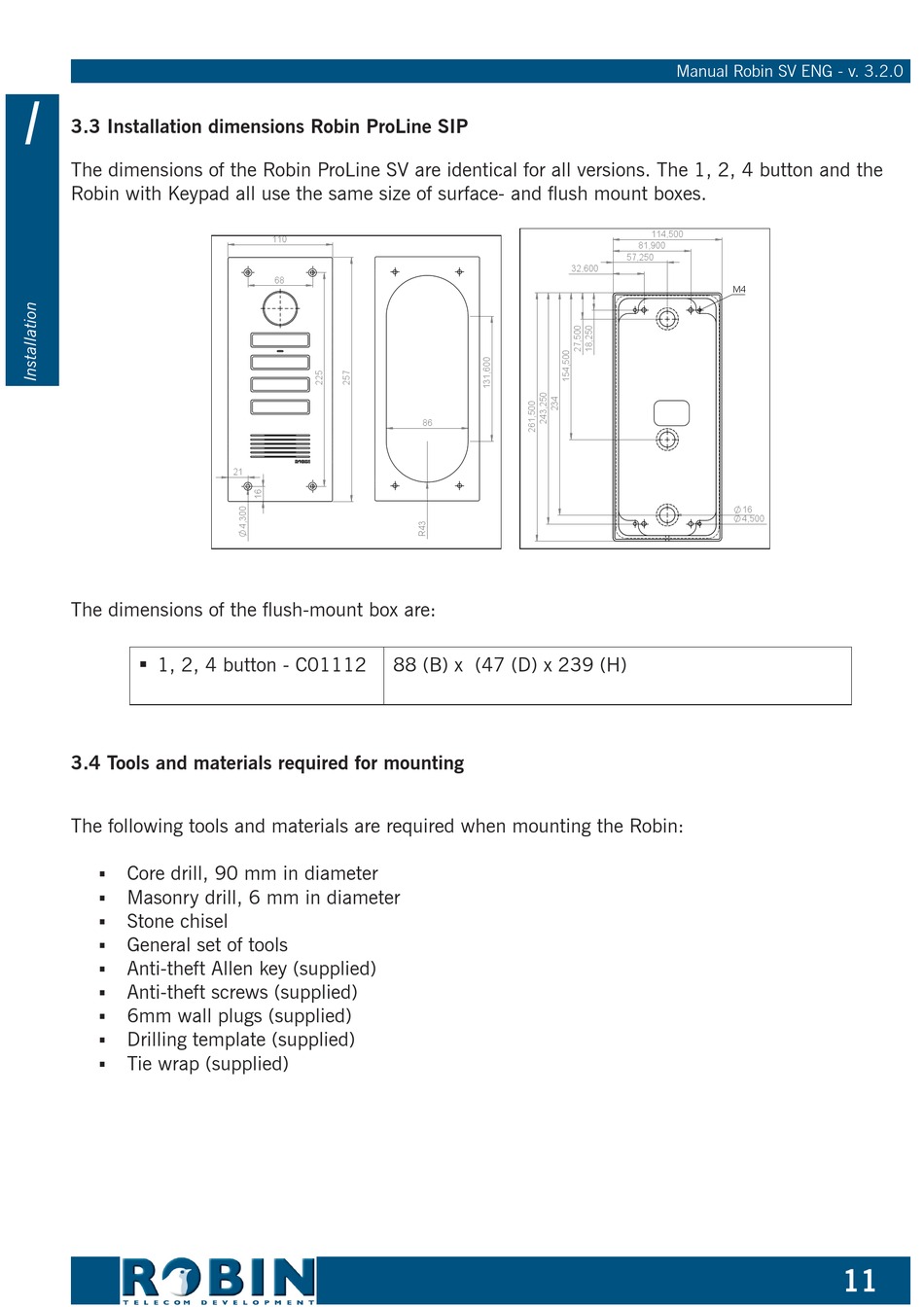

3.3 Installation dimensions Robin ProLine SIP

The dimensions of the Robin ProLine SV are identical for all versions. The 1, 2, 4 button and the
Robin with Keypad all use the same size of surface- and flush mount boxes.
A
B
C
D
The dimensions of the flush-mount box are:
 1, 2, 4 button - C01112

3.4 Tools and materials required for mounting

The following tools and materials are required when mounting the Robin:
Core drill, 90 mm in diameter

Masonry drill, 6 mm in diameter

Stone chisel

General set of tools

Anti-theft Allen key (supplied)

Anti-theft screws (supplied)

6mm wall plugs (supplied)

Drilling template (supplied)

Tie wrap (supplied)

1 2
110
68
21
1 2
88 (B) x (47 (D) x 239 (H)
gf11
3 4
1 2
A
32,600
B
86
Tekenaar : Wouter Steffens
C
Titel: Proline SV 4v
Maateenheid: mm
Algemene tolerantie : +/-0.1
Materiaal : 3.3315 (EN-AW 5005)
Afwerking : Blank anodiseren
Pagina : 1 van 1
FlatOut Engineering
Flemingstraat 50
1704 SL Heerhugowaard
Tel. 072-5611325
Fax. 072-5346403
www.flatoutengineering.nl
D
3 4
1 2
Manual Robin SV ENG - v. 3.2.0
5 6
3 4
114,500
A
81,900
57,250
M4
B
C
Datum : 7-4-2017 11:18:41
ART.nr : 8520168
Revisie :V1.0
vlakheid: +/-0.2
Schuur afwerking : 3 SK 120 grof
Anodisatie diepte : 17/20µ
Schaal: 1:2
Opmerkingen:
16
4,500
D
A4
5 6
3 4
5 6
Tekenaar : Wouter Steffens Datum : 20-1-2017 11:32:12
Titel: Proline & Classic opbouwbak ART.nr : C03001
Maateenheid: mm Revisie :V1.0
Algemene tolerantie : +/-0.1 vlakheid: +/-0.2
Materiaal : Aw-6082 Schuur afwerking :
Afwerking : ZW of BL anodiseren Anodisatie diepte : 17/20µ
Pagina : 1 van 1 Schaal: 1:2
FlatOut Engineering
Opmerkingen:
Flemingstraat 50
1704 SL Heerhugowaard
Tel. 072-5611325
Fax. 072-5346403
www.flatoutengineering.nl
5 6
