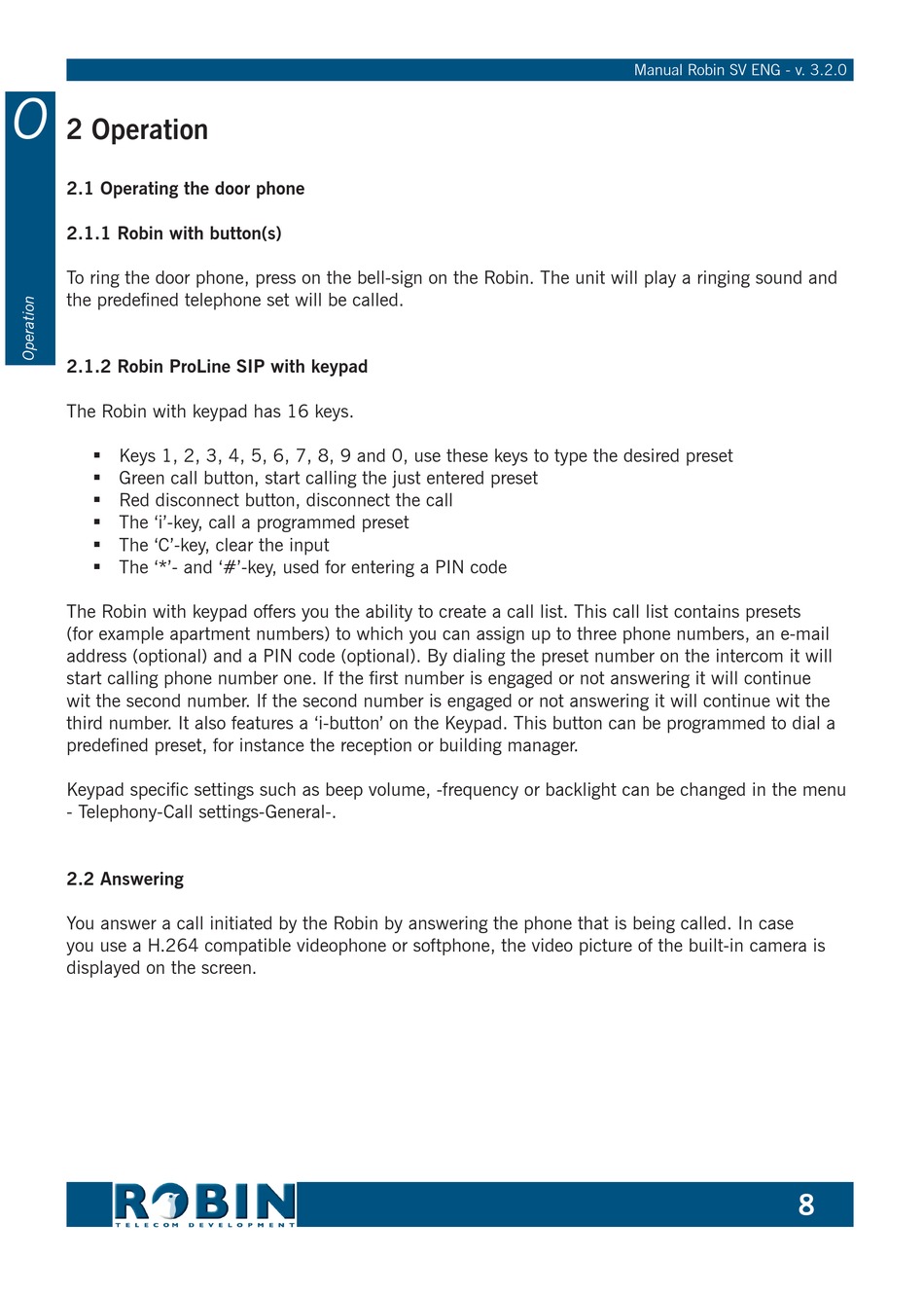

2 Operation

2.1 Operating the door phone

2.1.1 Robin with button(s)

To ring the door phone, press on the bell-sign on the Robin. The unit will play a ringing sound and
the predefined telephone set will be called.

2.1.2 Robin ProLine SIP with keypad

The Robin with keypad has 16 keys.
 Keys 1, 2, 3, 4, 5, 6, 7, 8, 9 and 0, use these keys to type the desired preset
 Green call button, start calling the just entered preset
 Red disconnect button, disconnect the call
 The 'i'-key, call a programmed preset
 The 'C'-key, clear the input
 The '*'- and '#'-key, used for entering a PIN code
The Robin with keypad offers you the ability to create a call list. This call list contains presets
(for example apartment numbers) to which you can assign up to three phone numbers, an e-mail
address (optional) and a PIN code (optional). By dialing the preset number on the intercom it will
start calling phone number one. If the first number is engaged or not answering it will continue
wit the second number. If the second number is engaged or not answering it will continue wit the
third number. It also features a 'i-button' on the Keypad. This button can be programmed to dial a
predefined preset, for instance the reception or building manager.
Keypad specific settings such as beep volume, -frequency or backlight can be changed in the menu
- Telephony-Call settings-General-.

2.2 Answering

You answer a call initiated by the Robin by answering the phone that is being called. In case
you use a H.264 compatible videophone or softphone, the video picture of the built-in camera is
displayed on the screen.
