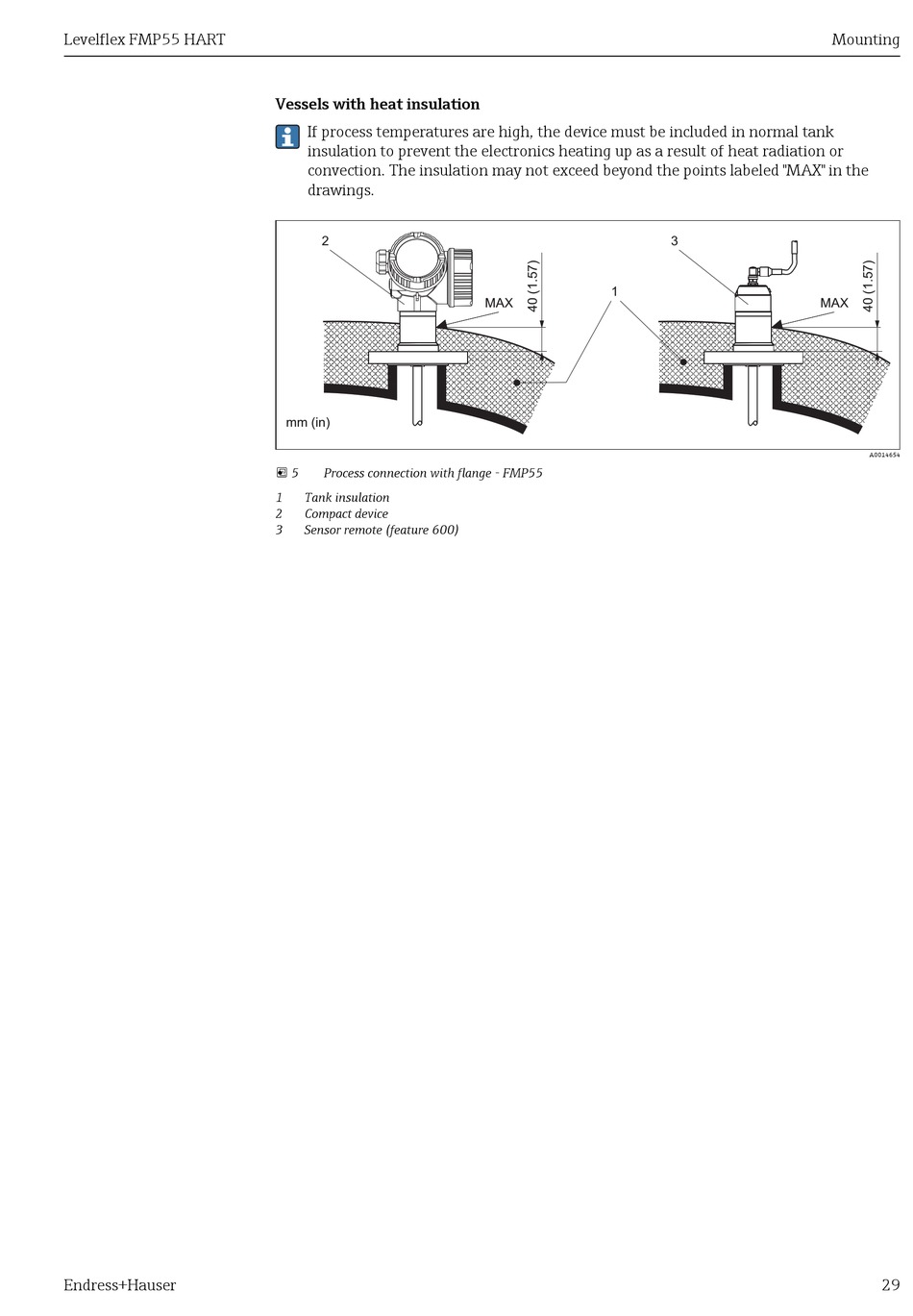

Vessels with heat insulation
If process temperatures are high, the device must be included in normal tank
insulation to prevent the electronics heating up as a result of heat radiation or
convection. The insulation may not exceed beyond the points labeled "MAX" in the
drawings.
2
mm (in)
 5 Process connection with flange - FMP55
1 Tank insulation
2 Compact device
3 Sensor remote (feature 600)
1
MAX
