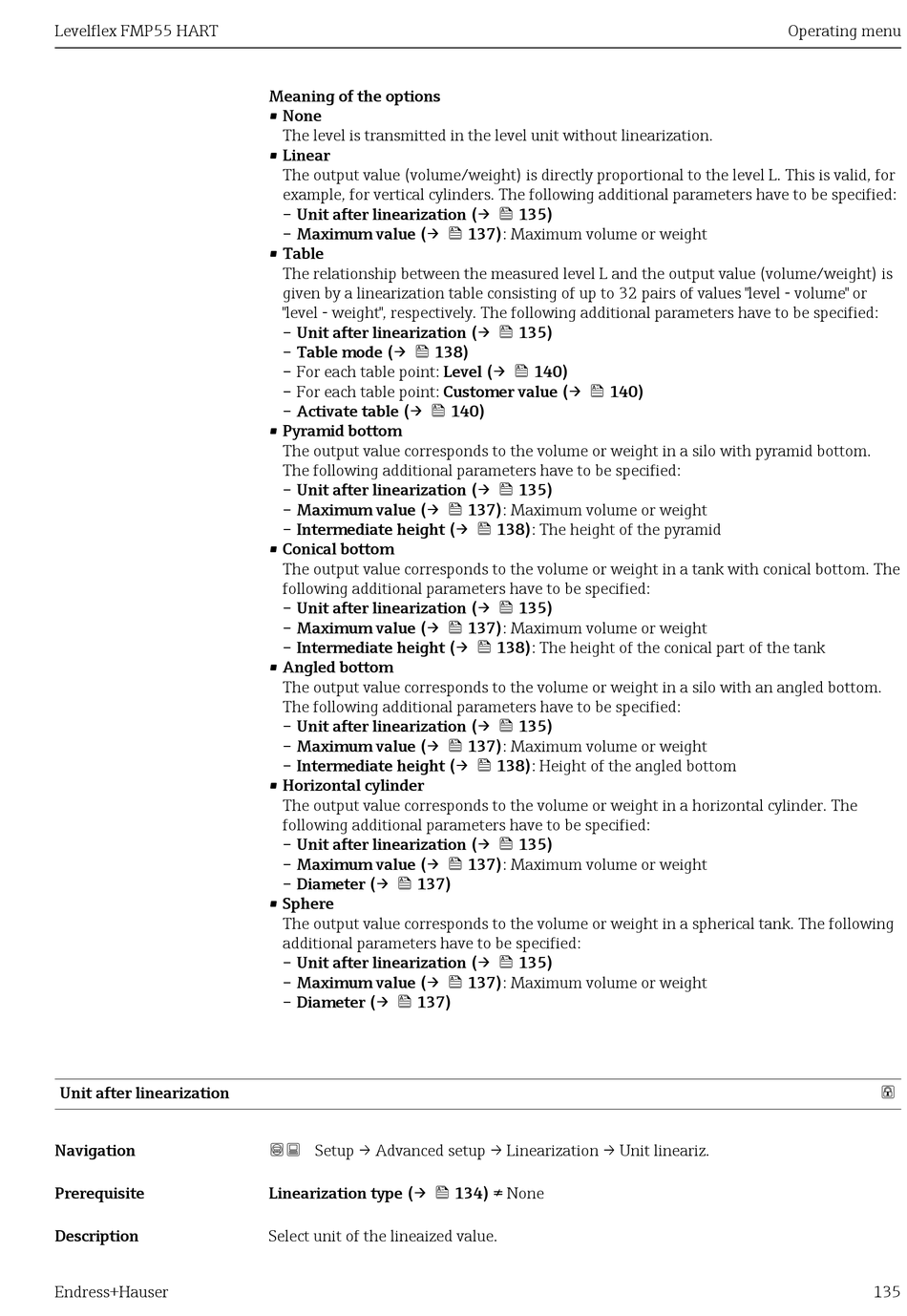

Levelflex FMP55 HART

Unit after linearization

Navigation
Prerequisite
Description
Endress+Hauser
Meaning of the options
• None
The level is transmitted in the level unit without linearization.
• Linear
The output value (volume/weight) is directly proportional to the level L. This is valid, for
example, for vertical cylinders. The following additional parameters have to be specified:
– Unit after linearization (→  135)
– Maximum value (→  137): Maximum volume or weight
• Table
The relationship between the measured level L and the output value (volume/weight) is
given by a linearization table consisting of up to 32 pairs of values "level - volume" or
"level - weight", respectively. The following additional parameters have to be specified:
– Unit after linearization (→  135)
– Table mode (→  138)
– For each table point: Level (→  140)
– For each table point: Customer value (→  140)
– Activate table (→  140)
• Pyramid bottom
The output value corresponds to the volume or weight in a silo with pyramid bottom.
The following additional parameters have to be specified:
– Unit after linearization (→  135)
– Maximum value (→  137): Maximum volume or weight
– Intermediate height (→  138): The height of the pyramid
• Conical bottom
The output value corresponds to the volume or weight in a tank with conical bottom. The
following additional parameters have to be specified:
– Unit after linearization (→  135)
– Maximum value (→  137): Maximum volume or weight
– Intermediate height (→  138): The height of the conical part of the tank
• Angled bottom
The output value corresponds to the volume or weight in a silo with an angled bottom.
The following additional parameters have to be specified:
– Unit after linearization (→  135)
– Maximum value (→  137): Maximum volume or weight
– Intermediate height (→  138): Height of the angled bottom
• Horizontal cylinder
The output value corresponds to the volume or weight in a horizontal cylinder. The
following additional parameters have to be specified:
– Unit after linearization (→  135)
– Maximum value (→  137): Maximum volume or weight
– Diameter (→  137)
• Sphere
The output value corresponds to the volume or weight in a spherical tank. The following
additional parameters have to be specified:
– Unit after linearization (→  135)
– Maximum value (→  137): Maximum volume or weight
– Diameter (→  137)
 Setup → Advanced setup → Linearization → Unit lineariz.
Linearization type (→  134) ≠ None
Select unit of the lineaized value.
