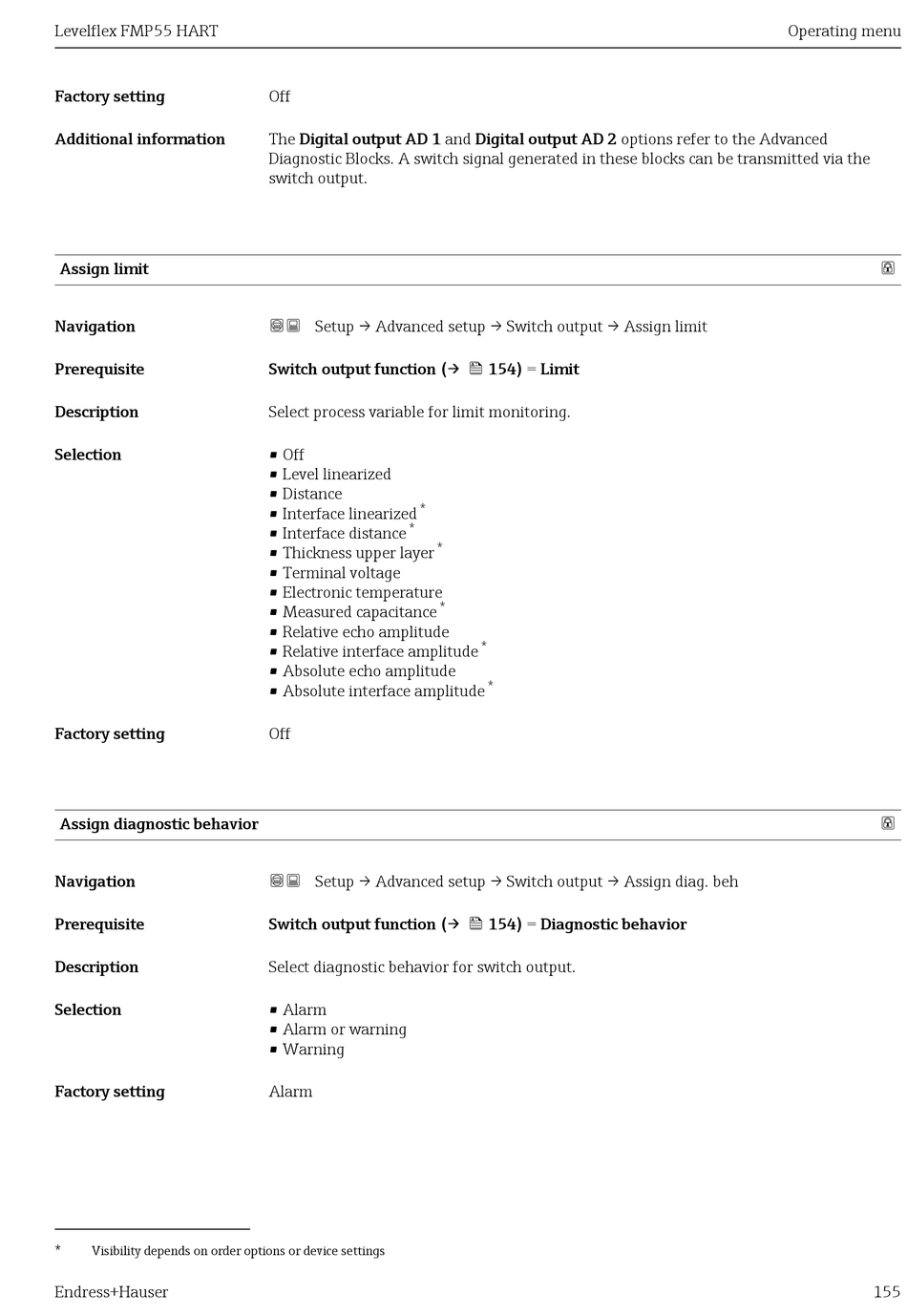

Levelflex FMP55 HART
Factory setting
Additional information

Assign limit

Navigation
Prerequisite
Description
Selection
Factory setting

Assign diagnostic behavior

Navigation
Prerequisite
Description
Selection
Factory setting
* Visibility depends on order options or device settings
Endress+Hauser
Off
The Digital output AD 1 and Digital output AD 2 options refer to the Advanced
Diagnostic Blocks. A switch signal generated in these blocks can be transmitted via the
switch output.
 Setup → Advanced setup → Switch output → Assign limit
Switch output function (→  154) = Limit
Select process variable for limit monitoring.
• Off
• Level linearized
• Distance
*
• Interface linearized
*
• Interface distance
*
• Thickness upper layer
• Terminal voltage
• Electronic temperature
• Measured capacitance
• Relative echo amplitude
• Relative interface amplitude
• Absolute echo amplitude
• Absolute interface amplitude
Off
 Setup → Advanced setup → Switch output → Assign diag. beh
Switch output function (→  154) = Diagnostic behavior
Select diagnostic behavior for switch output.
• Alarm
• Alarm or warning
• Warning
Alarm
*
*
*
Operating menu


155
