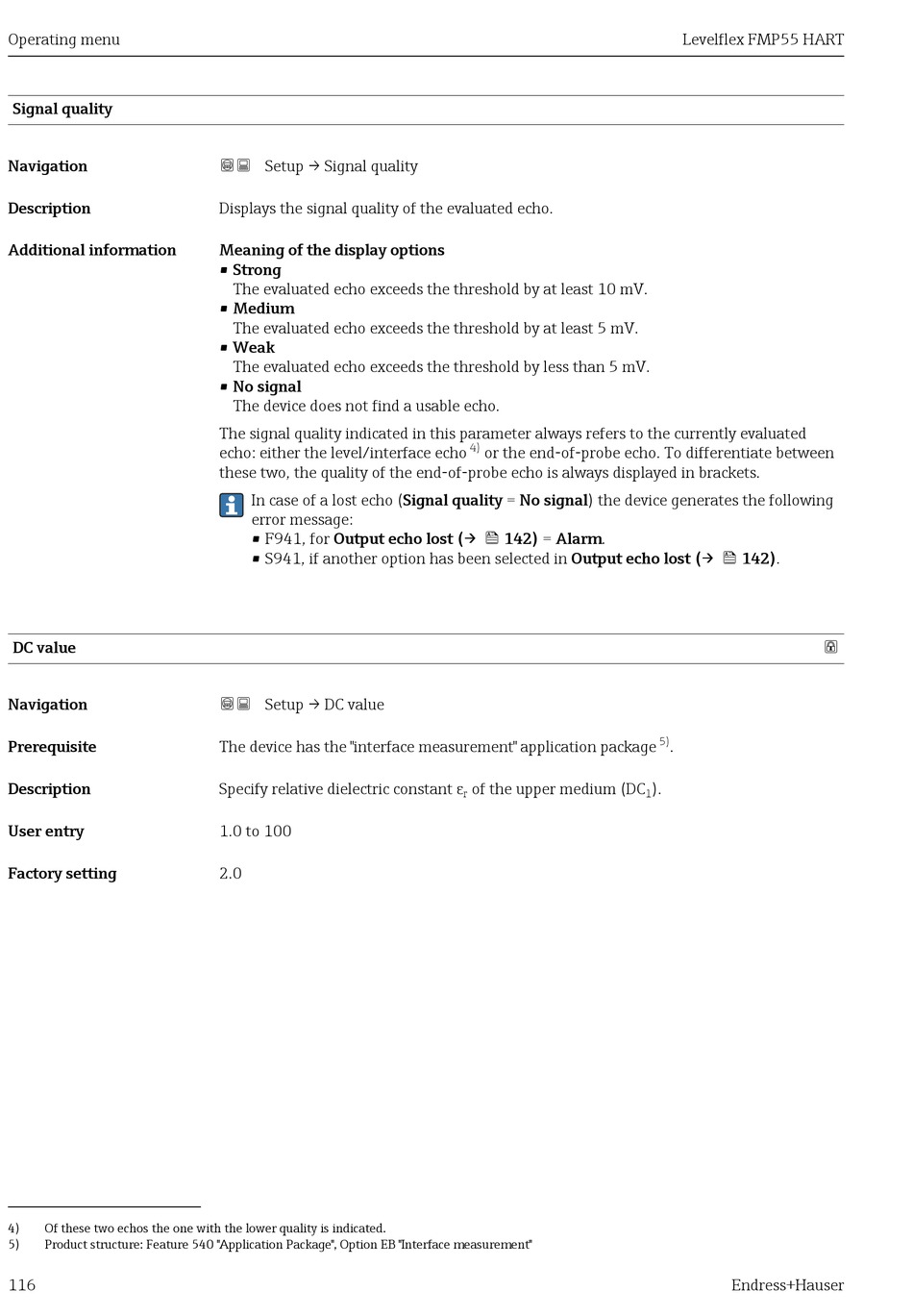

Dc Value; Signal Quality - Endress+Hauser Levelflex FMP55 Operating Instructions Manual

Operating menu

Signal quality

Navigation
Description
Additional information

DC value

Navigation
Prerequisite
Description
User entry
Factory setting
4) Of these two echos the one with the lower quality is indicated.
5) Product structure: Feature 540 "Application Package", Option EB "Interface measurement"
116
 Setup → Signal quality
Displays the signal quality of the evaluated echo.
Meaning of the display options
• Strong
The evaluated echo exceeds the threshold by at least 10 mV.
• Medium
The evaluated echo exceeds the threshold by at least 5 mV.
• Weak
The evaluated echo exceeds the threshold by less than 5 mV.
• No signal
The device does not find a usable echo.
The signal quality indicated in this parameter always refers to the currently evaluated
echo: either the level/interface echo
these two, the quality of the end-of-probe echo is always displayed in brackets.
In case of a lost echo (Signal quality = No signal) the device generates the following
error message:
• F941, for Output echo lost (→  142) = Alarm.
• S941, if another option has been selected in Output echo lost (→  142).
 Setup → DC value
The device has the "interface measurement" application package
Specify relative dielectric constant ε
1.0 to 100
2.0
4)
or the end-of-probe echo. To differentiate between
of the upper medium (DC
r
Levelflex FMP55 HART
5)
.
).
1
Endress+Hauser

