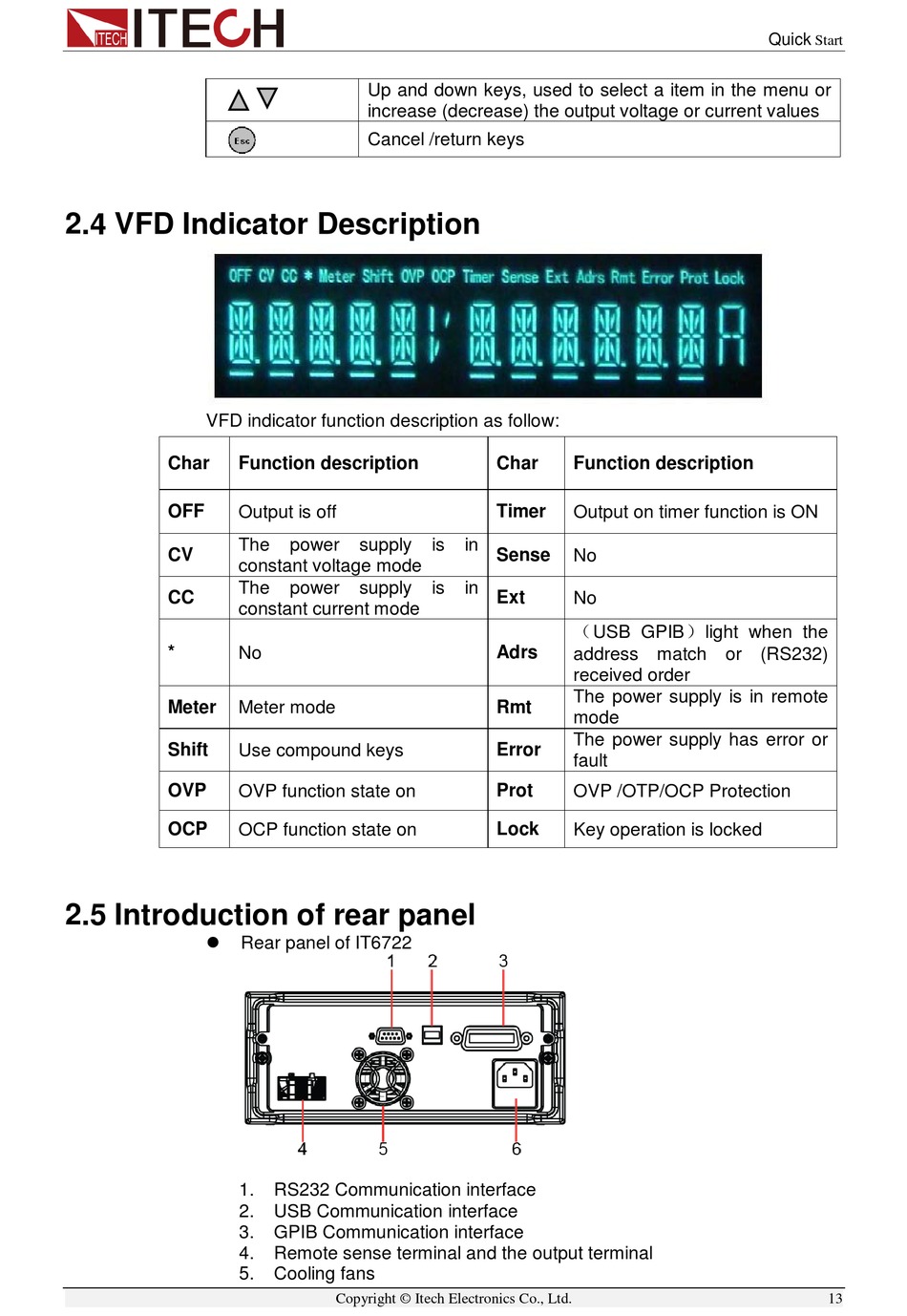

2.4 VFD Indicator Description

VFD indicator function description as follow:
Char
OFF
CV
CC
*
Meter
Shift
OVP
OCP

2.5 Introduction of rear panel


Up and down keys, used to select a item in the menu or
increase (decrease) the output voltage or current values
Cancel /return keys
Function description
Output is off
The power supply
constant voltage mode
The power supply
constant current mode
No
Meter mode
Use compound keys
OVP function state on
OCP function state on
Rear panel of IT6722
1. RS232 Communication interface
2. USB Communication interface
3. GPIB Communication interface
4. Remote sense terminal and the output terminal
5. Cooling fans
Copyright © Itech Electronics Co., Ltd.
Char Function description
Timer Output on timer function is ON
is in
Sense No
is in
Ext No
（USB GPIB）light when the
Adrs
address match or (RS232)
received order
The power supply is in remote
Rmt
mode
The power supply has error or
Error
fault
Prot OVP /OTP/OCP Protection
Lock Key operation is locked
Quick
Start
