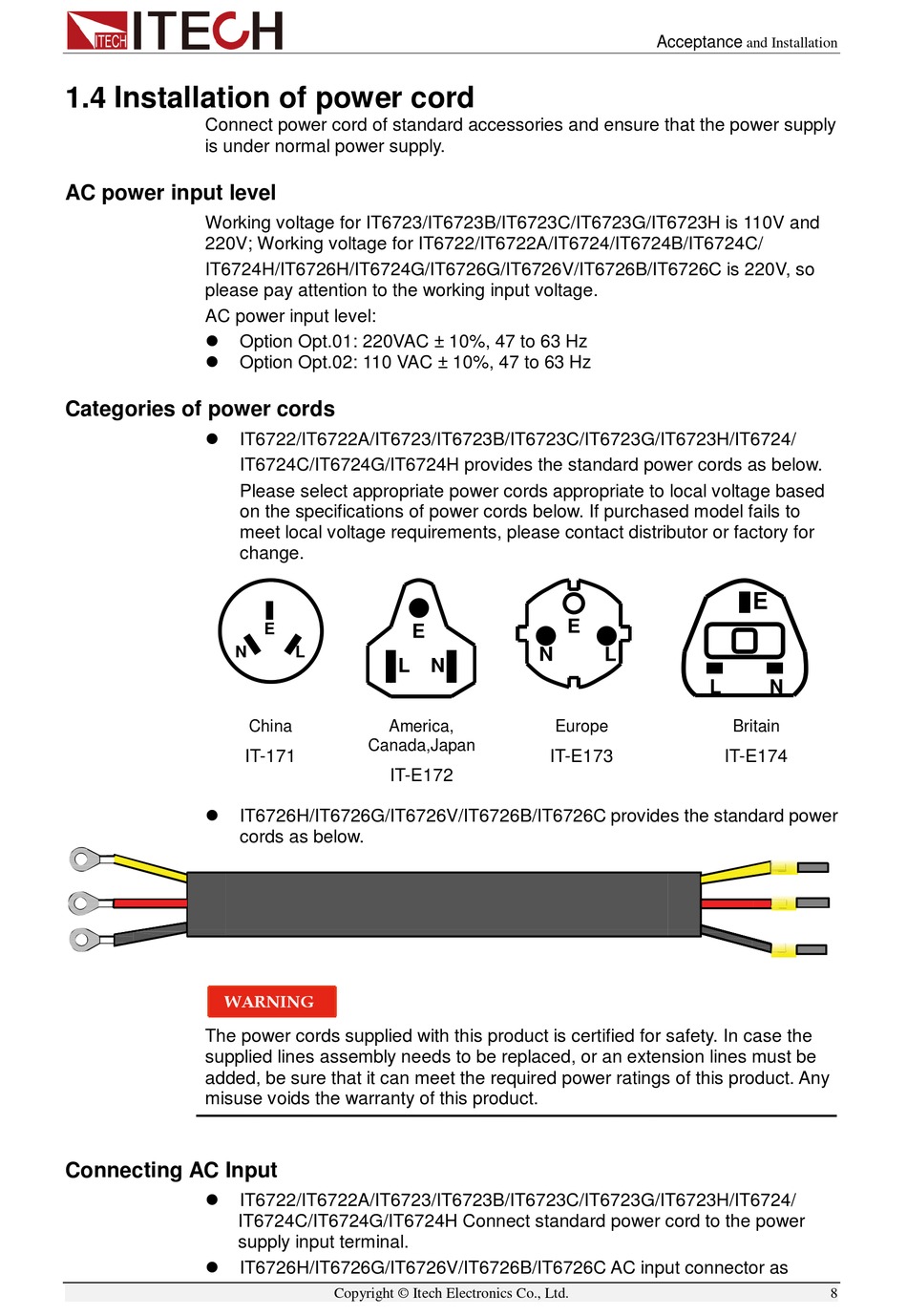

1.4 Installation of power cord

Connect power cord of standard accessories and ensure that the power supply
is under normal power supply.
AC power input level
Working voltage for IT6723/IT6723B/IT6723C/IT6723G/IT6723H is 110V and
220V; Working voltage for IT6722/IT6722A/IT6724/IT6724B/IT6724C/
IT6724H/IT6726H/IT6724G/IT6726G/IT6726V/IT6726B/IT6726C is 220V, so
please pay attention to the working input voltage.
AC power input level:


Categories of power cords

N

The power cords supplied with this product is certified for safety. In case the
supplied lines assembly needs to be replaced, or an extension lines must be
added, be sure that it can meet the required power ratings of this product. Any
misuse voids the warranty of this product.
Connecting AC Input


Option Opt.01: 220VAC ± 10%, 47 to 63 Hz
Option Opt.02: 110 VAC ± 10%, 47 to 63 Hz
IT6722/IT6722A/IT6723/IT6723B/IT6723C/IT6723G/IT6723H/IT6724/
IT6724C/IT6724G/IT6724H provides the standard power cords as below.
Please select appropriate power cords appropriate to local voltage based
on the specifications of power cords below. If purchased model fails to
meet local voltage requirements, please contact distributor or factory for
change.
E
L
L N
China America,
Canada,Japan
IT-171
IT-E172
IT6726H/IT6726G/IT6726V/IT6726B/IT6726C provides the standard power
cords as below.
IT6722/IT6722A/IT6723/IT6723B/IT6723C/IT6723G/IT6723H/IT6724/
IT6724C/IT6724G/IT6724H Connect standard power cord to the power
supply input terminal.
IT6726H/IT6726G/IT6726V/IT6726B/IT6726C AC input connector as
Copyright © Itech Electronics Co., Ltd.
E
E
N
Europe
IT-E173
Acceptance
and Installation
E
L
L N
Britain
IT-E174
