6. AC power socket


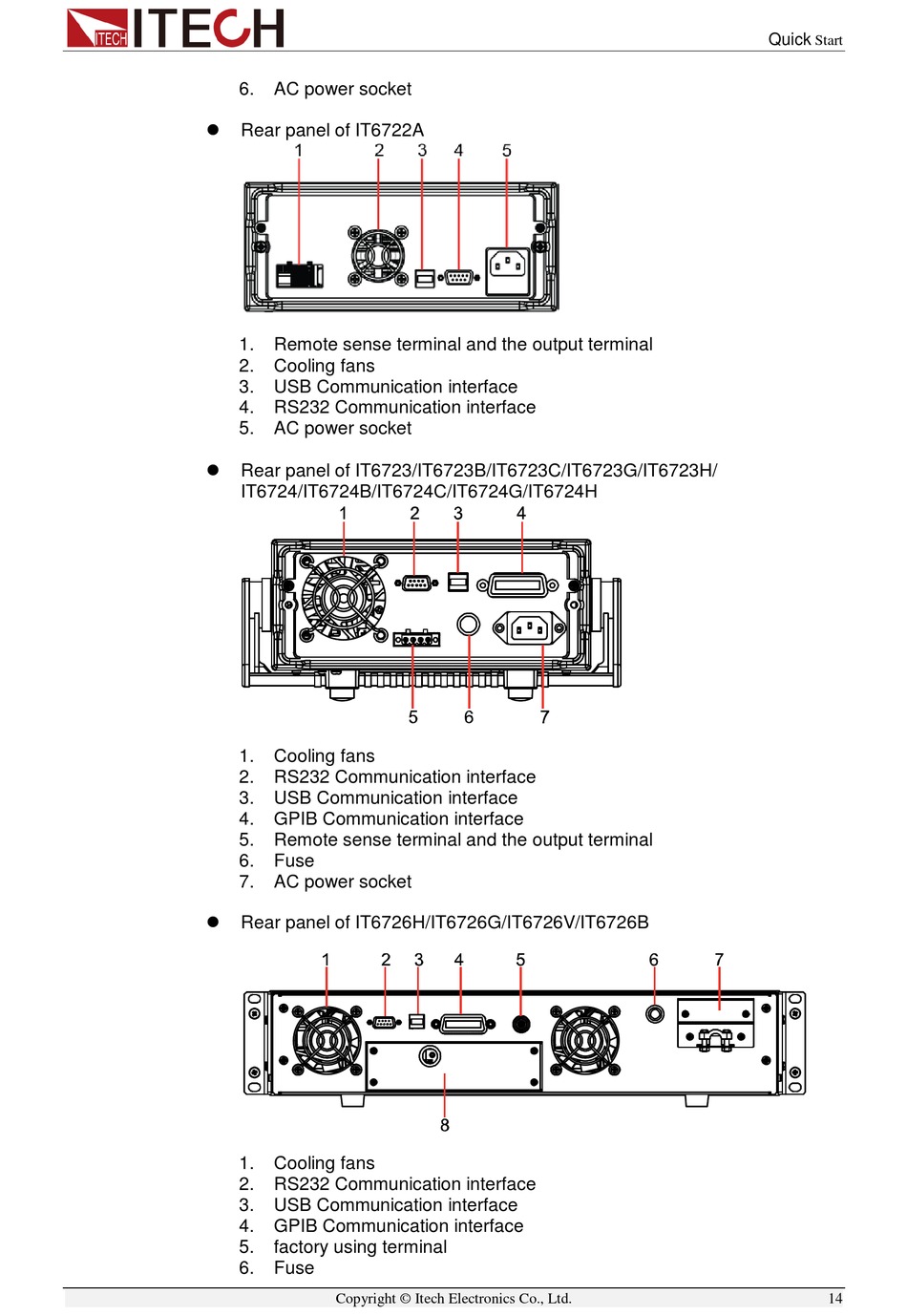

Rear panel of IT6722A
1. Remote sense terminal and the output terminal
2. Cooling fans
3. USB Communication interface
4. RS232 Communication interface
5. AC power socket

Rear panel of IT6723/IT6723B/IT6723C/IT6723G/IT6723H/
IT6724/IT6724B/IT6724C/IT6724G/IT6724H
1. Cooling fans
2. RS232 Communication interface
3. USB Communication interface
4. GPIB Communication interface
5. Remote sense terminal and the output terminal
6. Fuse
7. AC power socket

Rear panel of IT6726H/IT6726G/IT6726V/IT6726B
1. Cooling fans
2. RS232 Communication interface
3. USB Communication interface
4. GPIB Communication interface
5. factory using terminal
6. Fuse
