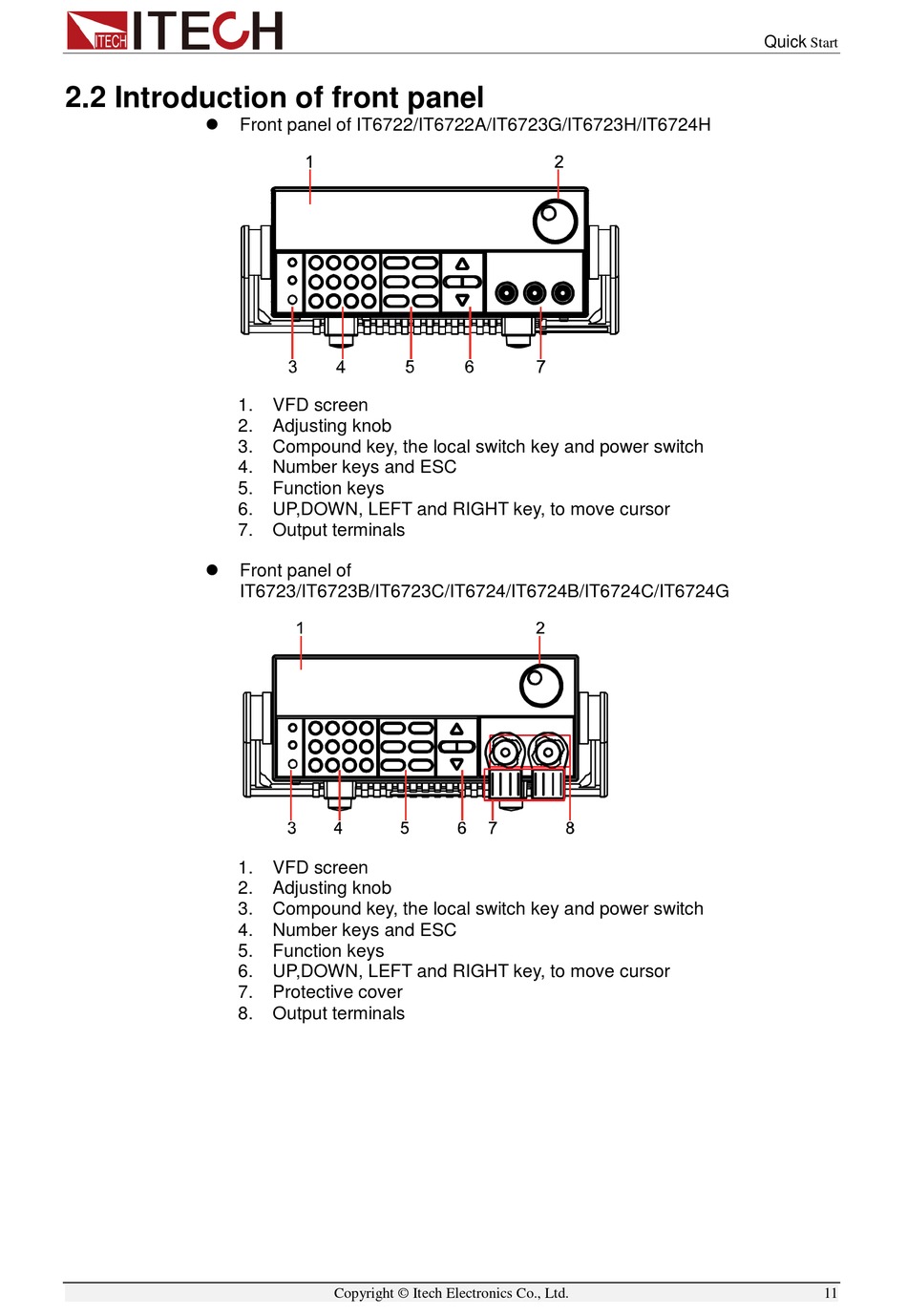

2.2 Introduction of front panel
Front panel of IT6722/IT6722A/IT6723G/IT6723H/IT6724H
1.
VFD screen
2.
Adjusting knob
3.
Compound key, the local switch key and power switch
4.
Number keys and ESC
5.
Function keys
6.
UP,DOWN, LEFT and RIGHT key, to move cursor
7.
Output terminals
Front panel of
IT6723/IT6723B/IT6723C/IT6724/IT6724B/IT6724C/IT6724G
1.
VFD screen
2.
Adjusting knob
3.
Compound key, the local switch key and power switch
4.
Number keys and ESC
5.
Function keys
6.
UP,DOWN, LEFT and RIGHT key, to move cursor
7.
Protective cover
8.
Output terminals
