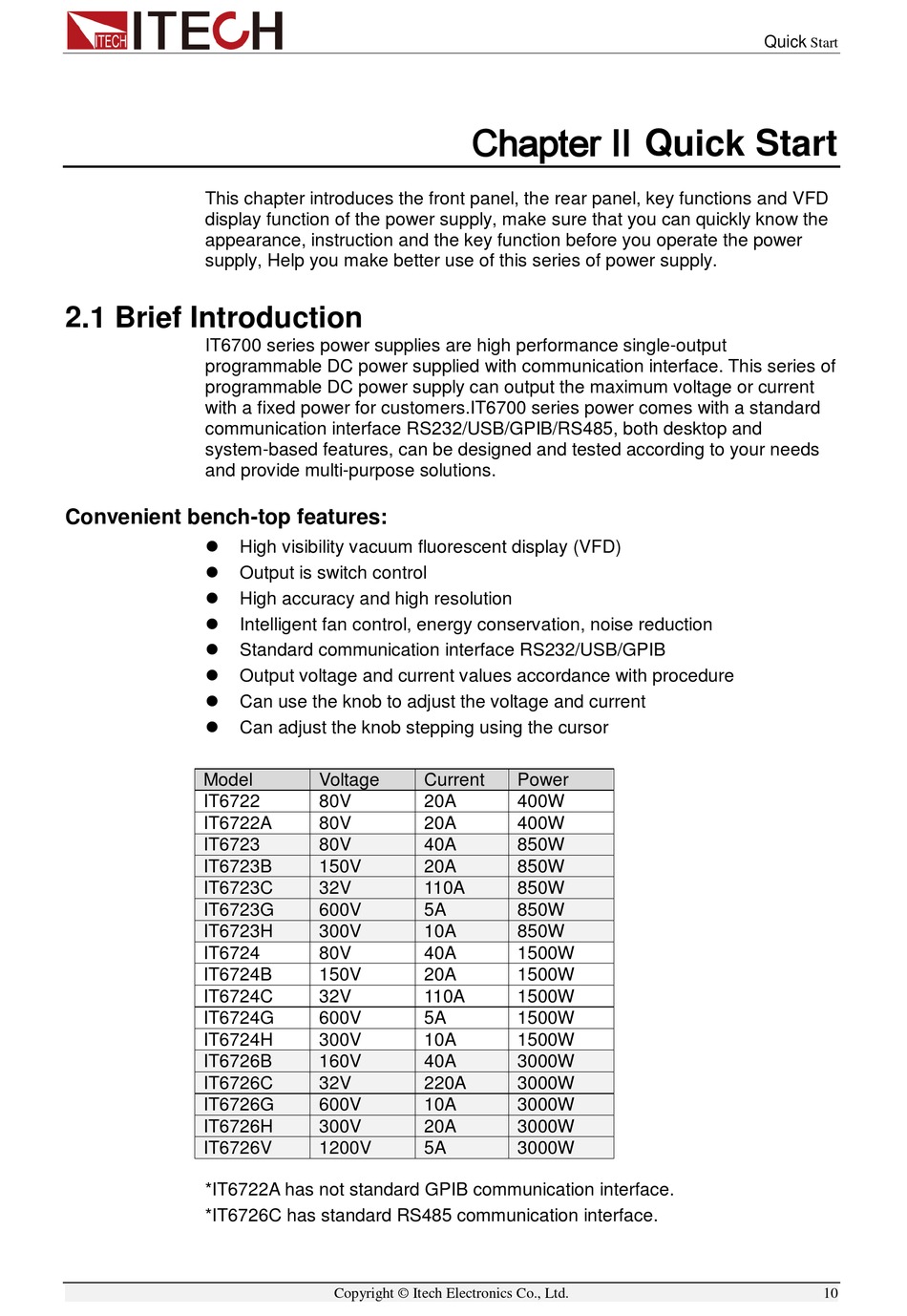

Chapter Ii Quick Start; Brief Introduction - ITech IT6722 User Manual

This chapter introduces the front panel, the rear panel, key functions and VFD
display function of the power supply, make sure that you can quickly know the
appearance, instruction and the key function before you operate the power
supply, Help you make better use of this series of power supply.

2.1 Brief Introduction

IT6700 series power supplies are high performance single-output
programmable DC power supplied with communication interface. This series of
programmable DC power supply can output the maximum voltage or current
with a fixed power for customers.IT6700 series power comes with a standard
communication interface RS232/USB/GPIB/RS485, both desktop and
system-based features, can be designed and tested according to your needs
and provide multi-purpose solutions.
Convenient bench-top features:








Model
IT6722
IT6722A
IT6723
IT6723B
IT6723C
IT6723G
IT6723H
IT6724
IT6724B
IT6724C
IT6724G
IT6724H
IT6726B
IT6726C
IT6726G
IT6726H
IT6726V
*IT6722A has not standard GPIB communication interface.
*IT6726C has standard RS485 communication interface.
High visibility vacuum fluorescent display (VFD)
Output is switch control
High accuracy and high resolution
Intelligent fan control, energy conservation, noise reduction
Standard communication interface RS232/USB/GPIB
Output voltage and current values accordance with procedure
Can use the knob to adjust the voltage and current
Can adjust the knob stepping using the cursor
Voltage
80V
80V
80V
150V
32V
600V
300V
80V
150V
32V
600V
300V
160V
32V
600V
300V
1200V
Copyright © Itech Electronics Co., Ltd.

Chapter II Quick Start

Current Power
20A 400W
20A 400W
40A 850W
20A 850W
110A 850W
5A 850W
10A 850W
40A 1500W
20A 1500W
110A 1500W
5A 1500W
10A 1500W
40A 3000W
220A 3000W
10A 3000W
20A 3000W
5A 3000W
