Chapter 1- Hardware Description

RMX 2000 Components

RMX 2000 Front Panel

Power supply Drawer
1-8
On the RMX 2000 components are located on both the front and rear of the
MCU as listed in Table 1-4, "Polycom RMX 2000 Component Description".
For more information see the descriptions of the "RMX 2000 Front Panel"
on page 1-8 and "RMX 2000 Rear Panel" on page 1-11.
Please verify the type of chassis used on your RMX 2000. Starting with version
4.0, a new environmentally friendly RMX 2000 chassis is in use. For more
information, contact your next level of support.

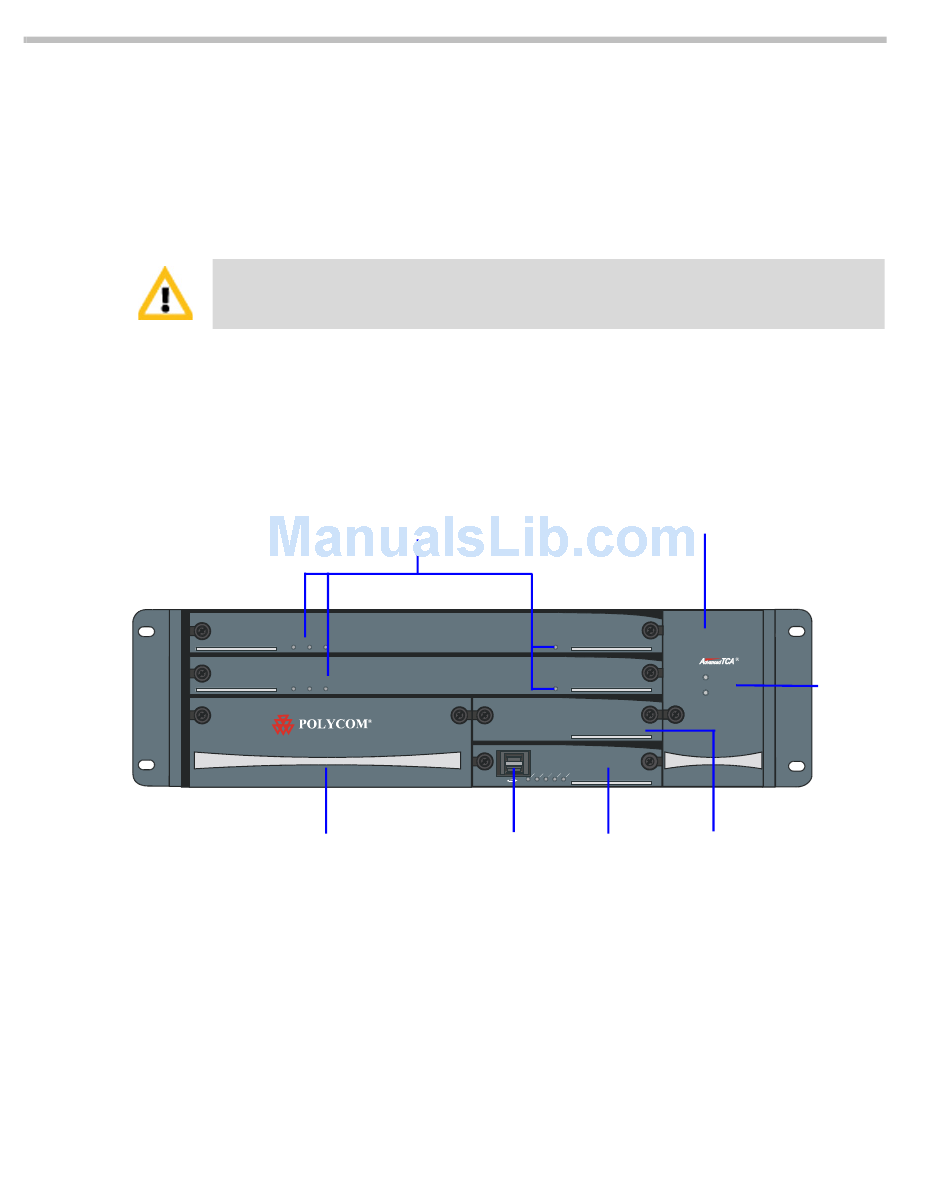

Figure 1-1 shows the front panel of the RMX 2000. The front panel
provides access to the RMX 2000 main CNTL modules, MPM/MPM+/
MPMx modules, Power Supply drawer, Status LEDs, and Fans.
MPM/MPM+/MPMx Cards & LEDs
ERR RDY ACT
ERR RDY ACT
RMX 2000
Figure 1-1 RMX 2000 Front Panel
HS
HS
ERR RDYACT HD HS
PWR
USB ports - not for Control Unit
customer use
Fan Drawer
MPM+80
FAN
STATUS
MPM+80
PWR
STATUS
CNTL
FANS
CNTL
Optional CPU &
& LEDs LEDs
Fan &
Power
Status
LEDs
