Polycom MGC-50 Getting Started Manual page 75

4. Double-click the IP card.
Alternatively, right-click the IP card icon, and then click Properties.

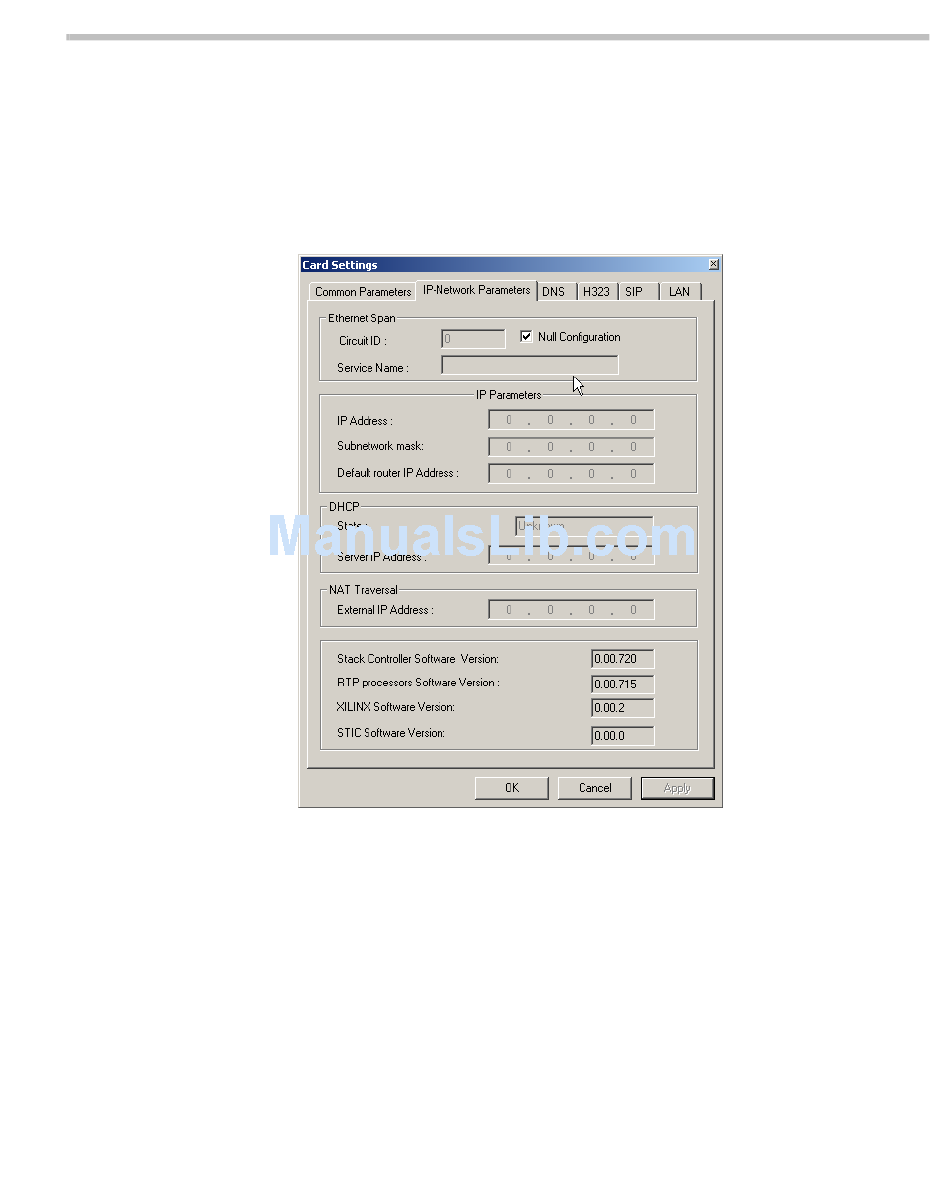

The Card Settings-Common Parameters dialog box opens.
The Common Parameters tab is for viewing purposes only.
5. Click the IP-Network Parameters tab.
6. In the IP-Network Parameters tab clear the Null Configuration check
box to enable assignment of the IP Network Service.
7. In the Circuit ID box enter the circuit ID that was defined for this card in
the IP Network Service—Spans dialog box. For additional information
on circuit IDs see "IP SPAN Options" on page 3-43.
8. Click Apply.
The name of the IP Network Service is displayed in the Service Name
field.
Chapter 3 - Initial System Configuration
3-51
