MGC-50/MGC-100 Getting Started Guide
3-20

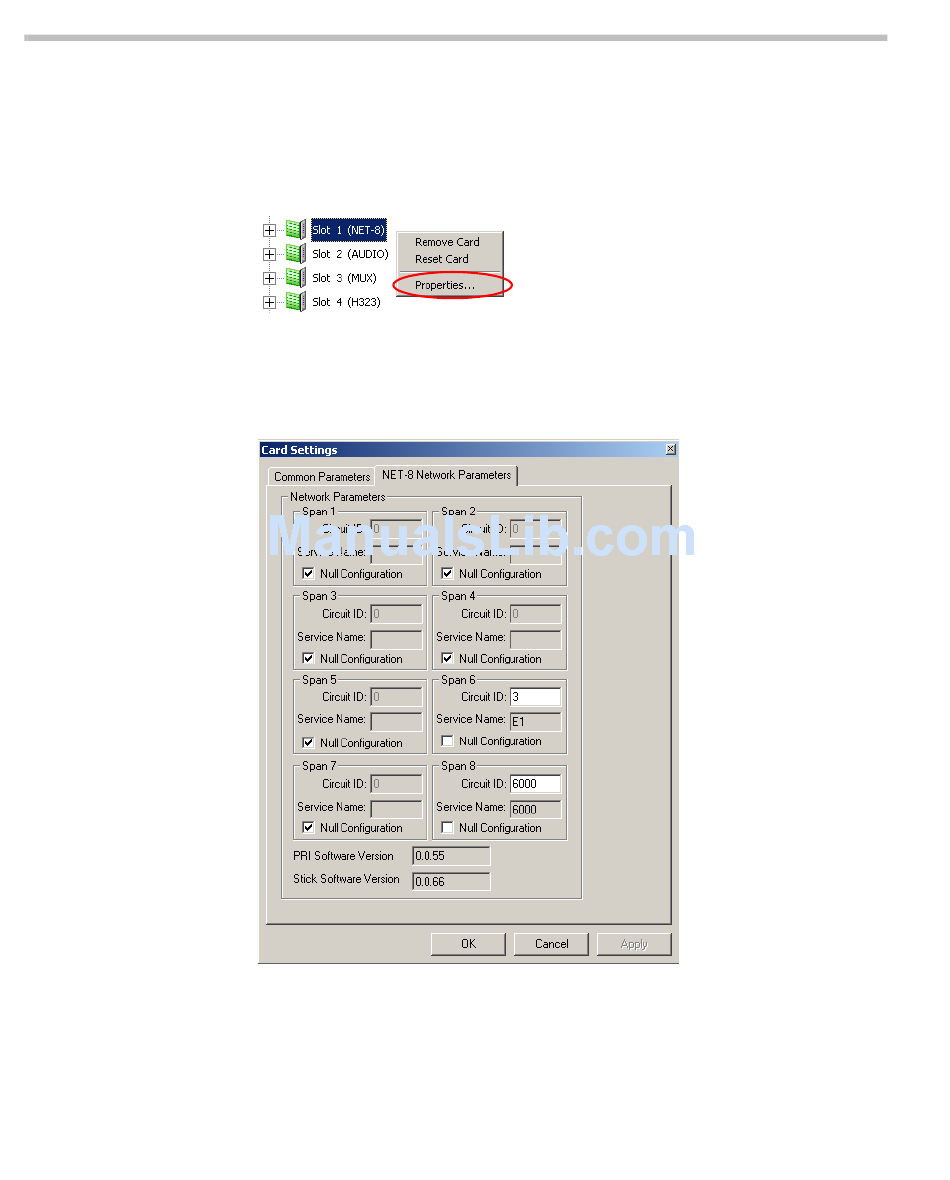

To configure the Net-2/Net-4/Net-8 ISDN Network Interface module:
1.
In the Browser pane, right-click the slot containing the
Net-2/4/8 card, and then click Properties.
Alternatively, double-click the slot containing the card.
The Card Settings – Common Parameters dialog box opens.
2.
Click the Net-8 Network Parameters tab.
The Card Settings NET-8 Network Parameters dialog box opens.
The Net-2/Net-4/Net-8 Network Interface module supports up to eight
PRI connections, depending on the card model installed in the MCU.
These connections may be either T1 or E1. For the system to recognize
the PRI lines that connect to the Network card, you must assign the
