General disassem-
bly is presented as
step by step instruction.
Pay attention to the
sequence of disassembly
steps, e.g. housing front
cannot be removed
before housing back is
unscrewed.
Unplug machine
from the mains
before disassembling -
appliance must be
isolated!
R E P A I R
General disassembly
The general disassembly
­ makes important components accessible for repair or replacement,
­ is required for the leakage check.
Safety information
Danger of electric shock ­ live parts inside coffee machine.
Unplug from the mains before disassembling the machine ­
appliance must be isolated!
• Empty the fluid system before repair (if possible) and shipment (see see page 18).
• The housing back is assembled with special safety screws. Please insert the same
screws when reassembling the machine ­ for safety reasons for the user.
• With each repair
­ always accomplish internal cleaning
­ renew all pressure hoses and clips when disassembled.
Every time a pressure hose or a clip is disconnected, it must be replaced
by a new one.
• Handle snap connections and latches with care to avoid any damage.
• If it is necessary to cut or pull off hoses, hold a towel ready to wipe away leaking water.
Preparation for disassembly

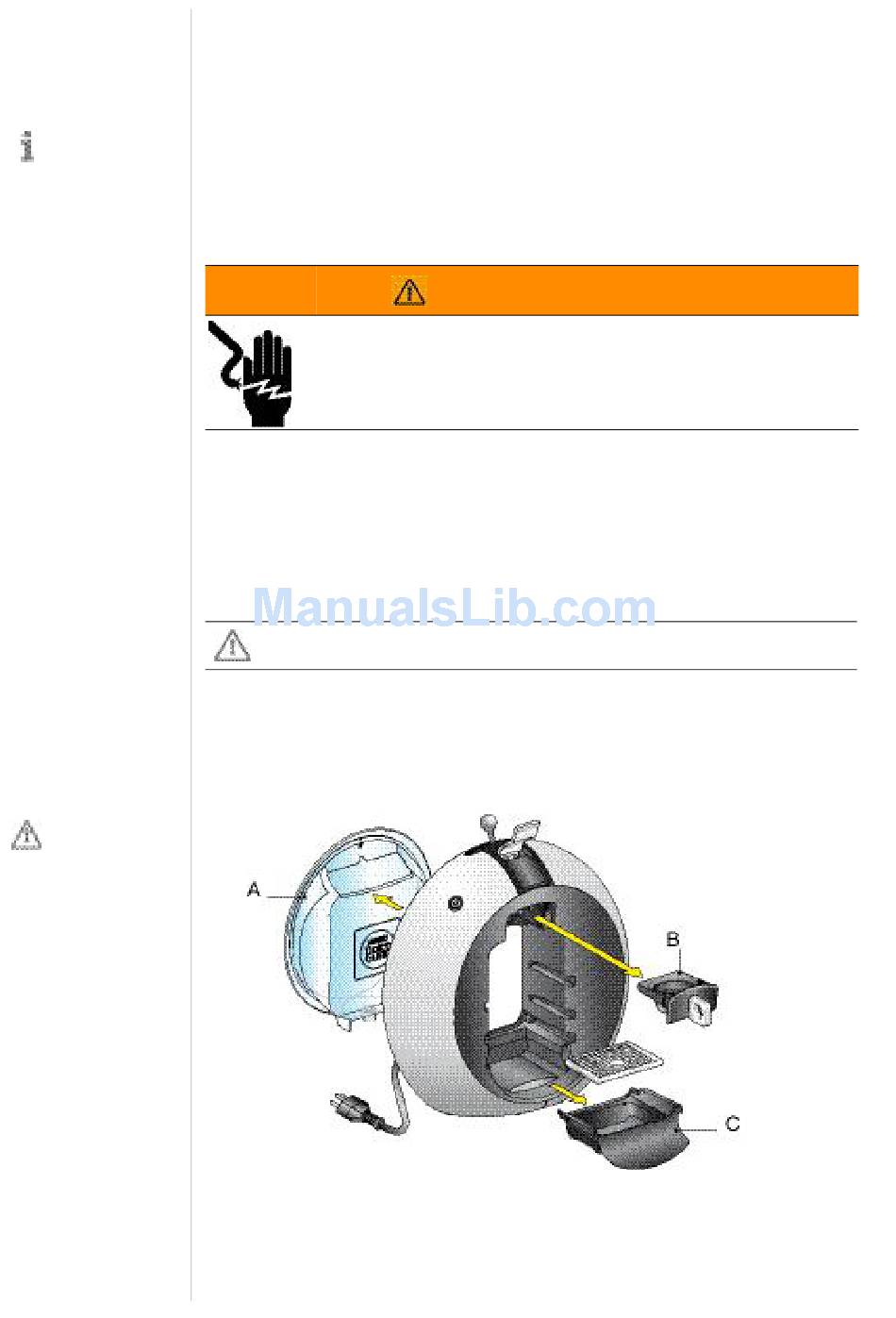

1. Remove water tank (A), capsule holder (B) and drip tray (C) together with drip grid.
WA R NI NG
