Summary of Contents for Felix printers Pro 2 Touch

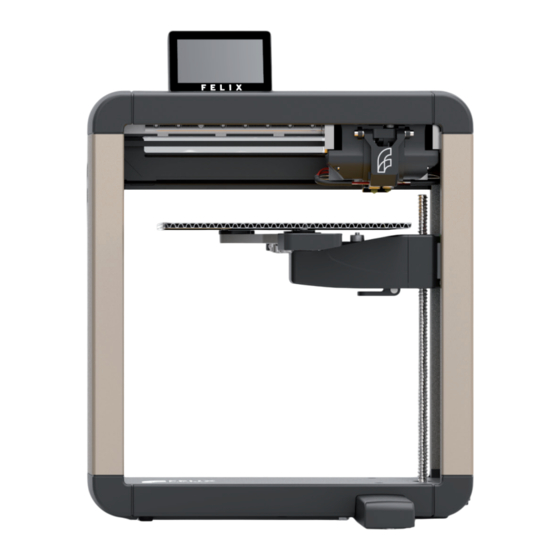

- Page 1 Quick Start Guide Pro 2 Touch...
- Page 2 This will keep it safe from small children. leave it in a properly conditioned room with distance from Use the FELIXprinter in a dry environment. highly flamable objects. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 2...
- Page 3 3.1 Display overview Require additional support? 3.2 Print bed calibration 3.3 Loading filament Have a look at www.felixprinters.com/support 3.4 Cleaning the print bed or at our user forum. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 3...
- Page 4 • Nozzle temperature: max. 275 °C • Support for open source Repetier Host for FELIXprinters • Full metal hot-ends Contact Website info@FELIXprinters.com www.FELIXprinters.com Zeemanlaan 15, 3401 MV IJsselstein, The Netherlands FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 4...
- Page 5 Filament spool holder Print bed Lever for rotating bed Filament spool holder Power switch Power connection USB PC connection Foot FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 5...
-
Page 6: What's In The Box
The box could contain extra materials like filament you have ordered. We recommend to use the following tools: small pliers, scissors, (plastic) spatula, detergent like alcohol, paper towel or cloth. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch... - Page 7 Take out the foot bracket. Leave the printer frame in the Place the foot bracket on a stable and fl at surface. box for now. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 7...
- Page 8 Remove the foam protection from the printer frame and Fix the printer frame onto the foot bracket with the place the frame on the foot bracket. supplied M4x20 screws using the provided Allen key. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 8...
-
Page 9: Installing The Display Unit
Plug in the connectors into the display unit, then slide the the display. Failing to do so could cause serious damage. display onto the metal pins. Do not turn on power just yet. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 9... -
Page 10: Preparing The Print Bed
Chapter 2: Setup 2.1 Preparing the print bed Flip out the lever. Turn the print bed. This might require a little force. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 10... - Page 11 It is important that the bed is placed properly to pre- vent damage to the heater. Flip back the lever. Lower the bed until the three magnets match the positions on the bracket. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 11...
- Page 12 2. Insert power cable into the printer and into a power out- frame. let. 3. Insert USB when using a PC. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 12...
- Page 13 Chapter 2: Setup 2.3 Power on The unboxing is done. Turn on the on/off (1) switch and continue to the next step to make your first print! FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 13...
-
Page 14: Display Overview
Heater status: ● Extruder 1 Extruder 2 Print bed Idle ● Heating up ● Ready to print Connectivity status - Slide down for wifi settings Control Print Utilities FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 14... - Page 15 XY and Z calibration found in the Utilities menu. Welcome to the print screen. This screen means that the printer is busy performing a print job or calibration. Wait until the calibration is com- pleted. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 15...
- Page 16 Press to hide Press when done. Repeat steps 1 - 6 for the tutorial. extruder 2 FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 16...
-
Page 17: Cleaning The Print Bed
(plastic) spatula or carefully use the blue spirit or acetone by putting it on a cloth or paper supplied tweezers for smaller particles. towel and gently rubbing the print bed surface. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 17... -
Page 18: Print From Usb
The advanced option gives the control to override tions. Select to start printing. Pause printing Gcode settings during printing. For now leave the settings as they were, select to hide. Advanced print settings FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 18... - Page 19 Do not remove the print bed without using the Remove bed function. This could damage your The print bed can reach temperatures of up to 100°C, so wait for it to cool off before touching. printer. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 19...
- Page 20 If you are using PVA dissolve it in water. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 20...
- Page 21 Print with the Pro 2 Touch from anywhere with any device Get started at www.formide.com Formide is the recommended software to operate the FELIX Pro 2 Touch. For experienced users who love to tweak we also support Simplify3D and Repetier-Host for FELIXprinters or third party software like Kisslicer. www.felixprinters.com/products/software...
- Page 22 ‘Set up a new Device’ account. Search and select ‘Pro 2’ and ‘save new printer’ to complete the setup. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 22...
-
Page 23: Tips And Tricks
Never remove the heated print bed while the printer is heating. » Never disconnect the display unit, while the printer is still on. » When turning off the printer, make sure the heaters are cooled down below 100 FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 23... -
Page 24: Maintenance
Put the tweezer in the top hole of the hot-end and take poperly to avoid risk of injury. the bottom of the hot-end with the other hand. Turn off the printer. Now gently pull out the hot-end forwards. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 24... - Page 25 After a while replace the dust cleaners. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 25...
-
Page 26: Display Messages
The z-sensor triggered falsely during the leveling routine or measured probe values are out of their boundaries. Go to www.felixprinters.com/support and look for the ‘z-sensor triggered’ topic. FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 26... - Page 27 FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch FELIXprinters Quick Start Manual for the FELIX Pro 2 Touch Page 27...
- Page 28 Help us to improve our products and services. It only takes a few minutes! www.felixprinters.com/survey (a small reward is waiting for you) Manuals & tutorials FELIX Community www.felixprinters.com/support www.felixprinters.com/community V1-2016 Quick Start Manual FELIX Pro 2 Touch www.felixprinters.com/support Zeemanlaan 15 support@felixprinters.com 3401 MV IJsselstein The Netherlands...
