Summary of Contents for Felix printers Tec 4
- Page 1 User Manual 18 December FELIX Tec 4 2017 Revision 1...
-
Page 2: Introduction
If you are unable to continue or have any questions, you can check at the support section of our website or you can contact us directly: Website: www.felixprinters.com/support Email: support@felixprinters.com Telephone: +31 (0)30 30 31 387 Address: Zeemanlaan 15, 3401MV IJsselstein, The Netherlands Kind regards, FELIXprinters www.FELIXprinters.com FELIX Tec 4... -
Page 3: Safety
105°C. Don’t place objects on the heated bed, not even when the printer is turned off. Always let the printer cool down for at least 10 minutes before doing maintenance or modifications. www.FELIXprinters.com FELIX Tec 4... -
Page 4: Table Of Contents
Introduction ....................................1 Safety ......................................2 Contents ....................................3 Printer specifications ................................4 FELIX Tec 4 at a glance ................................5 Unboxing, Setup and Prepare.............................. 5 Printer calibration ................................... 6 What does the calibration do? ............................ 6 7.1.1 Physically leveling the build plate. (semi-automatic) ..................6 7.1.2 Calibrating the z-probe height offset. -
Page 5: Printer Specifications
15-32 ˚C [60 – 90 ˚F] temperature Weight 10 kg Storage temperature 0 – 32 ˚C Shipping Weight 11 kg Shipping Box 58.4x50.8x55.5.0 cm Warmup time Heated bed (60 ˚C) 2.5 min Nozzle (200˚C) 1.5 min www.FELIXprinters.com FELIX Tec 4... -

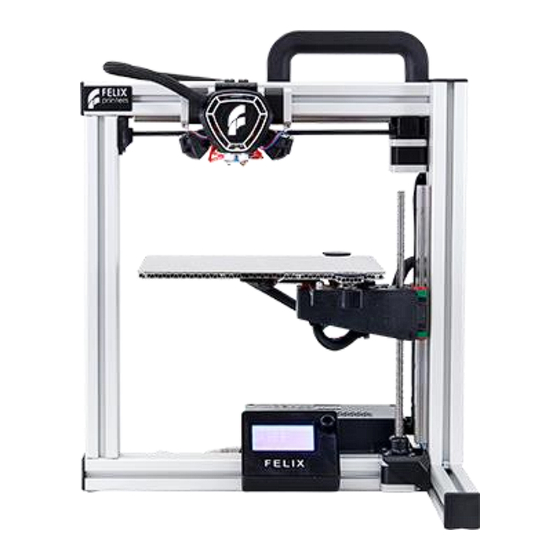

Page 6: Felix Tec 4 At A Glance
FELIX Tec 4 at a glance User Manual 18 December 2017 5 FELIX Tec 4 at a glance 6 Unboxing, Setup and Prepare For further instructions please consult the quick start manual, where the following topics are covered. Unboxing Setup of printer Preparation for microSD printing www.FELIXprinters.com... -
Page 7: Printer Calibration
The calibration mechanism is dependent upon the inductive sensor. Located in front of the print-heads. What does the calibration do? For the FELIX Tec 4 to properly operate, the calibrations described in this chapter need to be performed when commissioning the machine. -
Page 8: The Height Difference Between The Two Hot-Ends. (Manual)
If this is not done properly printed lines from both extruders might overlap too much and cause a printed failure. When to do this? After exchanging/servicing a hot-end When adjacent features printed with both extruders do no not properly aligning. www.FELIXprinters.com FELIX Tec 4... -
Page 9: Display Functions
Displaying actual positions of the axes. The question marks will disappear when the axes are homed. This menu is active when a print is started: E1: 22°C E2: 22°C B: 21°C Printfile.gcode Layer x/xx Status message www.FELIXprinters.com FELIX Tec 4... -
Page 10: The Main Menu
176.7 m printed Manual Positioning Disables all motor power, enabling manual movement of axes by hand. E1: 22/ 0°C Left Extruder temperature (actual temp / setpoint temp) E2: 22/ 0°C Right Extruder temperature B: 22/ 0°C Bed temperature www.FELIXprinters.com FELIX Tec 4... -
Page 11: Print Menu
Derivative control value Drive Min: 0 Minimum PID control value Drive Max: 255 Maximum PID control value PID Max:255 Maximum PID value Baudrate:115200 Set communication baudrate between printer, must reboot printer to activate. Save Settings Save changed settings. www.FELIXprinters.com FELIX Tec 4... -
Page 12: Printing Menu (Only Active During Print)
Speed override. You can change print speed on the fly. Flow Mul. : 100% Filament Flow override. You can override the rate of extrusion. E1: 190/190°C E2: 190/190°C B: 45/55°C Fan Speed: 0% Fan speed override, changes rate of cooling of extruded filament. www.FELIXprinters.com FELIX Tec 4... -
Page 13: Maintenance
The linear bearings require almost no maintenance. Recommended is that you put a little some grease on them every 3-4 months. The belt tension of the x and y axis can also be checked in intervals of 3 months. Check this small movie to see how to tension the belts. https://www.youtube.com/watch?v=dpS6nWn5rE8 www.FELIXprinters.com FELIX Tec 4... -
Page 14: Trouble Shooting
The most common causes to get a clogged hot-end are (ordered from most common to least common): Wrong slicing profiles. Don’t use slicing settings of the FELIX 3 for the Tec 4. This will most likely result in clogs especially when there is a series of retractions happening in a short time. -
Page 15: Heater Decoupled / Def / Dec Message On Screen
If above two things are ok, inspect the connections on the control board. Are the terminals and/or connectors ok for the respective heater which is giving issues. In a rare occasion there could be static electricity involved which is influencing the temperature measurement. Please check if you see very big fluctuations. www.FELIXprinters.com FELIX Tec 4... -
Page 16: Safety
18. Use the FELIXprinter in a dry environment. 19. Use the FELIXprinter on a stable and leveled surface. 20. Place the FELIXprinter on a table/desk/something with a similar height in order to keep small children at a safe distance. www.FELIXprinters.com FELIX Tec 4... -
Page 17: Tips And Tricks
3. Optional: Lower the overall print speed. Via the display unit take the following steps after starting the print. Press the rotary button. Then scroll down to Speed Mul. And lower it to 50%. Then by trial and error increase the speed. www.FELIXprinters.com FELIX Tec 4... -
Page 18: Material Data Safety Sheet
Low hazard for usual industrial or commercial handling. Use personal protective equipment. Storage: Store in cool place. Keep at temperatures below 122F (50 °C). No special restrictions on storage with other products. Toxicological Information www.FELIXprinters.com FELIX Tec 4... - Page 19 MATERIAL. THE INFORMATION PRESENTED HERE PERTAINS ONLY TO THE PRODUCT AS SHIPPED IN ITS INTENDED CONDITION. (Composition/Information On Ingredients). Contaminated packaging: Empty remaining contents. Do not re-use empty containers. Empty containers should be transported/delivered using a registered waste carrier to local recyclers for disposal. www.FELIXprinters.com FELIX Tec 4...
-
Page 20: Abs
Respiratory Protection: In dusty or misty atmospheres, use an approved particulate respirator. Use an approved air-purifying respirator when vapors are generated at increased temperatures or when dust or mist is present. Use the following CE approved air-purifying respirator: When dust/mist are www.FELIXprinters.com FELIX Tec 4... - Page 21 Directives 91/156/EEC, 91/689/EEC and their subsequent adaptations, as implemented in National Laws and Regulations, as well as EU Directives dealing with priority waste streams. Transboundary shipment of wastes must be in compliance with EU Regulation 259/93 and subsequent modifications. www.FELIXprinters.com FELIX Tec 4...
-
Page 22: Appendix: Terms Of Service
Product (the costs of which shall be met by FELIXprinters), de-install or destruct the Product. f) Acceptance of a non-ordered Product or amount of a Product does not relieve you from acceptance and payment of the Product you initially ordered, unless otherwise agreed with FELIXprinters. www.FELIXprinters.com FELIX Tec 4... - Page 23 You acknowledge and agree that the Products were developed at considerable time and expense by FELIXprinters and are confidential to, and a trade secret of, FELIXprinters and/or other third parties. You undertake to maintain the Products in strict confidence and not to disclose or provide access to the Product to any third party. www.FELIXprinters.com FELIX Tec 4...
- Page 24 9 do not affect any of your legal rights under applicable national legislation governing the sale of consumer goods. h) This Limited Warranty is not transferable. i) This clause 9 sets forth your sole and exclusive remedy in connection with any warranties granted by FELIXprinters hereunder. www.FELIXprinters.com FELIX Tec 4...
- Page 25 Conditions but that does not affect any right or remedy of a third party which exists or is available apart from such applicable legislation. 16. Survival Any provisions in these Terms and Conditions which by their nature extend beyond the termination or expiration of any sale or license of the Products will remain in effect. www.FELIXprinters.com FELIX Tec 4...
- Page 26 Unites States of America. Should you have any questions, suggestions or complaints concerning your order, your purchase, these Terms and Conditions, or if you desire to contact FELIXprinters for any reason, please do so by email by visiting FELIXprinters’s website. www.FELIXprinters.com FELIX Tec 4...
