Applications

6 Applications

6.1 Application Selections

Use the selections for quick application set-up of the most
common applications by setting parameter 0-16 Application
Selection. When necessary, the selections can be modified
for individual needs. All selections are for auto-on mode.
NOTICE
When an application is selected, relevant parameters are
automatically set. Customer-specific configuration of all
parameters based on specific requirements is still
possible.
NOTICE
It is recommended to initialize the frequency converter
via parameter 14-22 Operation Mode or 2 finger reset
before setting parameter 0-16 Application Selection.
NOTICE
If any of the applications are selected, relay 1 is set to
[Running] and relay 2 is set to [Alarm] automatically.
MG06A702
Quick Guide
Application
Pumps, fans, compressors.
Parameter 0-16 Application Selection is set to [1] Simple Process
Close Loop.
Description
For applications where a value (for example, pressure,
temperature) must be kept at a desired level by sensor feedback.

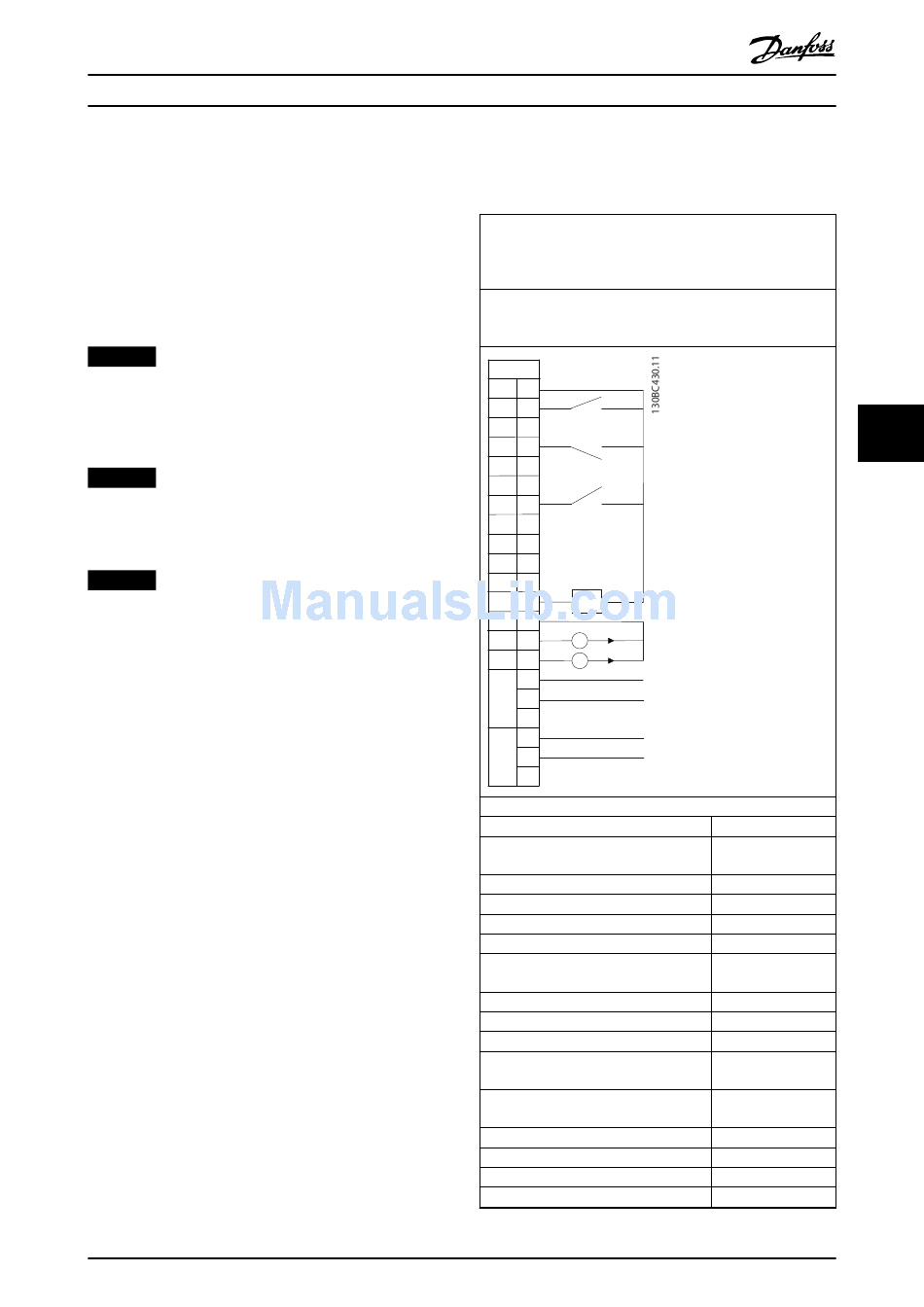

FC 360
+24V 12
DI1 18
DI2 19
DI3 27
DI4 29
DI5 3 1
DI6 3 2
DI7 3 3
COM 20
+10V 50
AI1 53
AI2 54
COM 55
AO1 4 2
AO2 4 5
1
R1 2
3
4
R2 5
6
Parameter settings
Parameter
Parameter 1-00 Configuration Mode
Parameter 1-03 Torque Characteristics
Parameter 3-00 Reference Range
Parameter 3-15 Reference 1 Source
Parameter 4-12 Motor Speed Low Limit [Hz] 30.0 Hz
Parameter 4-14 Motor Speed High Limit
[Hz]
Parameter 5-10 Terminal 18 Digital Input
Parameter 5-12 Terminal 27 Digital Input
Parameter 5-14 Terminal 32 Digital Input
Parameter 5-40 Function Relay
(Relay 1 Selection)
Parameter 5-40 Function Relay
(Relay 2 Selection)
Parameter 6-22 Terminal 54 Low Current
Parameter 6-23 Terminal 54 High Current
Parameter 6-29 Terminal 54 mode
Parameter 6-70 Terminal 45 Mode
Danfoss A/S © 03/2017 All rights reserved.
Start
Coast inverse
Jog
- +
4-20
mA
Option/value
[3] Process Closed
Loop
[1] Variable Torque
[0] Min- Max
[0] No Function
50.0 Hz
[8] Start
[2] Coast Inverse
[14] Jog
[5] Running
[9] Alarm
4.0 mA
20.0 mA
[0] Current Mode
[0] 0–20 mA
6 6
