Mechanical Installation
3.3.2 Horizontal Mounting
Enclosure size J1–J5 of VLT
can be installed in horizontal position.
3
3

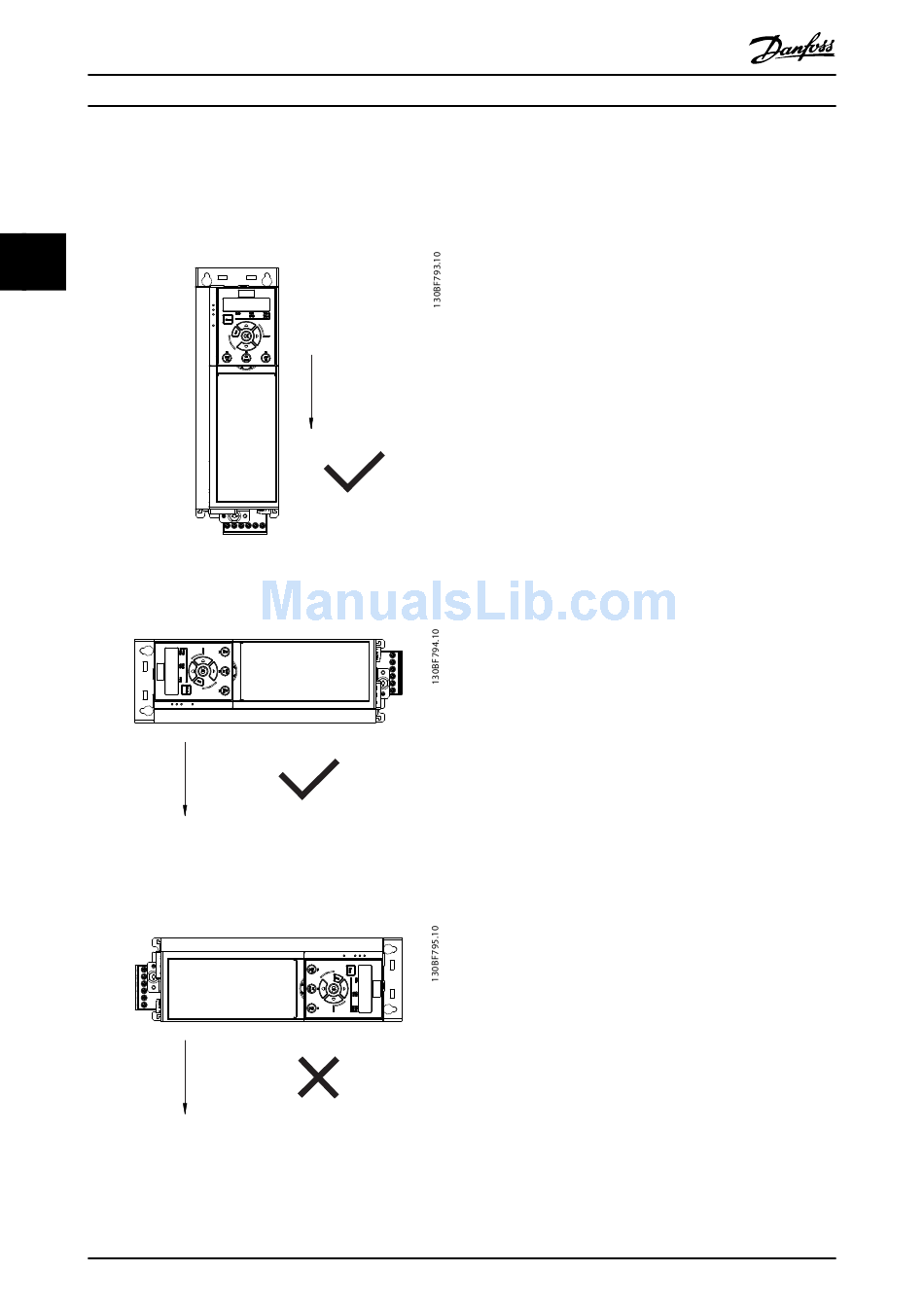

Illustration 3.4 Normal Mounting
Illustration 3.5 Correct Horizontal Mounting (Left Side
Downwards)
Illustration 3.6 Incorrect Horizontal Mounting (Right Side
Downwards)
12
VLT
®
AutomationDrive FC 360 units
G
G
G
Danfoss A/S © 03/2017 All rights reserved.
®
AutomationDrive FC 360
MG06A702
