Commissioning

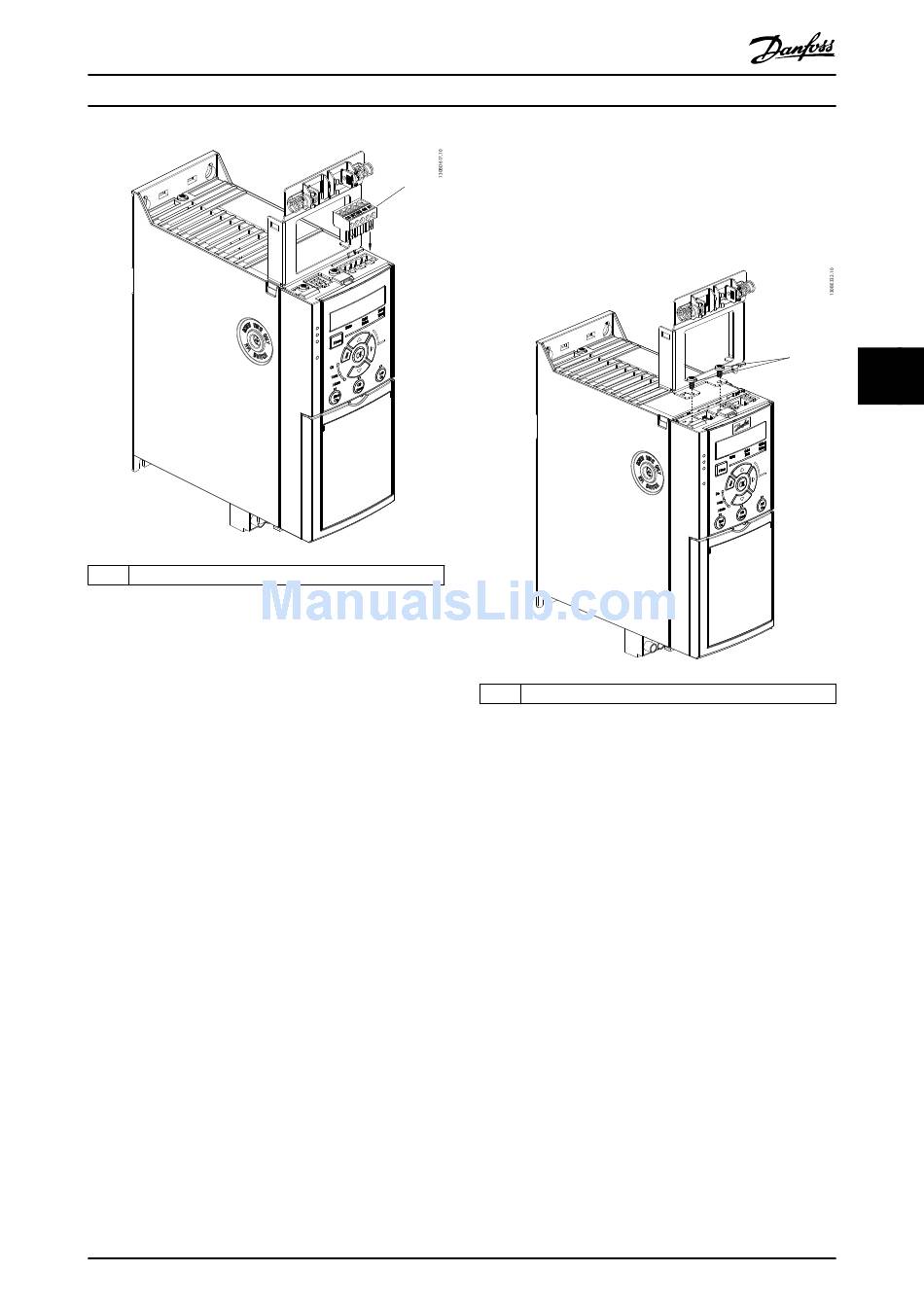

1 5-pin Connector
Illustration 5.14 Push the 5-pin Connector into Place

5.11 PROFINET

®
VLT AutomationDrive FC 360 frequency converters
support PROFINET. If PROFINET is needed,
•
Order a new frequency converter on which the
control cassette with PROFINET is pre-installed;
•
Order a control cassette with PROFINET (ordering
number: 132B0257) to replace the standard
control cassette on an existing frequency
converter. In this case, upgrade the software with
MCT-10 Set-up Software. See the service manual
for the instructions to upgrade the software.
In both cases, ensure that parameter 15-43 Software Version
is higher than 1.40.
In the package of each control cassette with PROFINET, a
decoupling kit is provided for better mechanical fixation.
Install the decoupling kit after the control casette is
installed.

MG06A702

Quick Guide
To install the decoupling kit:
1.
1
1 Screws
Illustration 5.15 Fasten the Plate with Screws
2.
Danfoss A/S © 03/2017 All rights reserved.
Place the decoupling plate on the control
cassette that is mounted on the frequency
converter, and fasten the plate using 2 screws
(supplied), as shown in Illustration 5.15.
Tightening torque 0.7–1.0 Nm (6.2–8.9 in-lb).
Push the Ethernet cable connectors into the slots
on the control cassette. Place Ethernet cables
between the spring loaded metal clamps, as
shown in Illustration 5.16, to establish mechanical
fixation and electrical contact between the cable
and ground.
1
5 5
35
