Robustel GoRugged R2000 Dual Quick Guide

Mount the Router

2.5
The R2000 Dual router supports for horizontal surface placement, DIN rail mounting and wall mounting.

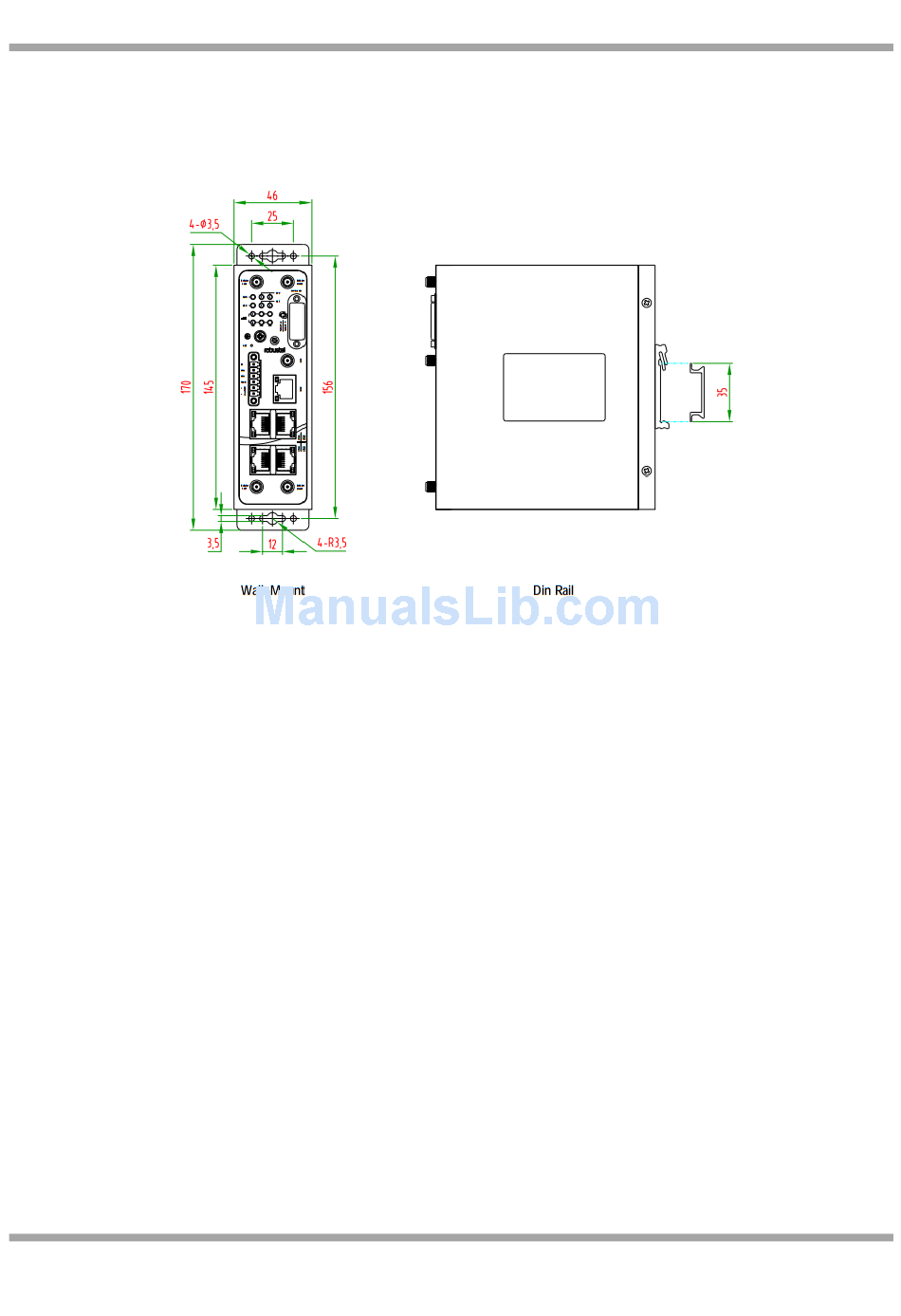

Two methods for mounting the router

1. Wall mounting:
Use 4 pcs of M2.5*4 cross recessed countersunk head screws to fix the router on the two wall mounting kits,
and then use 2 pcs of M3 drywall screws to mount the router associated with the wall mounting kit on the wall.
Note: Recommended torque for mounting is 0.5N.m and the maximum allowed is 0.7N.m.
2. DIN rail mounting:
Use 3 pcs of M3*6 cross recessed countersunk head screws to fix the router on the DIN rail, and then hang the
DIN rail on the bracket. It is necessary to choose the standard bracket.
Note: Recommended torque for mounting is 1.0N.m, and the maximum allowed is 1.2N.m.
When mounting the kit onto the DIN rail, make sure that its metal springs are orientated towards the top
of the DIN rail.
