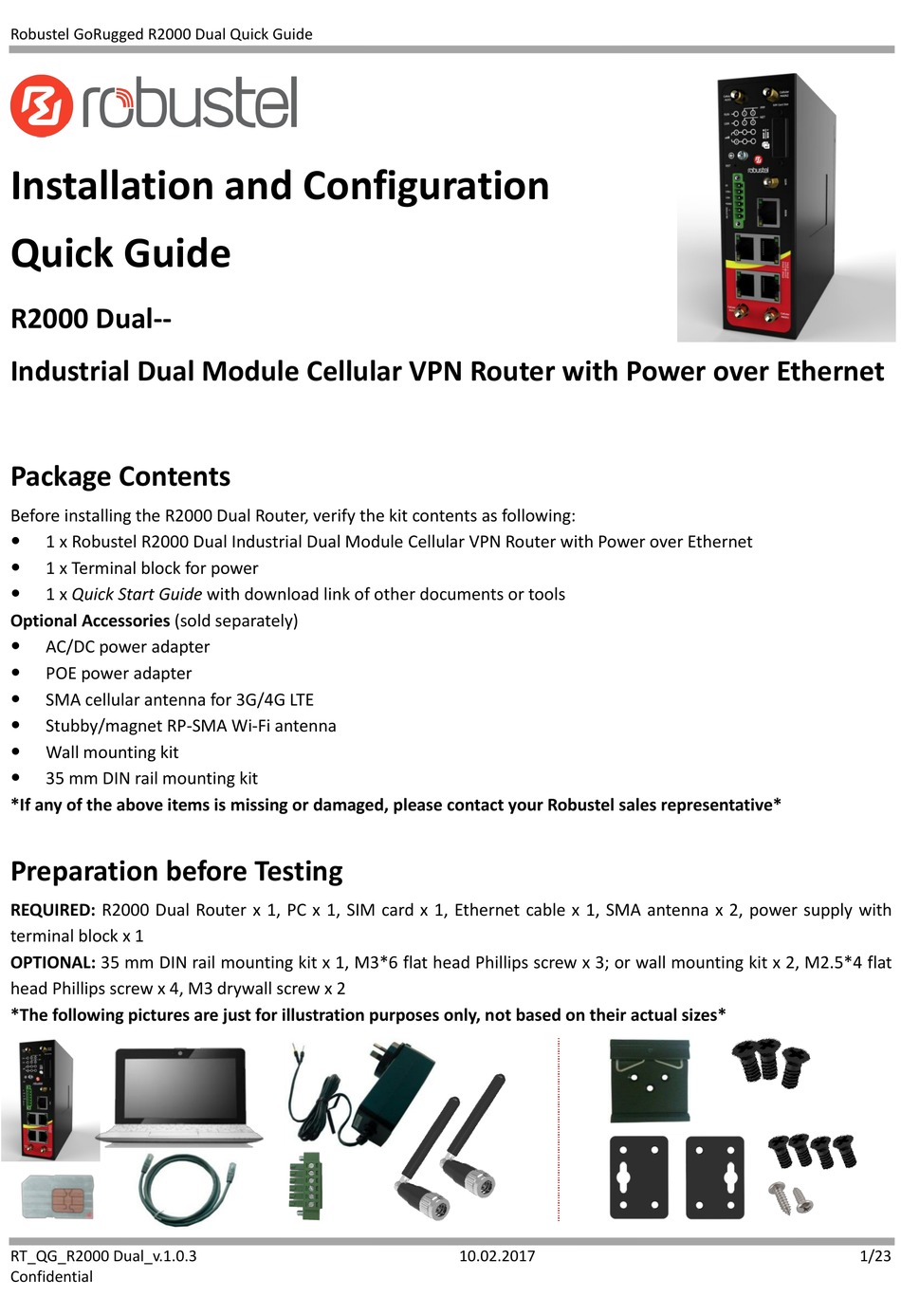

Robustel GoRugged R2000 Dual Quick Guide
Installation and Configuration
Quick Guide
R2000 Dual--

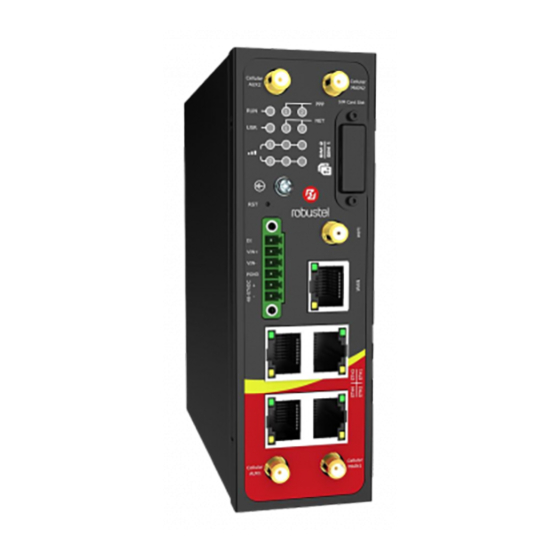

Industrial Dual Module Cellular VPN Router with Power over Ethernet
Package Contents
Before installing the R2000 Dual Router, verify the kit contents as following:
1 x Robustel R2000 Dual Industrial Dual Module Cellular VPN Router with Power over Ethernet
1 x Terminal block for power
1 x Quick Start Guide with download link of other documents or tools
Optional Accessories (sold separately)
AC/DC power adapter
POE power adapter
SMA cellular antenna for 3G/4G LTE
Stubby/magnet RP-SMA Wi-Fi antenna
Wall mounting kit
35 mm DIN rail mounting kit
*If any of the above items is missing or damaged, please contact your Robustel sales representative*
Preparation before Testing
REQUIRED: R2000 Dual Router x 1, PC x 1, SIM card x 1, Ethernet cable x 1, SMA antenna x 2, power supply with
terminal block x 1
OPTIONAL: 35 mm DIN rail mounting kit x 1, M3*6 flat head Phillips screw x 3; or wall mounting kit x 2, M2.5*4 flat
head Phillips screw x 4, M3 drywall screw x 2
*The following pictures are just for illustration purposes only, not based on their actual sizes*
RT_QG_R2000 Dual_v.1.0.3
Confidential
10.02.2017
1/23
Advertisement
Table of Contents
Related Manuals for Robustel GoRugged R2000 Dual
Summary of Contents for Robustel GoRugged R2000 Dual
- Page 1 35 mm DIN rail mounting kit *If any of the above items is missing or damaged, please contact your Robustel sales representative* Preparation before Testing REQUIRED: R2000 Dual Router x 1, PC x 1, SIM card x 1, Ethernet cable x 1, SMA antenna x 2, power supply with terminal block x 1 OPTIONAL: 35 mm DIN rail mounting kit x 1, M3*6 flat head Phillips screw x 3;...
-
Page 2: Environmental Requirements
Robustel GoRugged R2000 Dual Quick Guide Environmental Requirements Power input: 9 to 48V DC Power consumption: 100 mA@12 V in idle state 800 mA (peak)@12 V in communication state Operating temperature: -40 to 70°C Relative humidity: 5 to 95% RH RT_QG_R2000 Dual_v.1.0.3... -
Page 3: Chapter 1 Hardware Introduction
Robustel GoRugged R2000 Dual Quick Guide Chapter 1 Hardware Introduction 1.1 Overview 1.2 Dimensions RT_QG_R2000 Dual_v.1.0.3 10.02.2017 3/23 Confidential... - Page 4 Robustel GoRugged R2000 Dual Quick Guide 1.3 LEDs Name Color State Description Green On, 1/2 sec blink Router is ready. On, 1 sec blink Router is booting. Router is powered off. Green LED 1 is on SIM1 PPP connection is working.
-
Page 5: Reset Button
Robustel GoRugged R2000 Dual Quick Guide Need to enter the PUK code Registration failed Something wrong happened in the module 1.4 Reset Button Function Operation Reboot Press and hold the Reset button for at least 2~7 seconds under the operating status. -
Page 6: Chapter 2 Hardware Installation
Robustel GoRugged R2000 Dual Quick Guide Chapter 2 Hardware Installation 2.1 Insert or Remove SIM Card Insert SIM Card Make sure the router is powered off. To remove slot cover, loosen the screws associated with the cover by using a screwdriver and then find the SIM card slot. -
Page 7: Attach External Antenna (Sma Type)
Robustel GoRugged R2000 Dual Quick Guide 2.2 Attach External Antenna (SMA Type) Connect the SMA external antenna connector to the router’s antenna interface and twist tightly. Make sure the antenna is within the correct frequency range provided by the operator and with 50 Ohm impedance. -
Page 8: Ground The Router
Robustel GoRugged R2000 Dual Quick Guide 2.4 Ground the Router Router grounding helps prevent the noise effect due to electromagnetic interference (EMI). Connect the router to the site ground wire by the ground screw before powering on. Note: This product is appropriate to be mounted on a sound grounded device surface, such as a metal panel. -
Page 9: Connect The Router To The Pc
Robustel GoRugged R2000 Dual Quick Guide 2.6 Connect the Router to the PC Connect the router’s Ethernet port (eth1/eth2/eth3/eth4) to a PC via a standard cross-over cable. 2.7 Power Supply R2000 Dual Router supports reverse polarity protection, but always refers to the figure below to connect the power adapter correctly. - Page 10 Robustel GoRugged R2000 Dual Quick Guide R2000 Dual Router also supports POE feature. Please refer to the figure below to connect the power adapter correctly. Note: The range of power voltage is 48 to 57V DC. RT_QG_R2000 Dual_v.1.0.3 10.02.2017 10/23...
-
Page 11: Chapter 3 Initial Configuration
Robustel GoRugged R2000 Dual Quick Guide Chapter 3 Initial Configuration The router can be configured through your web browser that including IE 8.0 or above, Chrome and Firefox, etc. A web browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me/Vista/7/8, etc. - Page 12 Robustel GoRugged R2000 Dual Quick Guide 2. Click Properties in the window of Local Area Connection Status. 3. Choose Internet Protocol Version (TCP/IPv4) and click Properties. RT_QG_R2000 Dual_v.1.0.3 10.02.2017 12/23 Confidential...
- Page 13 Robustel GoRugged R2000 Dual Quick Guide 4. Two ways for configuring the IP address of PC: Obtain an IP address automatically: Use the following IP address (configured a static IP address manually within the same subnet of R2000 Dual Router): 5.
-
Page 14: Login The Router
Robustel GoRugged R2000 Dual Quick Guide 3.2 Login the Router Before configuring your router, you need to know the following default settings. Item Description Username admin Password admin Eth0 DHCP Eth1 192.168.0.1/255.255.255.0, lan0, DHCP Server Enabled. Eth2 192.168.0.1/255.255.255.0, lan0, DHCP Server Enabled. - Page 15 Robustel GoRugged R2000 Dual Quick Guide The home page of the R2000 Lite router’s web interface is displayed, for example. Using the original password to log in the router, the page will pop up the following tab click to close the pop-up tab.
- Page 16 Robustel GoRugged R2000 Dual Quick Guide Note: The steps of how to modify configuration are as bellow: Modify in one page; Click under this page; Modify in another page; Click under this page; Complete all modification; Click 3.3 Configure the Cellular ...
- Page 17 Robustel GoRugged R2000 Dual Quick Guide Enable Automatic APN Selection, the window is displayed as below: Enable Ping, the window is displayed as below: The modifications will take effect after clicking Submit > Save & Apply. RT_QG_R2000 Dual_v.1.0.3 10.02.2017 17/23...
-
Page 18: Configure The Ip Address
Robustel GoRugged R2000 Dual Quick Guide Check the Cellular Connection Status Click Interface > Cellular > Status, and click the row of status, then the details status information will be displayed under the row. 3.4 Configure the IP Address ... -
Page 19: Configure Lan1
Robustel GoRugged R2000 Dual Quick Guide Go to Interface > LAN > LAN > Network Settings, for example: Click the edit button of the current LAN port, modify the IP Address and Netmask of lan0. And then click Submit >... - Page 20 Robustel GoRugged R2000 Dual Quick Guide Go to Interface > LAN, and click the add button: Select the interface as lan1, and configure the IP Address and Netmask of lan1. Click Submit > Save & Apply to make the modification take effect.
-
Page 21: Configure Wan
Robustel GoRugged R2000 Dual Quick Guide Configure WAN Go to Interface > Link Manager > General Settings, and click the edit button of WAN to enter the link configuration window. Configure the WAN interface parameters such as the Connection Type as below: Enable Ping, the window is displayed as below: RT_QG_R2000 Dual_v.1.0.3... - Page 22 Robustel GoRugged R2000 Dual Quick Guide RT_QG_R2000 Dual_v.1.0.3 10.02.2017 22/23 Confidential...
- Page 23 Robustel GoRugged R2000 Dual Quick Guide Chapter 4 FAQ Connected to the router successfully and obtained the IP address automatically, but failed to login the webpage. Check the cable connection. Check whether the green LED of the current connected port is solid or blinking.
