Robustel R2000 Dual Hardware Installation Manual

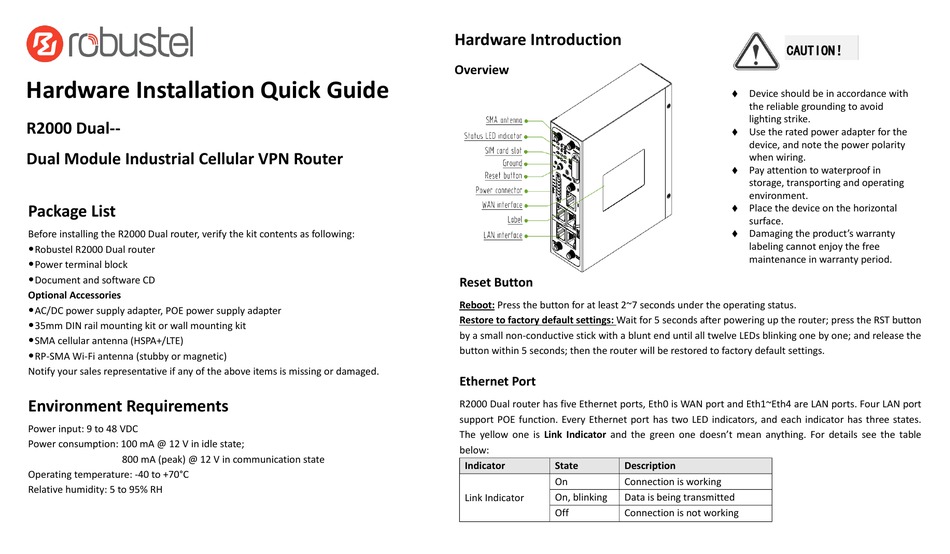

Hardware Installation Quick Guide
R2000 Dual--
Dual Module Industrial Cellular VPN Router

Package List

Before installing the R2000 Dual router, verify the kit contents as following:
Robustel R2000 Dual router
Power terminal block
Document and software CD
Optional Accessories
AC/DC power supply adapter, POE power supply adapter
35mm DIN rail mounting kit or wall mounting kit
SMA cellular antenna (HSPA+/LTE)
RP-SMA Wi-Fi antenna (stubby or magnetic)
Notify your sales representative if any of the above items is missing or damaged.

Environment Requirements

Power input: 9 to 48 VDC
Power consumption: 100 mA @ 12 V in idle state;
800 mA (peak) @ 12 V in communication state
Operating temperature: -40 to +70°C
Relative humidity: 5 to 95% RH

Hardware Introduction

Overview
Reset Button
Reboot: Press the button for at least 2~7 seconds under the operating status.
Restore to factory default settings: Wait for 5 seconds after powering up the router; press the RST button
by a small non-conductive stick with a blunt end until all twelve LEDs blinking one by one; and release the
button within 5 seconds; then the router will be restored to factory default settings.
Ethernet Port
R2000 Dual router has five Ethernet ports, Eth0 is WAN port and Eth1~Eth4 are LAN ports. Four LAN port
support POE function. Every Ethernet port has two LED indicators, and each indicator has three states.
The yellow one is Link Indicator and the green one doesn't mean anything. For details see the table
below:
Indicator State Description
On Connection is working
Link Indicator On, blinking Data is being transmitted
Off Connection is not working
CAUTION！
 Device should be in accordance with
the reliable grounding to avoid
lighting strike.
 Use the rated power adapter for the
device, and note the power polarity
when wiring.
 Pay attention to waterproof in
storage, transporting and operating
environment.
 Place the device on the horizontal
surface.
 Damaging the product's warranty
labeling cannot enjoy the free
maintenance in warranty period.
